Home >> Chevrolet >> 2004 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine View >> Lower Left Front of Engine

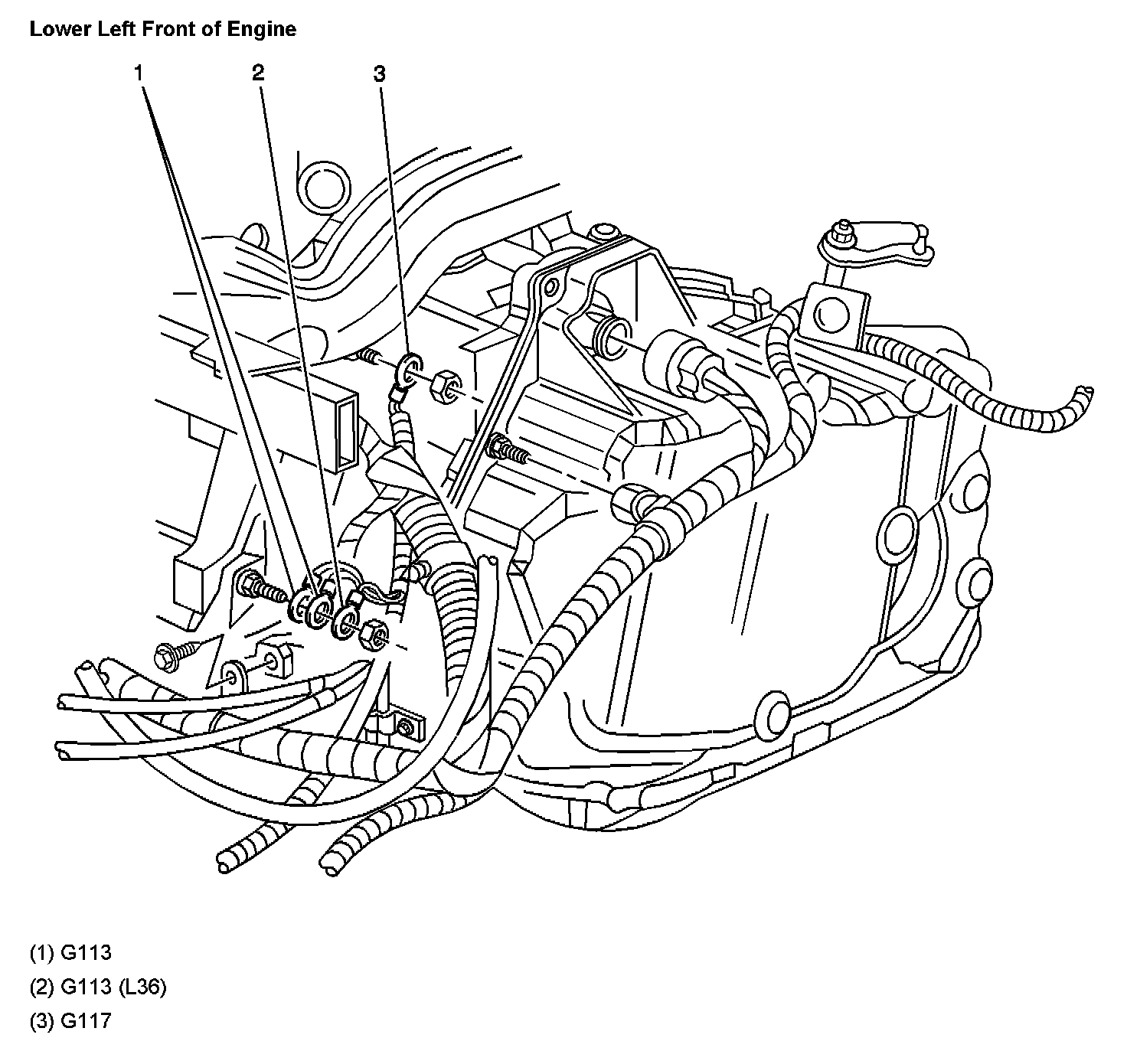

Lower Left Front of Engine

Lower Left Front Of Engine:
