Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
Steering Gear

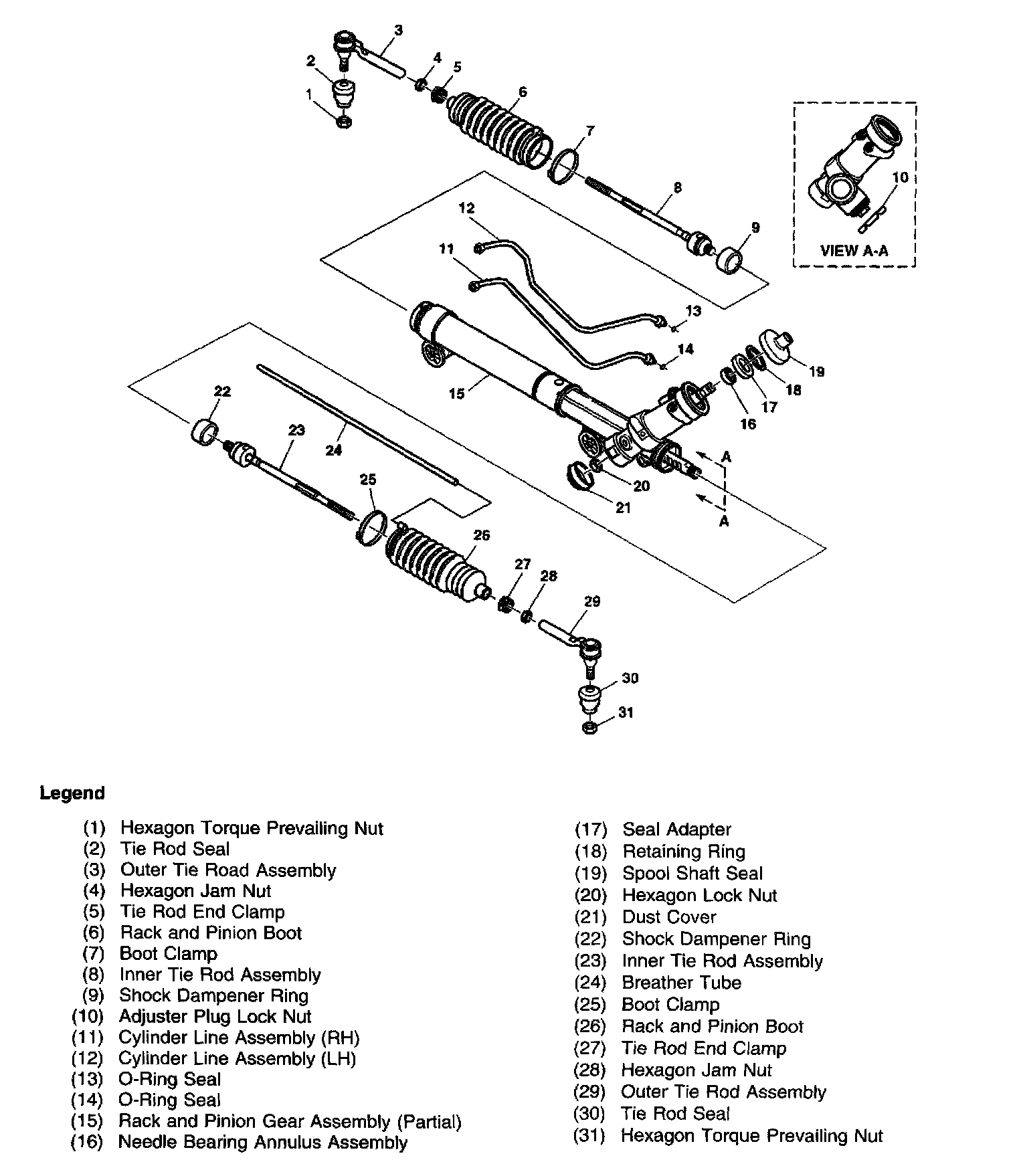

Power Steering Gear Disassembled View (Rack and Pinion):
