Steering Column - Column Shift

Steering Column Disassembled View (Column Shift)

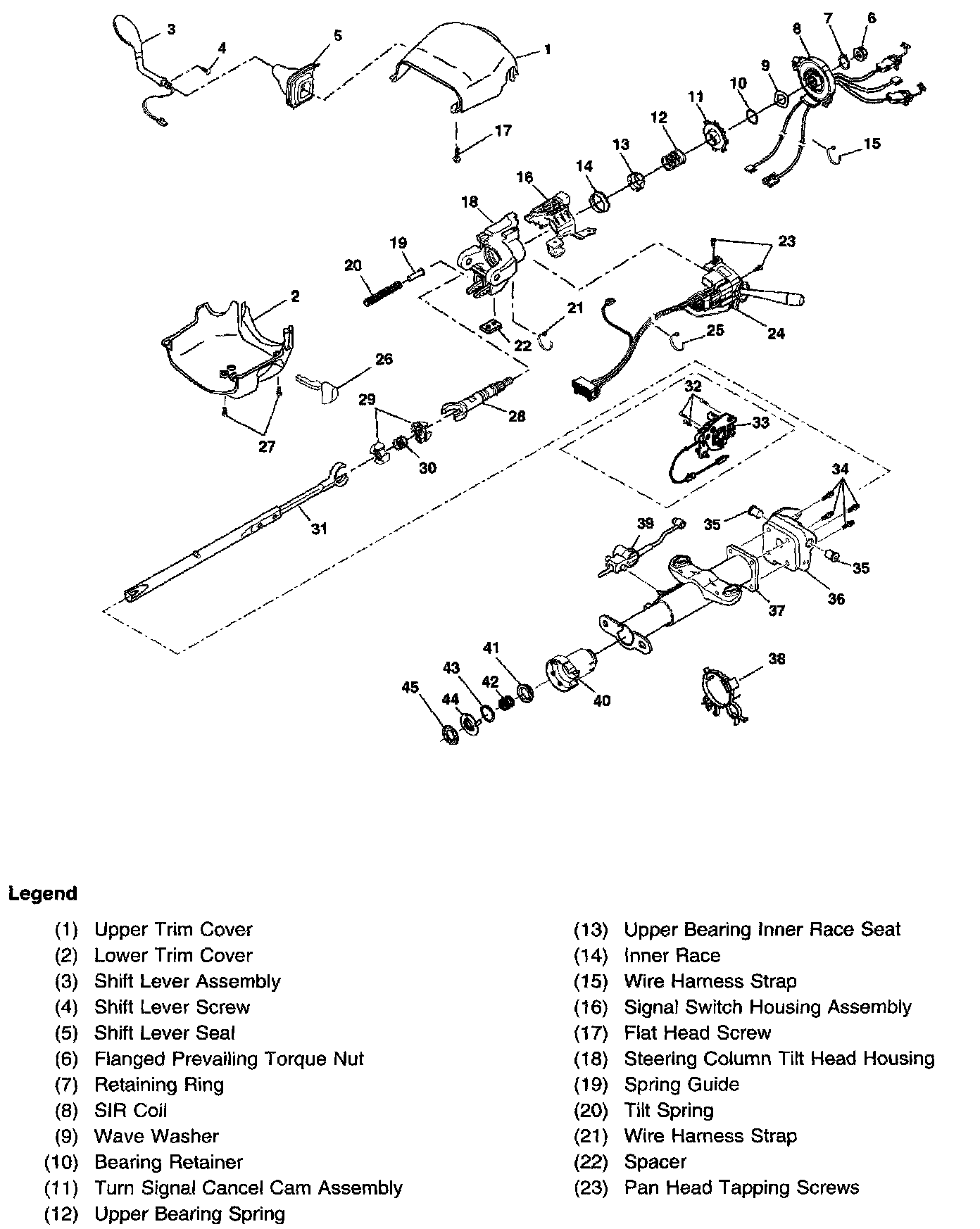

Part 1 Of 2:

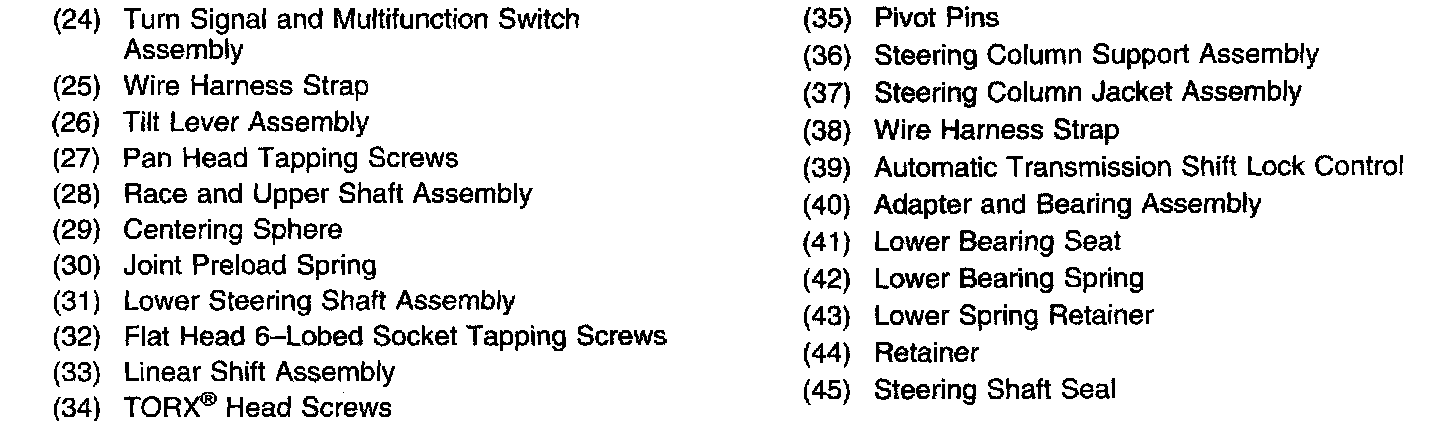

Part 2 Of 2:





Tilt Steering Column
