Chevrolet
>>
2004
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Case Cover Assembly

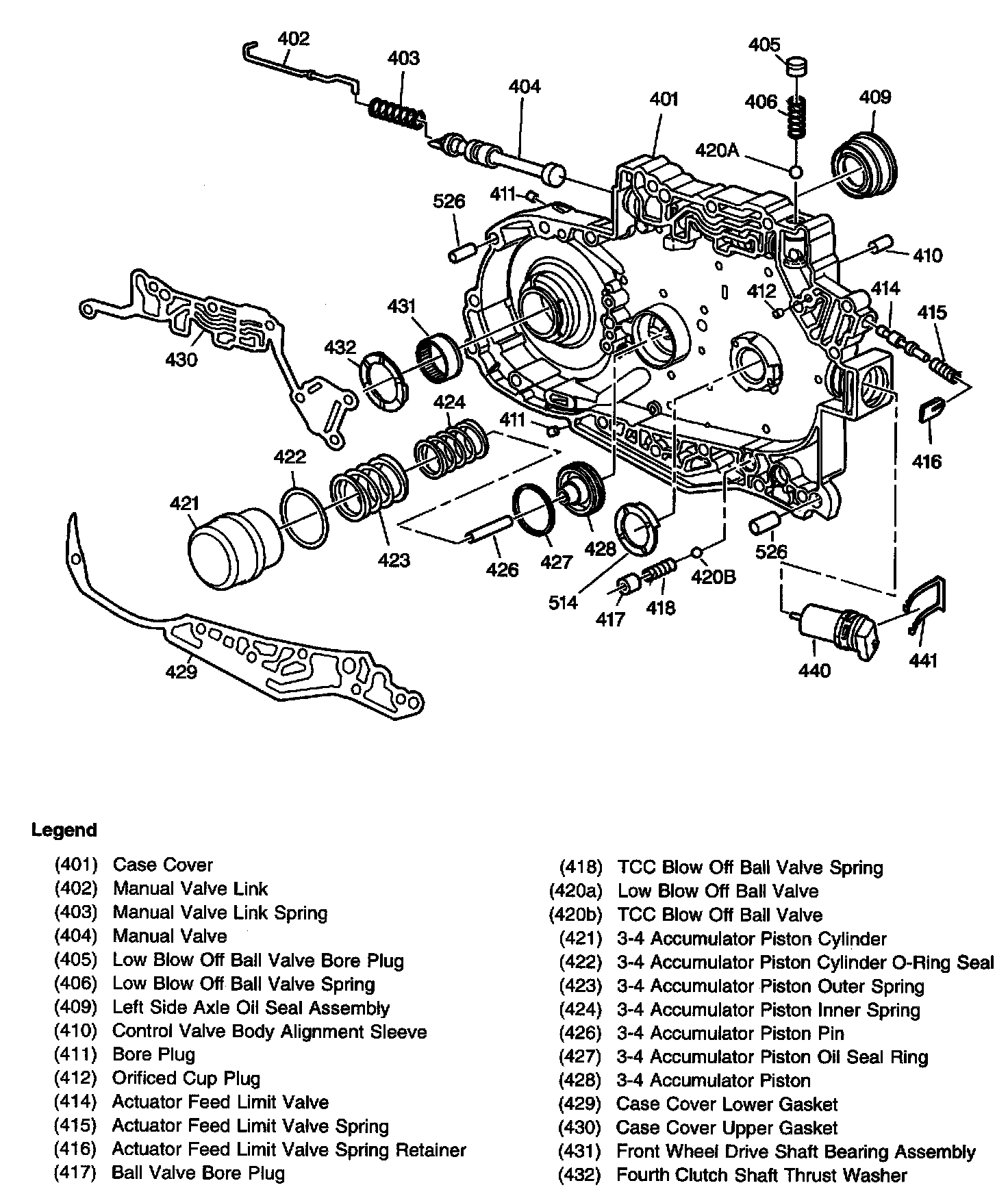

Case Cover Assembly
Case Cover Assembly (continues):
Case Cover Assembly:
