Power Window Switch
>>
Window Switch - Front Passenger
Window Switch - Front Passenger

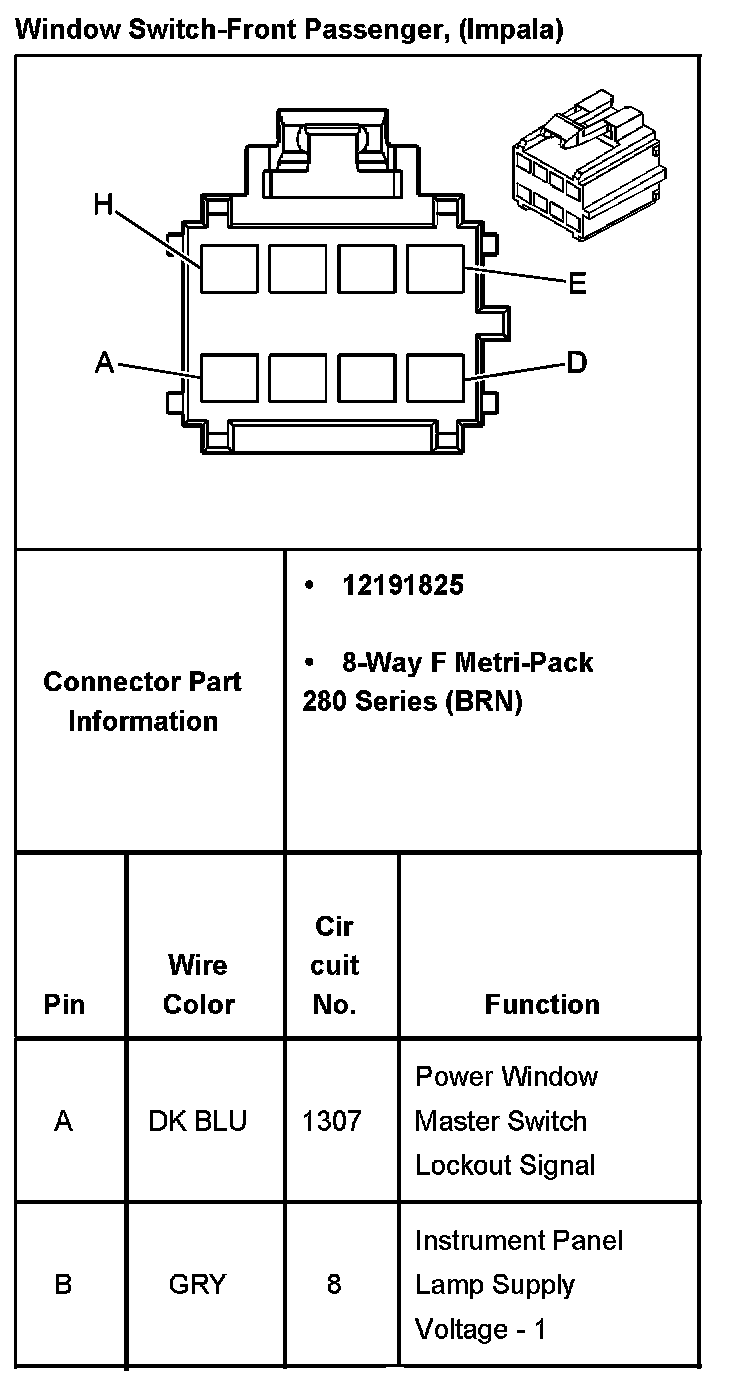

Window Switch-Front Passenger Part 1:

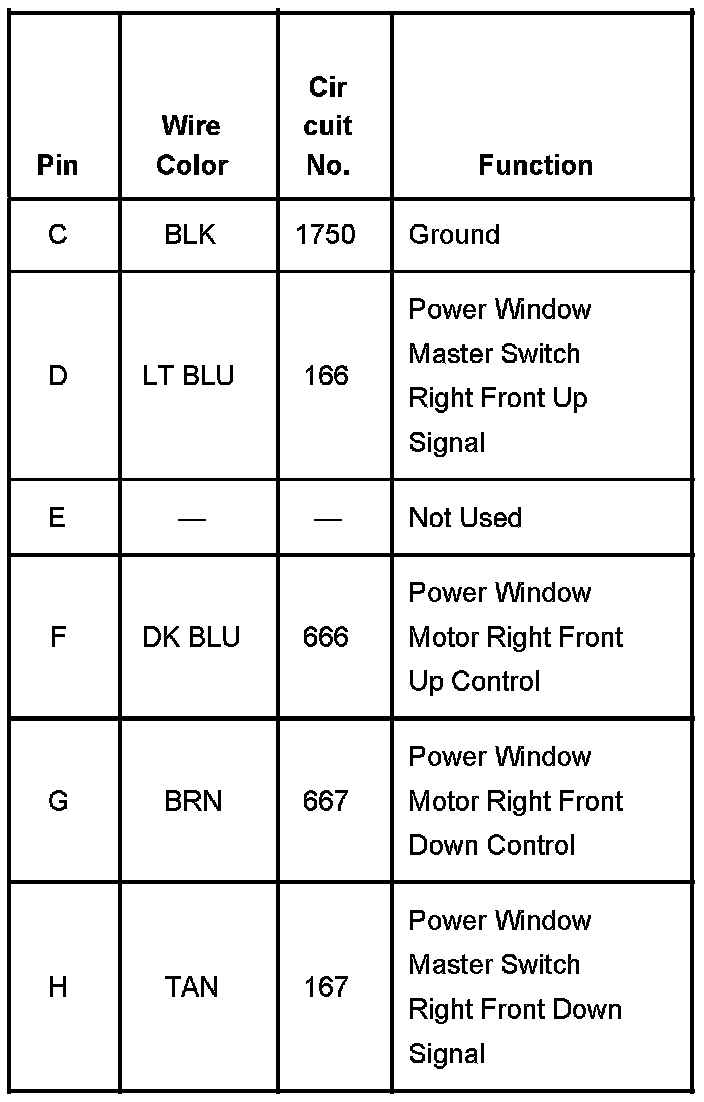

Window Switch-Front Passenger Part 2:
