Power Window Motor
Power Window Motor

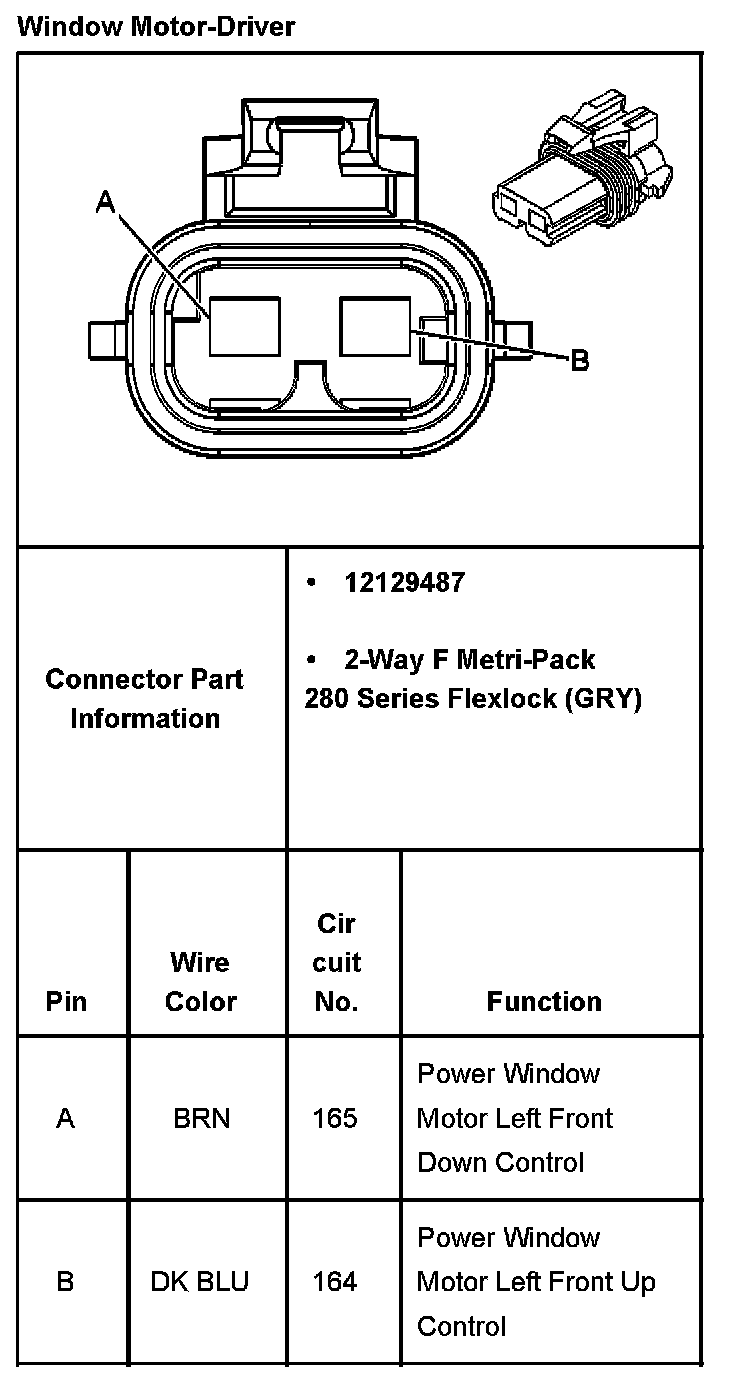

Window Motor-Driver:

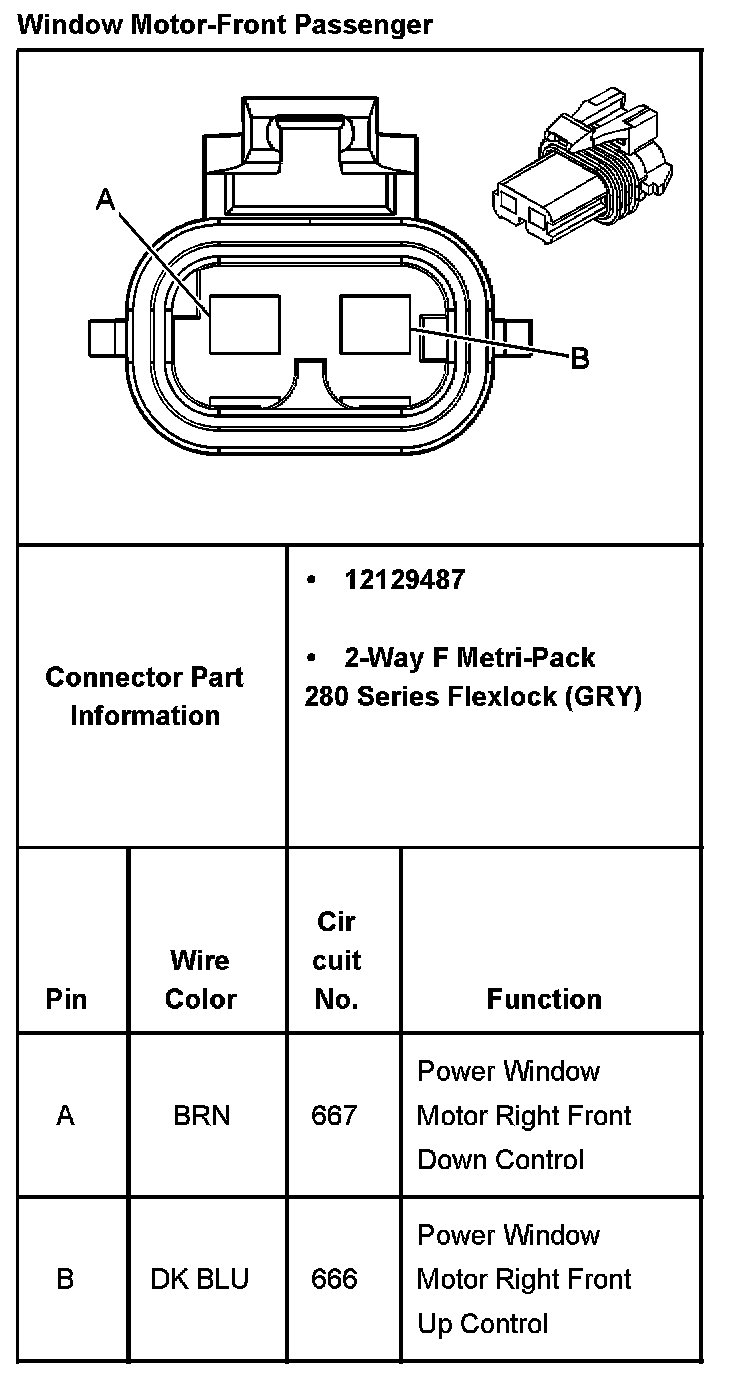

Window Motor-Front Passenger:

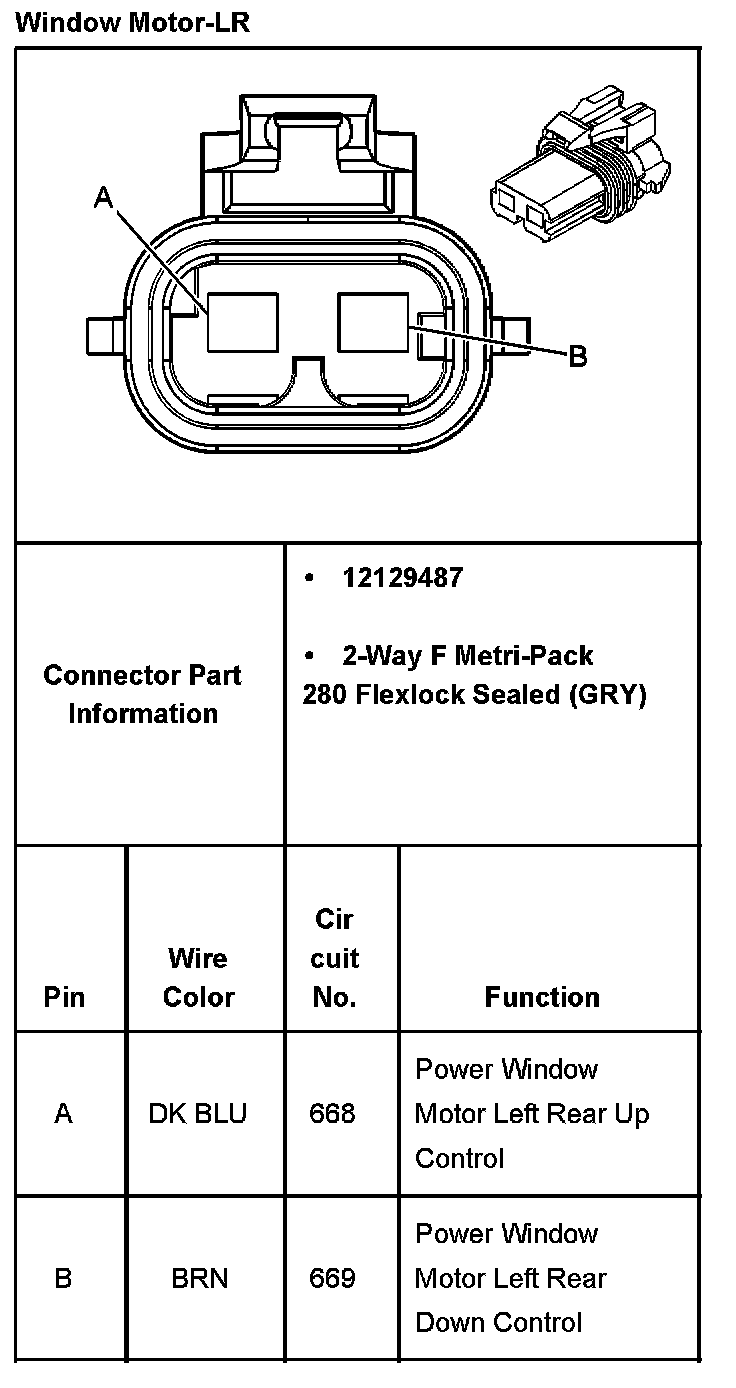

Window Motor-LR:

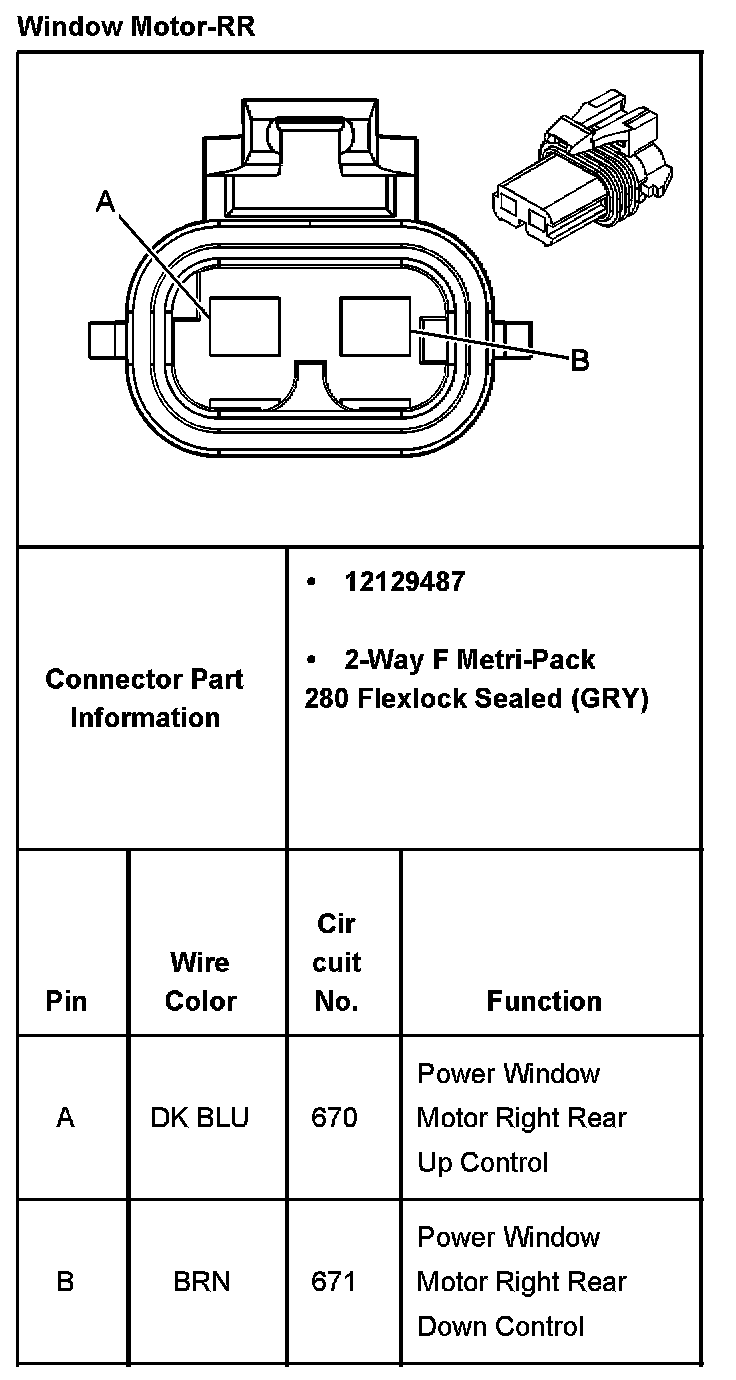

Window Motor-RR:
