Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

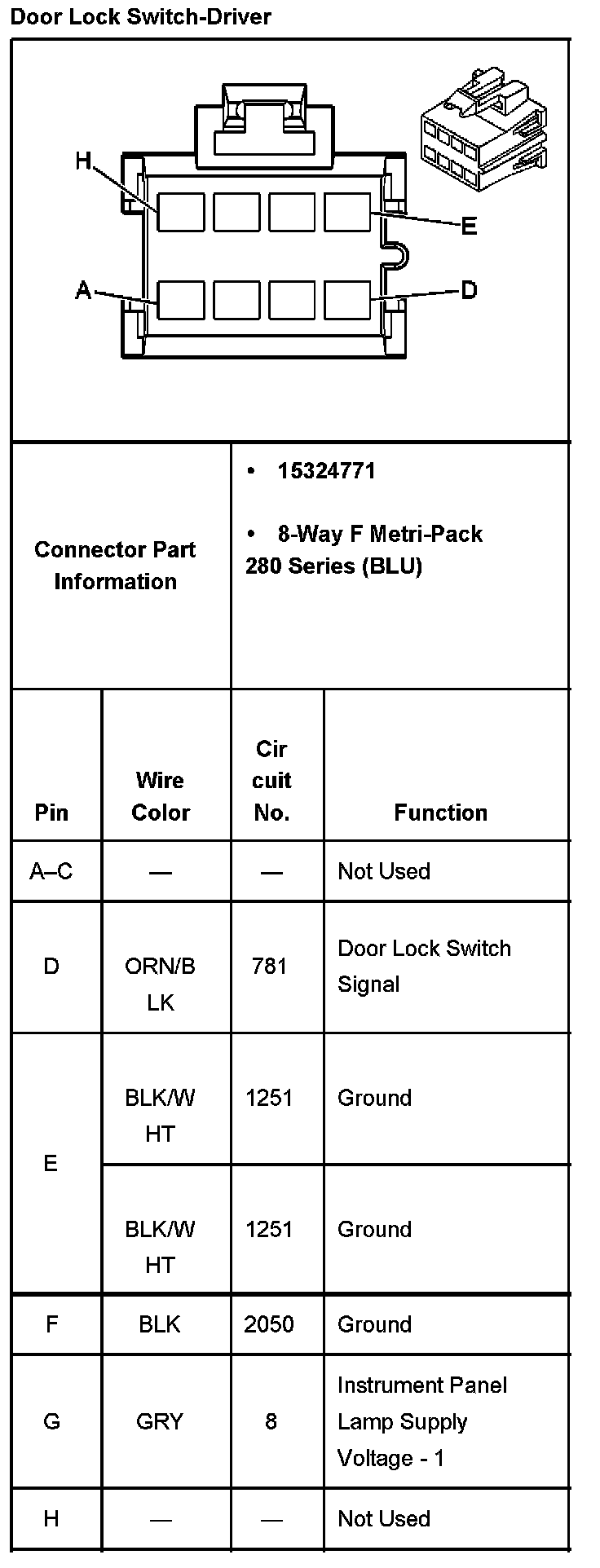

Door Lock Switch-Driver:

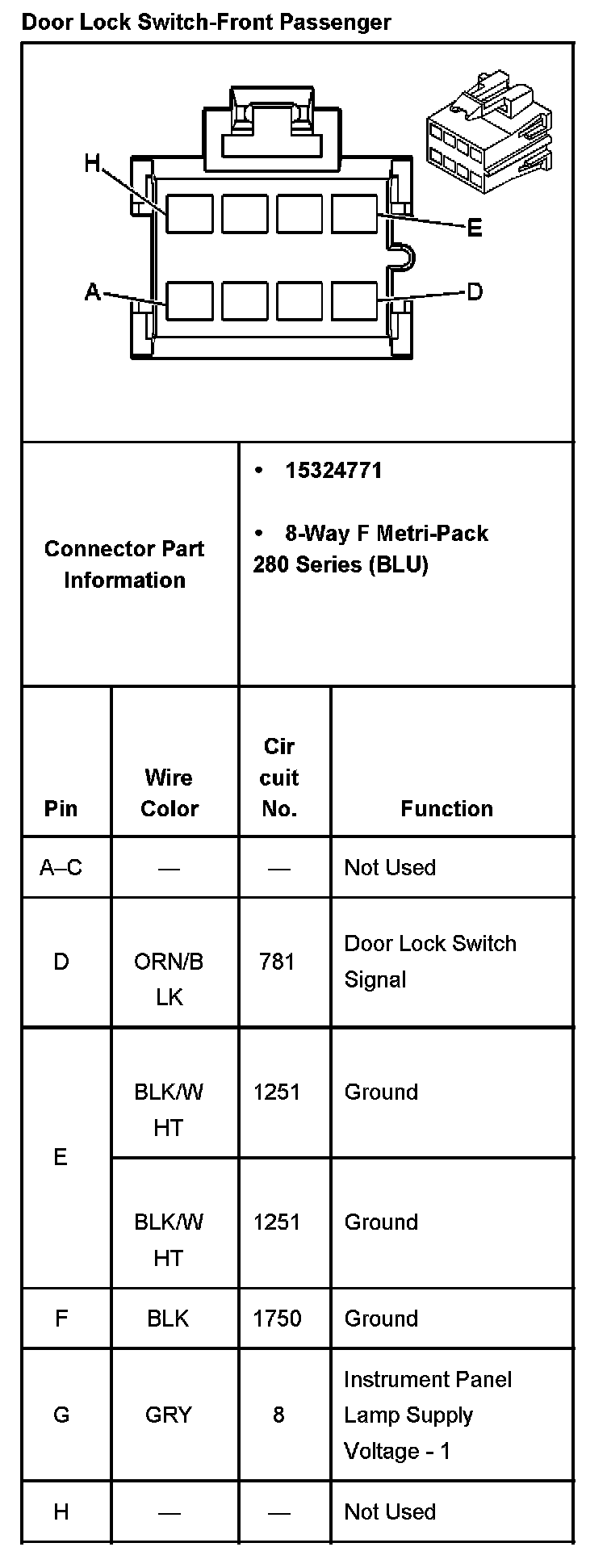

Door Lock Switch-Front Passenger:
