Driver/Vehicle Information Display
Driver/Vehicle Information Display

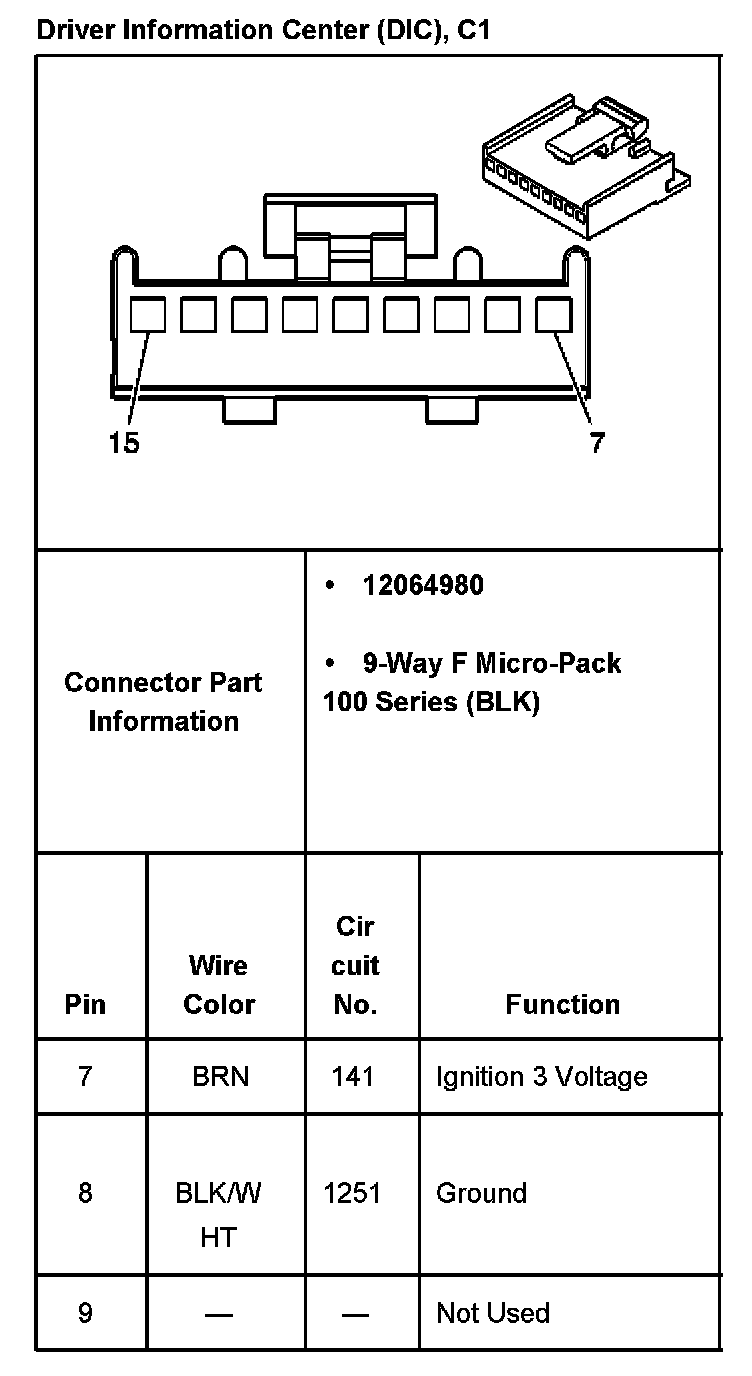

Driver Information Center (DIC), C1 Part 1:

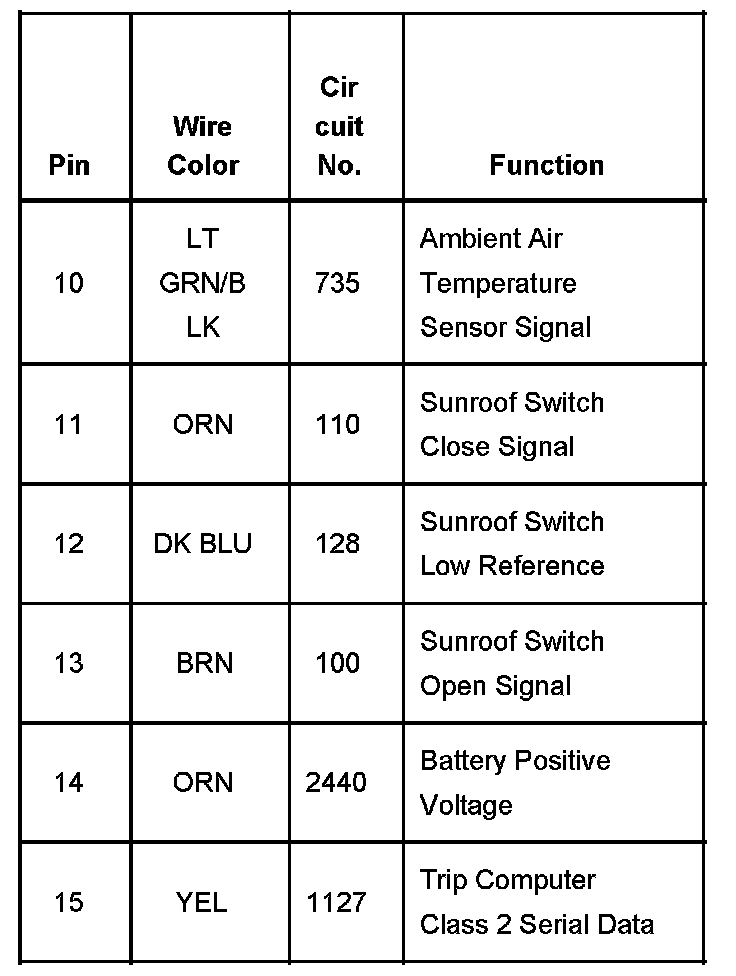

Driver Information Center (DIC), C1 Part 2:

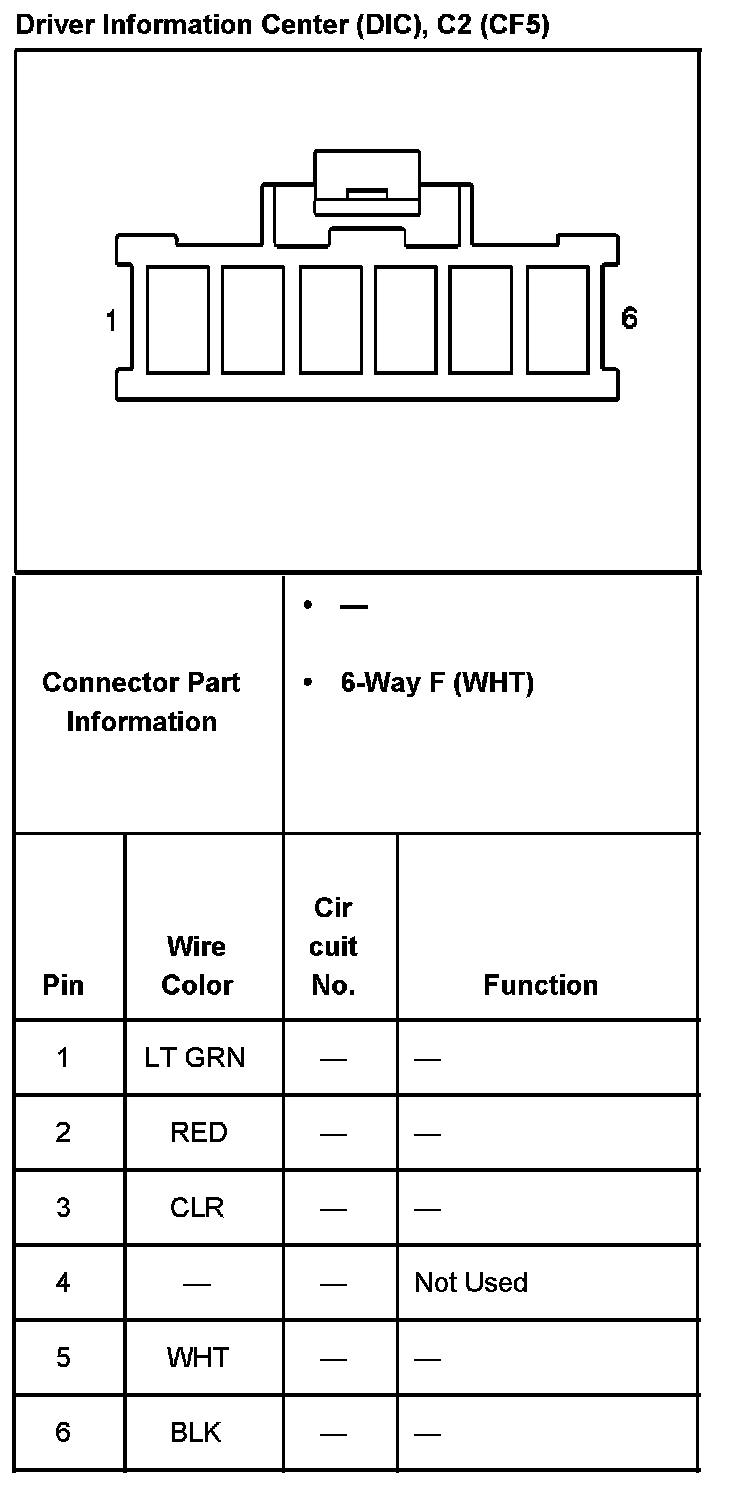

Driver Information Center (DIC), C2 (With RPO Code CF5):
