Transmission Temperature Sensor/Switch, A/T

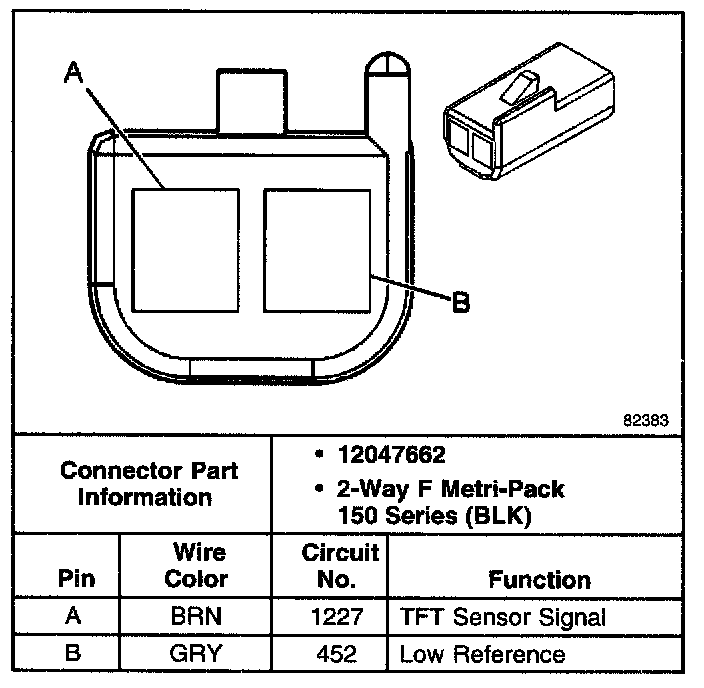

Transmission Fluid Temperature Sensor Connector Wiring Harness Side:
