Home >> Chevrolet >> 2004 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module (EBCM)

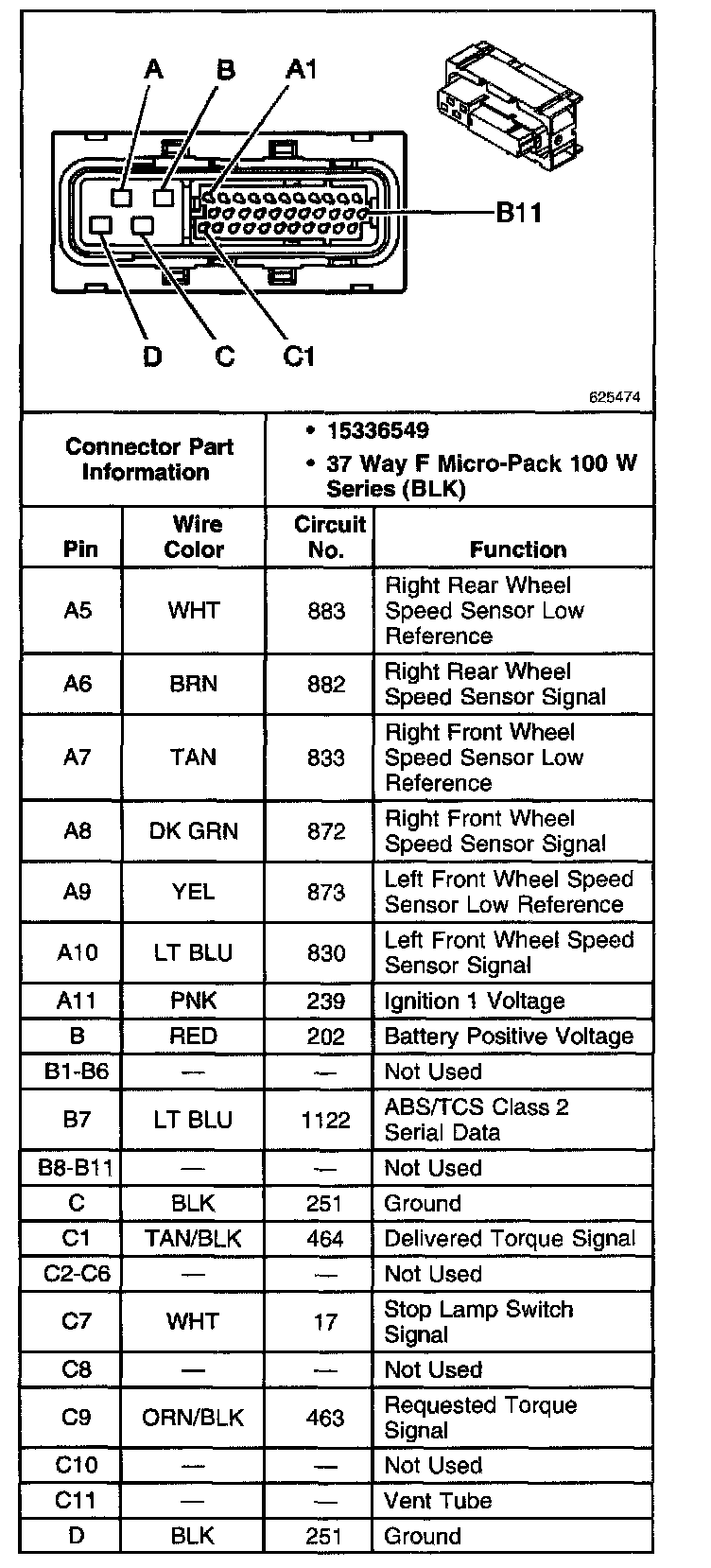

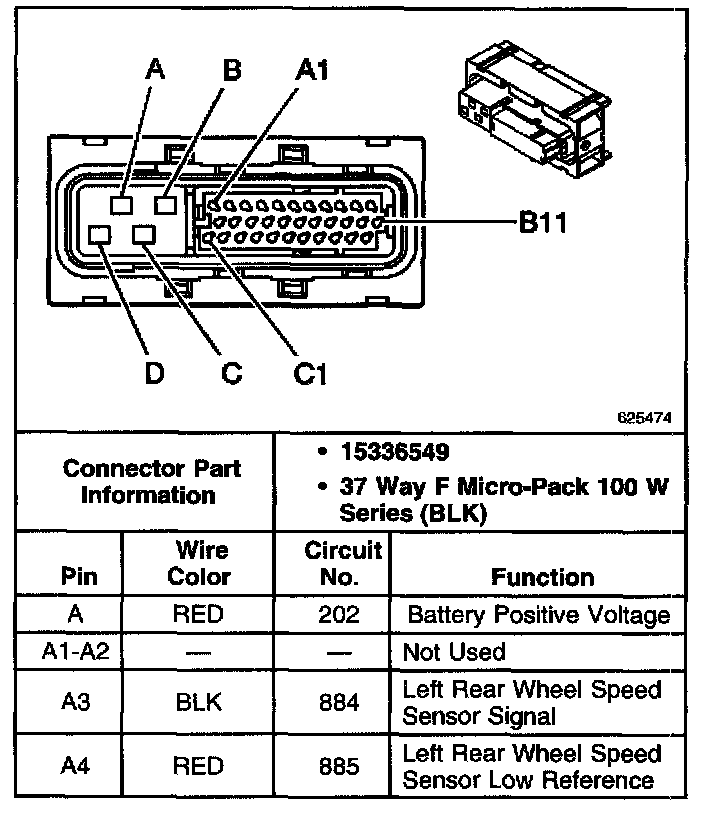

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)





Part 1 of 2





Part 2 of 2
