Home >> Chevrolet >> 2004 >> Express 2500 AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold/Upper Engine

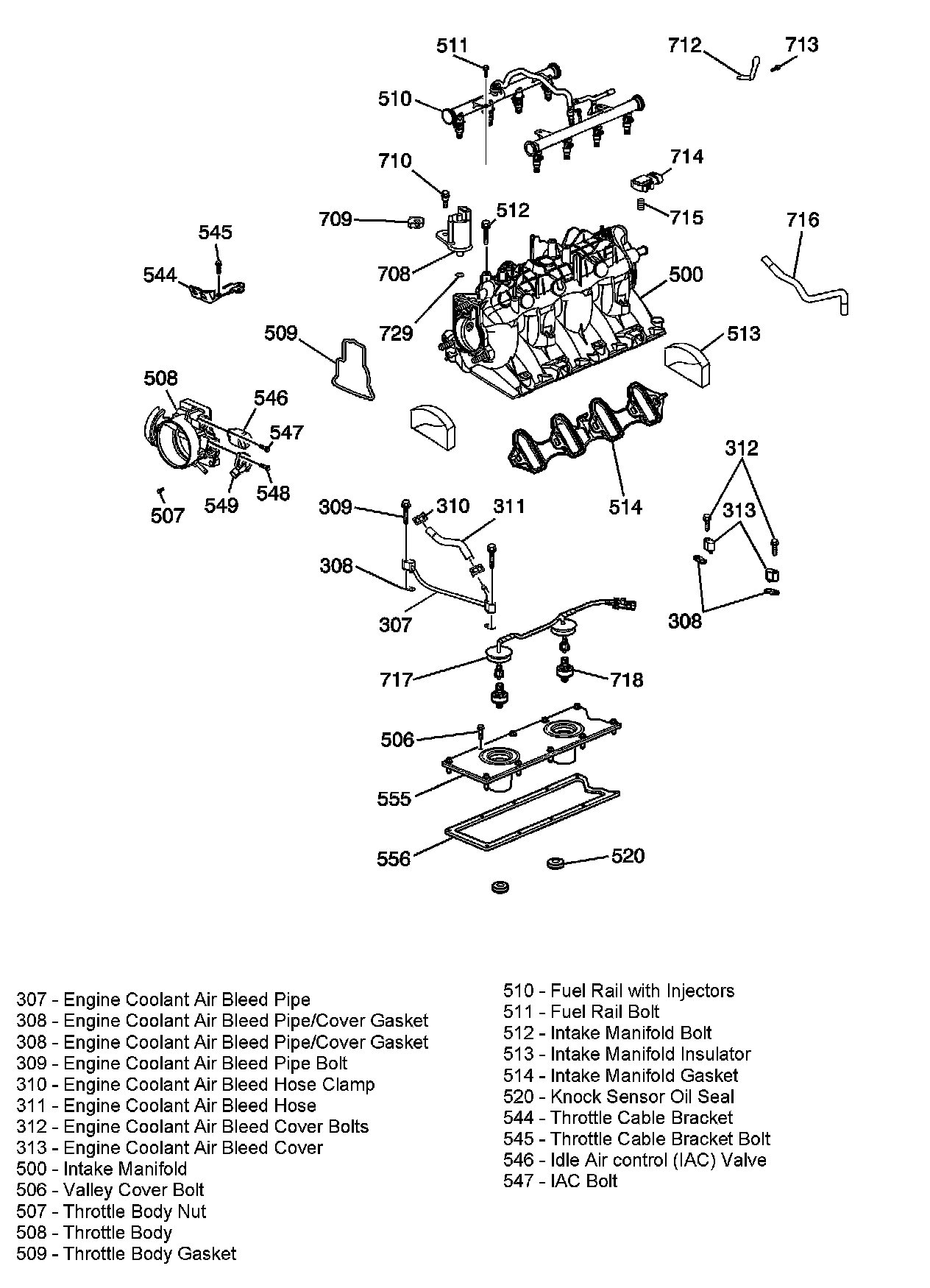

Intake Manifold/Upper Engine
