Air Flow Meter/Sensor
Air Flow Meter/Sensor

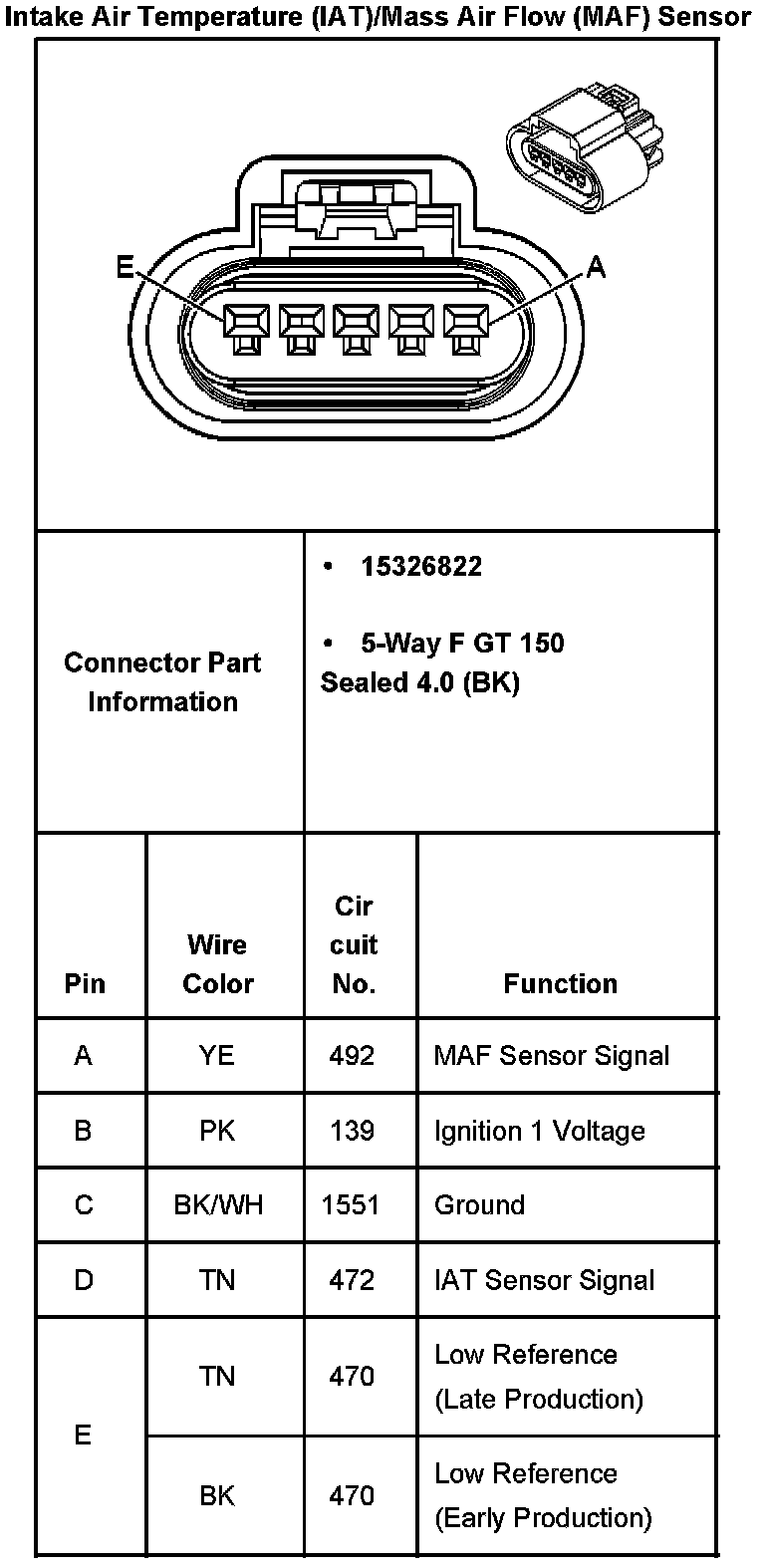

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor:
