Timing Component Alignment Marks: Locations

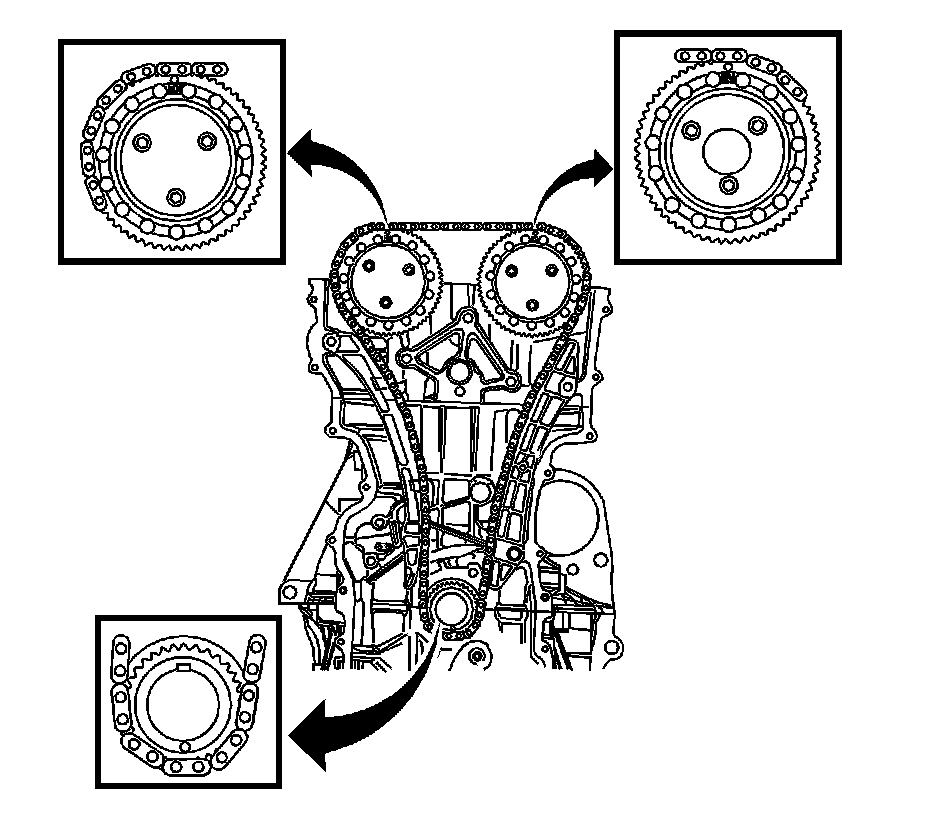

Make sure the 3 timing marks on the timing chain are exactly aligned with the marks on the exhaust camshaft sprocket, intake camshaft sprocket, and crankshaft sprocket respectively.
Make sure the 3 timing marks on the timing chain are exactly aligned with the marks on the exhaust camshaft sprocket, intake camshaft sprocket, and crankshaft sprocket respectively.
