Component Locator

Component Locator

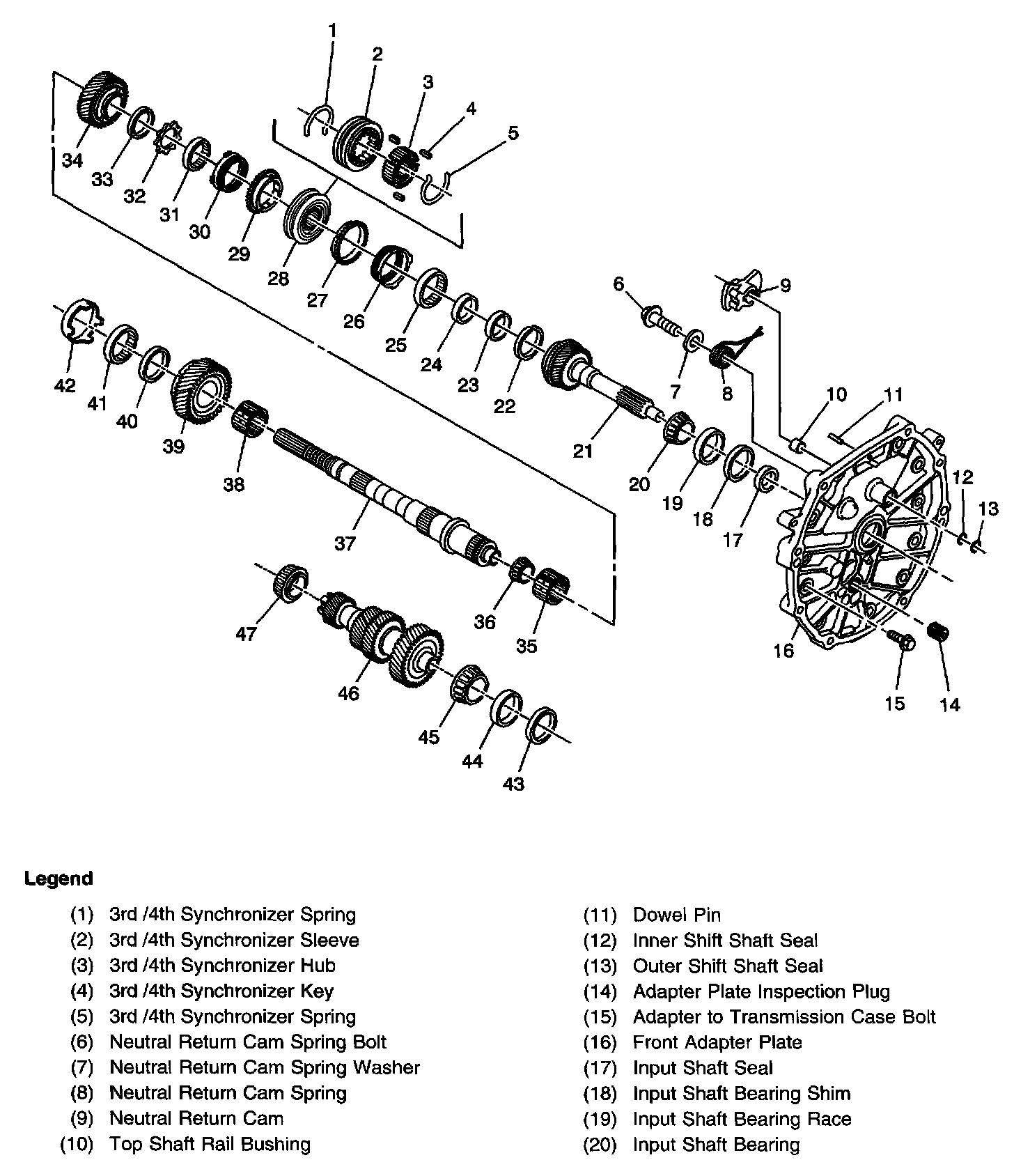

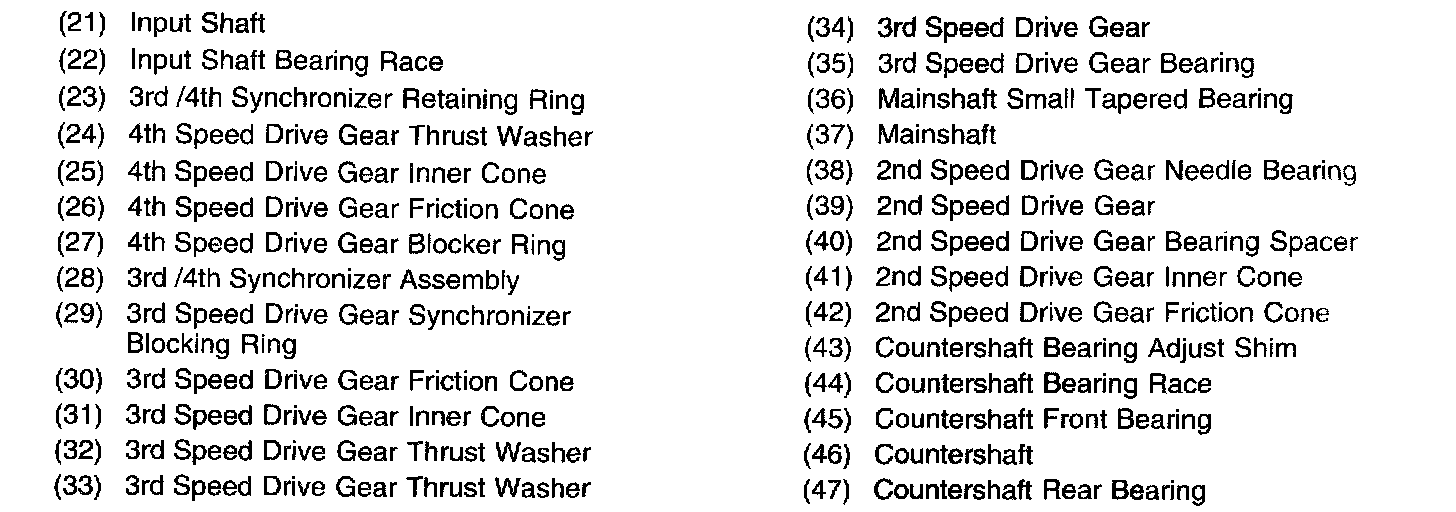

Adapter Plate and Gears

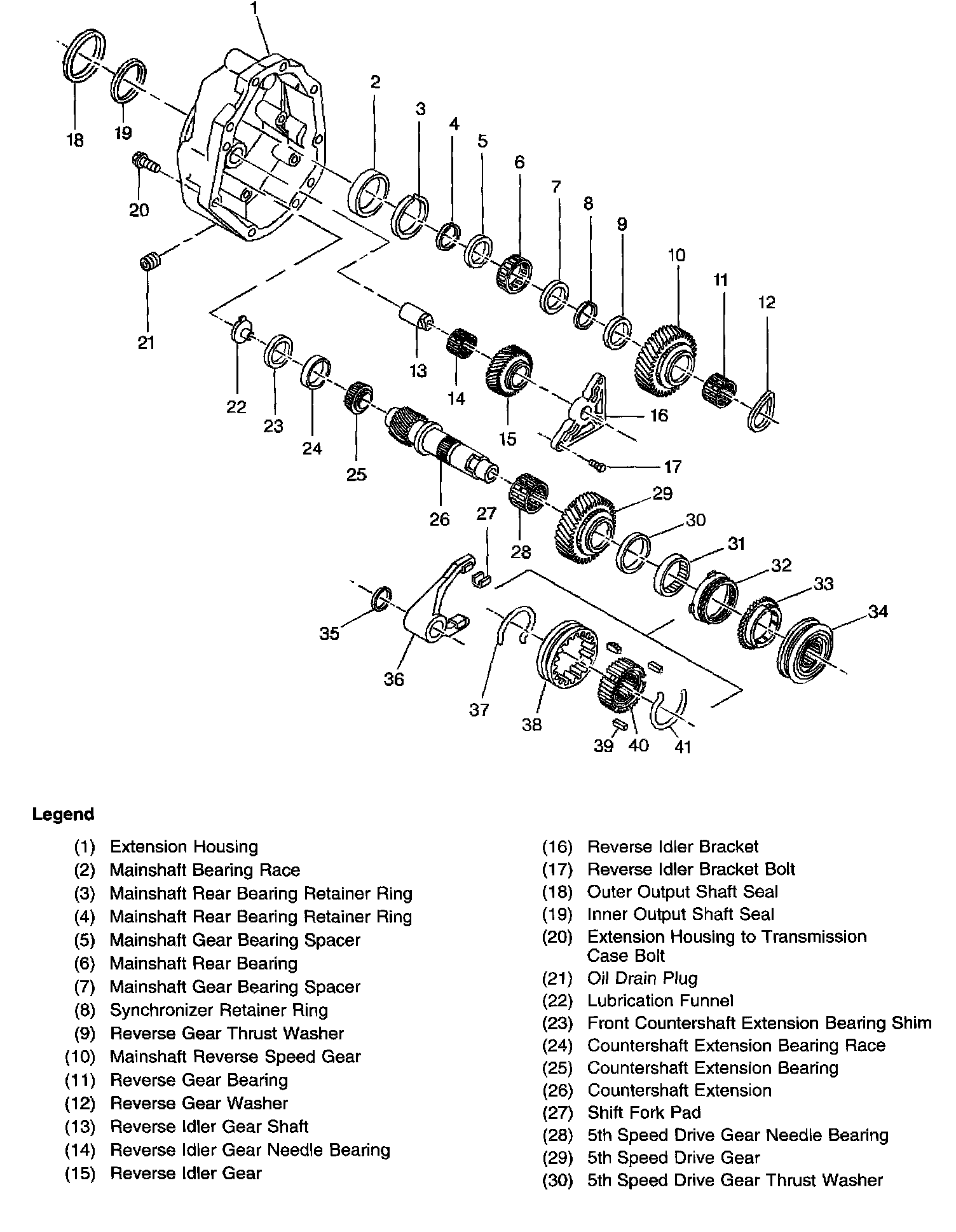

Extension Housing

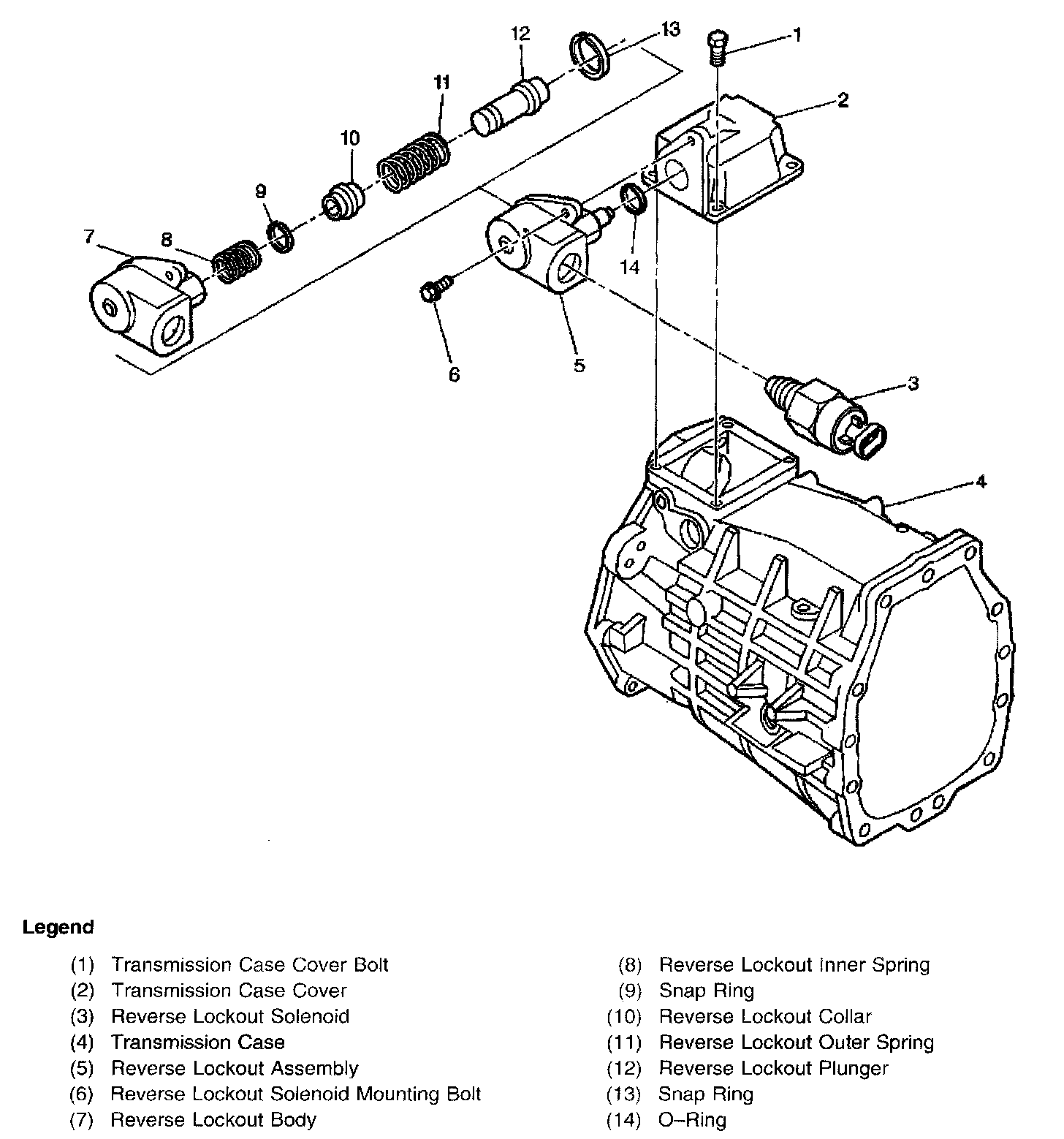

Reverse Lockout

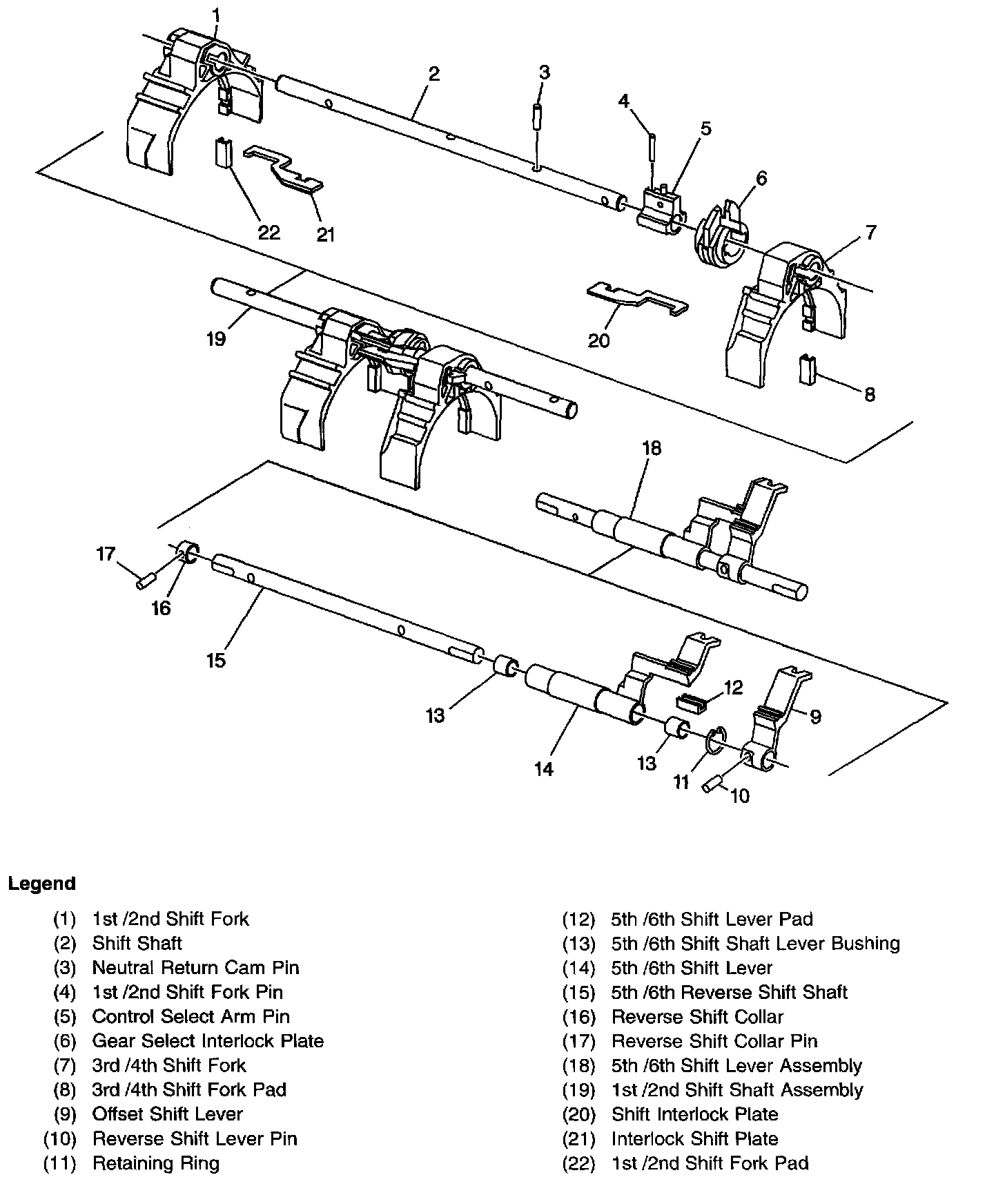

Shift Shafts
