Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
Differential Assembly
Rear Axle Disassembled Views

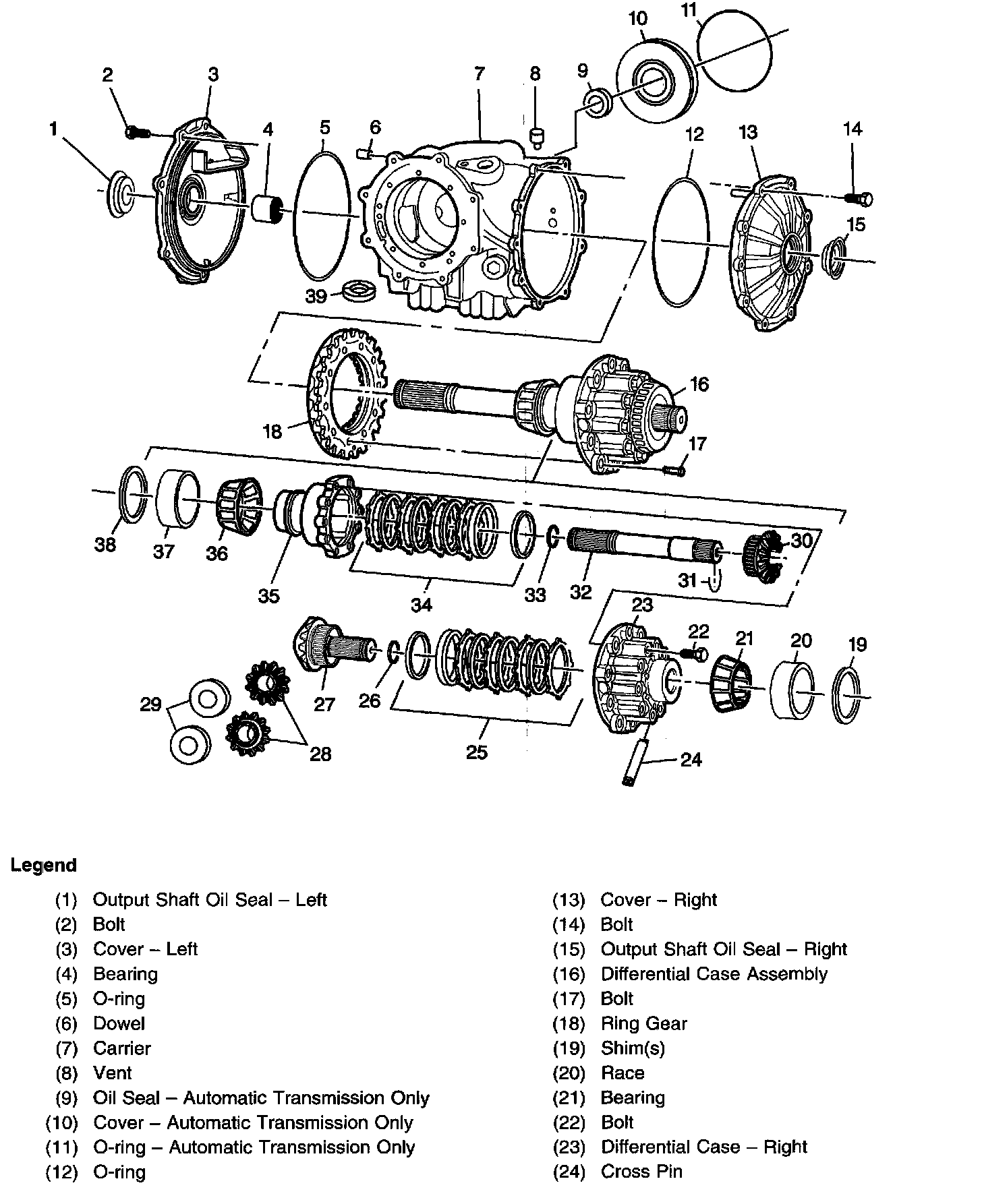

Differential Carrier
and Case Assemble

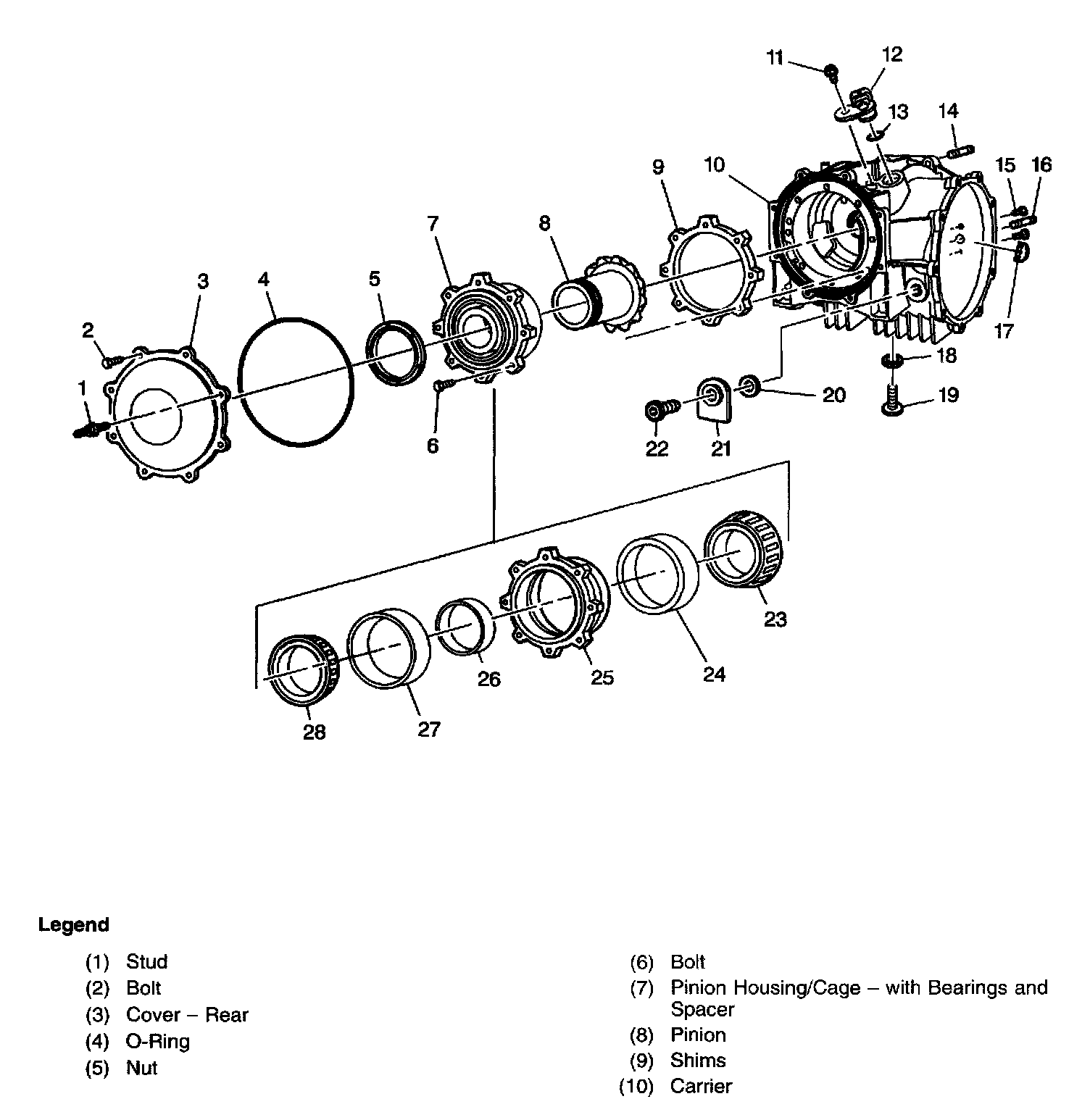

Drive Pinion Assembly
