Connector Views
Automatic Transmission Inline 20-Way Connector End View

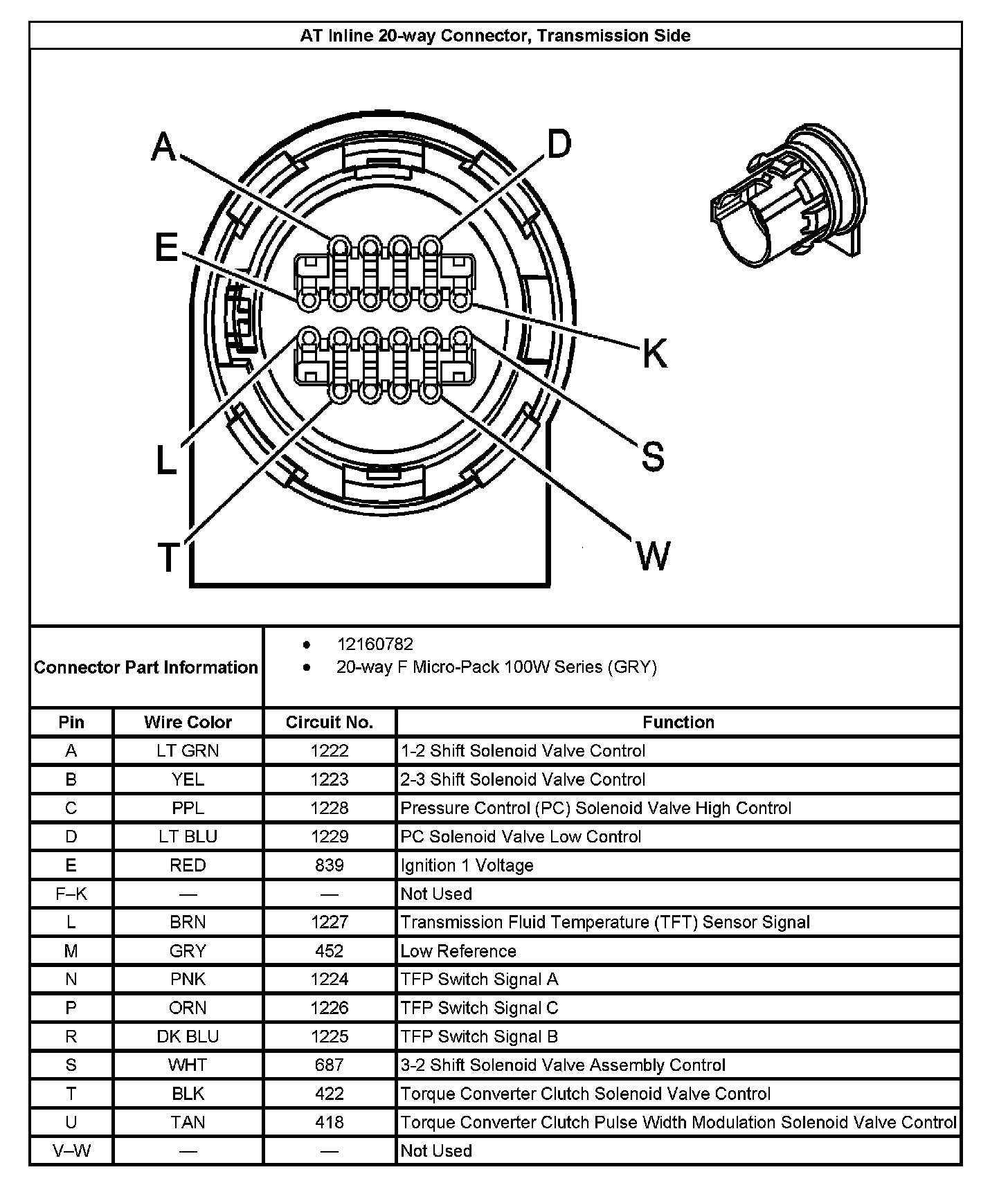

AT Inline 20-way Connector, Transmission Side

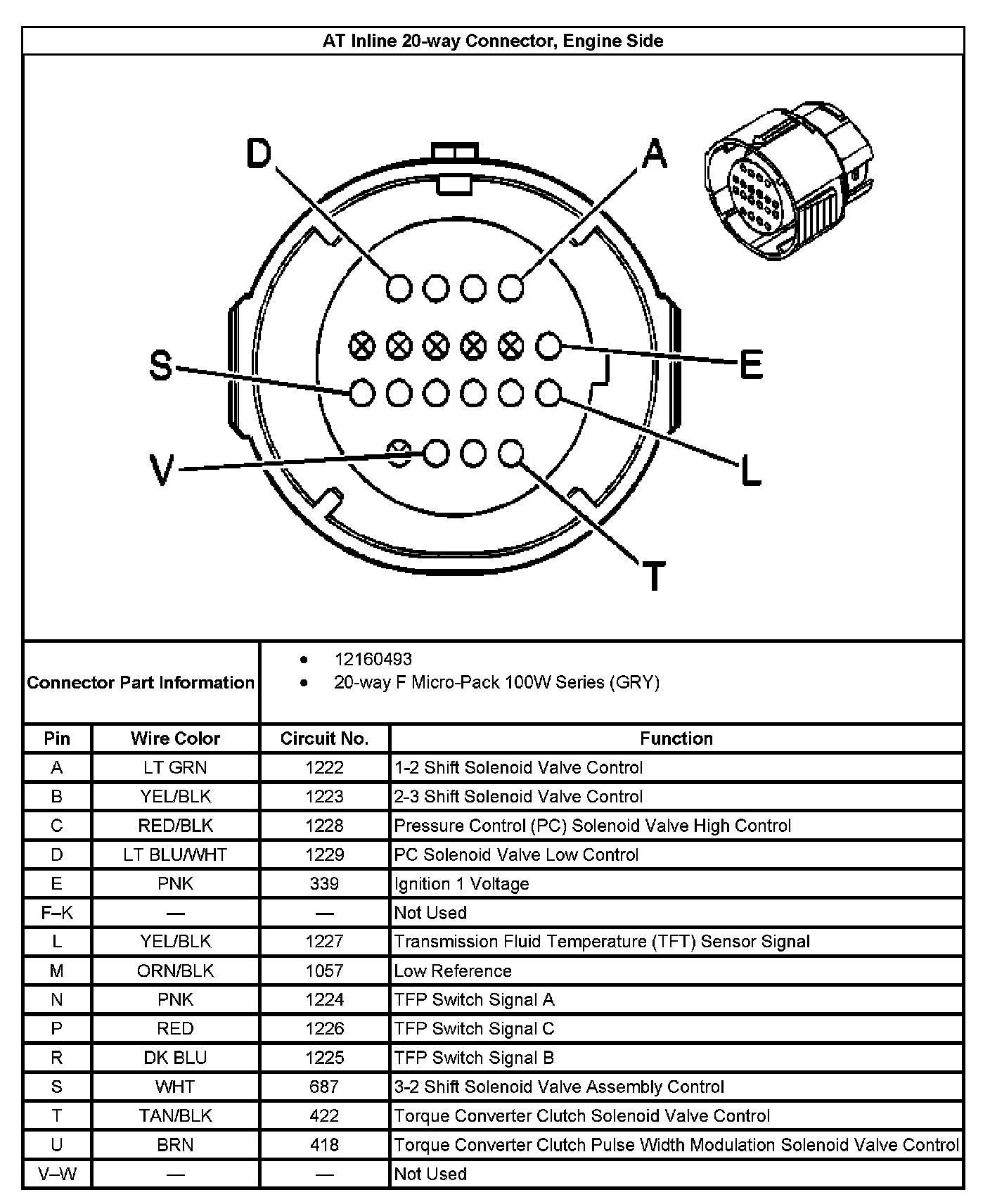

AT Inline 20-way Connector, Engine Side
