Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch

Power Trunk / Liftgate Lock Switch

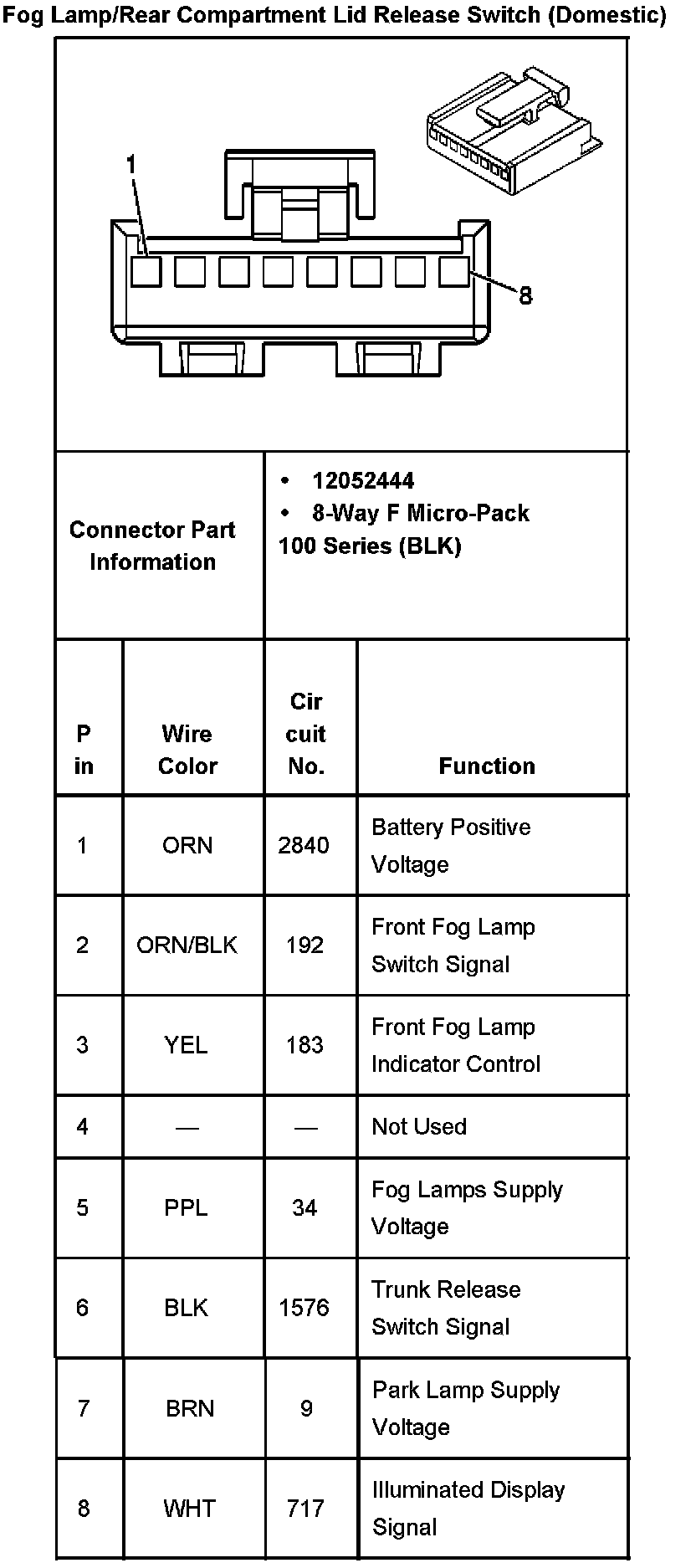

Fog Lamp/Rear Compartment Lid Release Switch (Domestic):
