Home >> Chevrolet >> 2004 >> Colorado 4WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

Component Locator

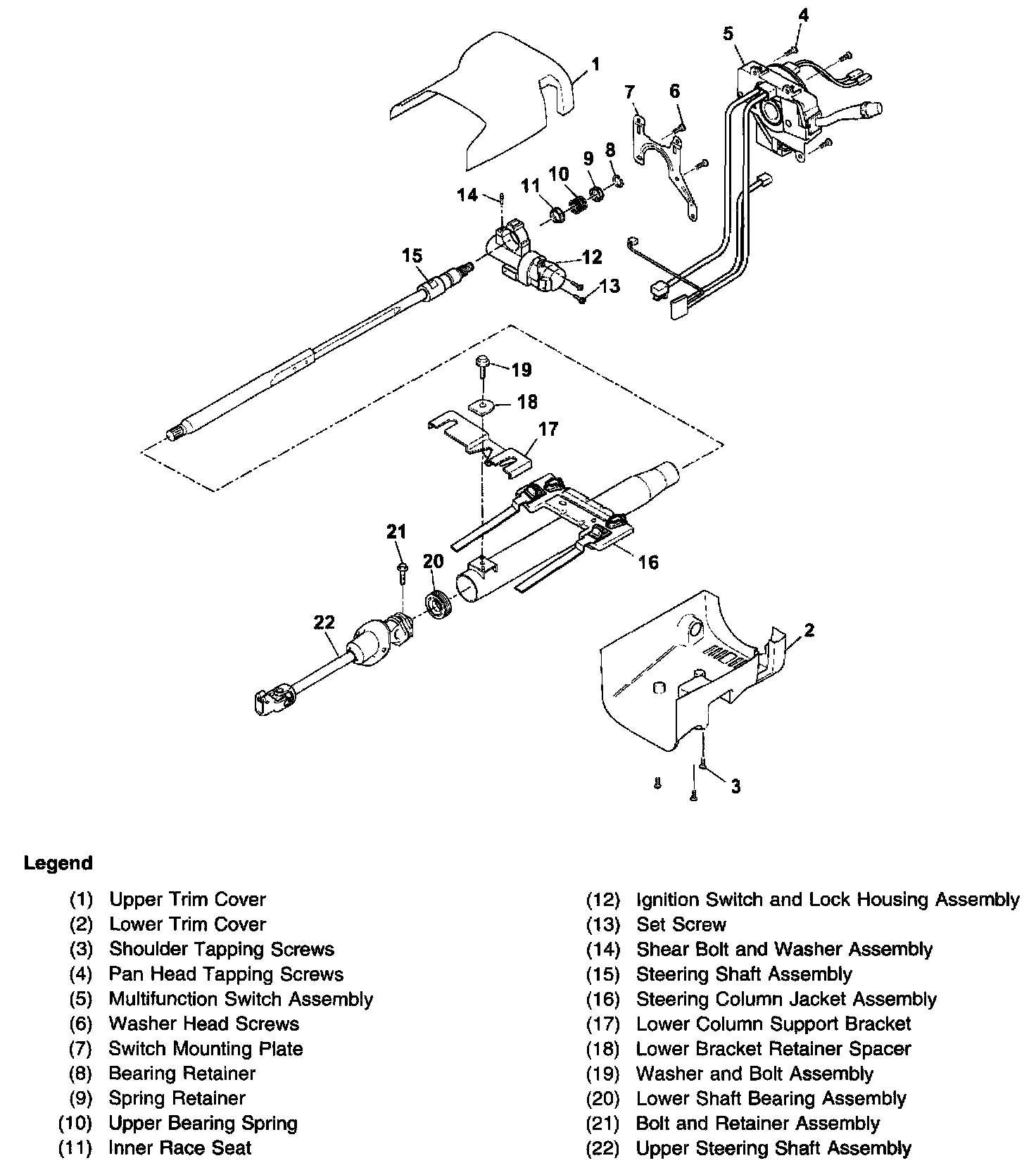

Steering Column Disassembled View (Floor Shift Tilt)

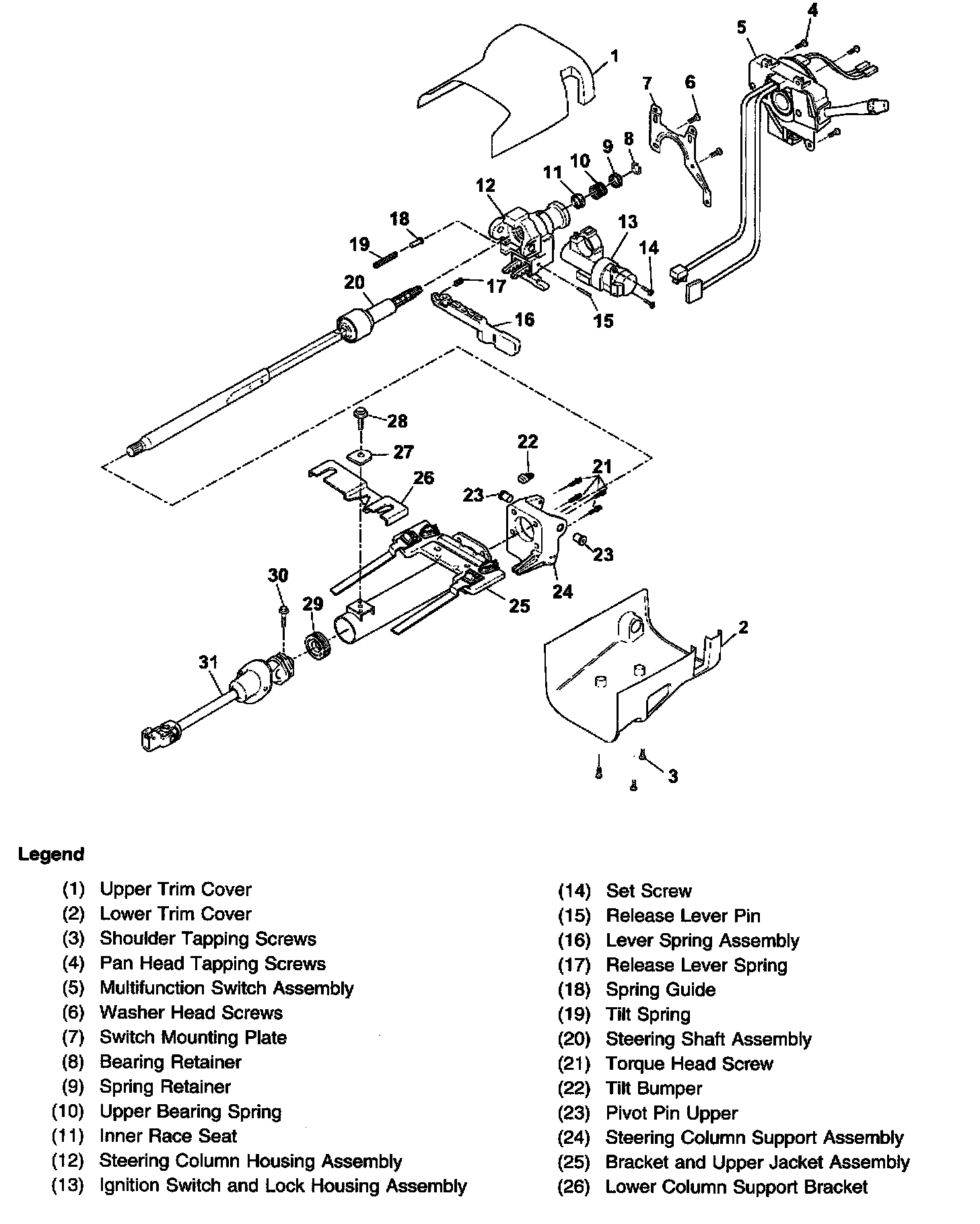

Steering Column Disassembled View (Floor Shift Standard)

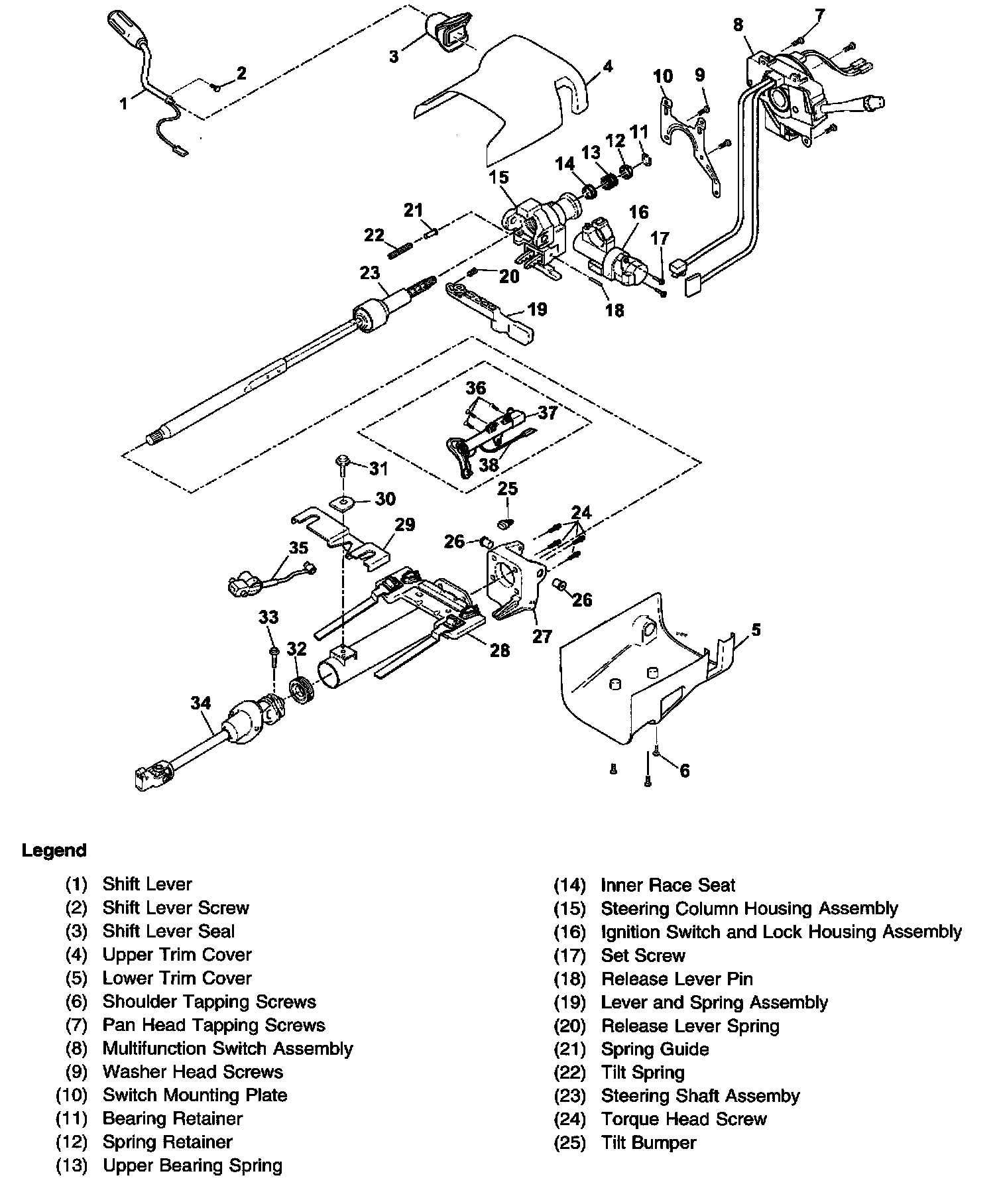

Steering Column Disassembled View (Column Shift Tilt)

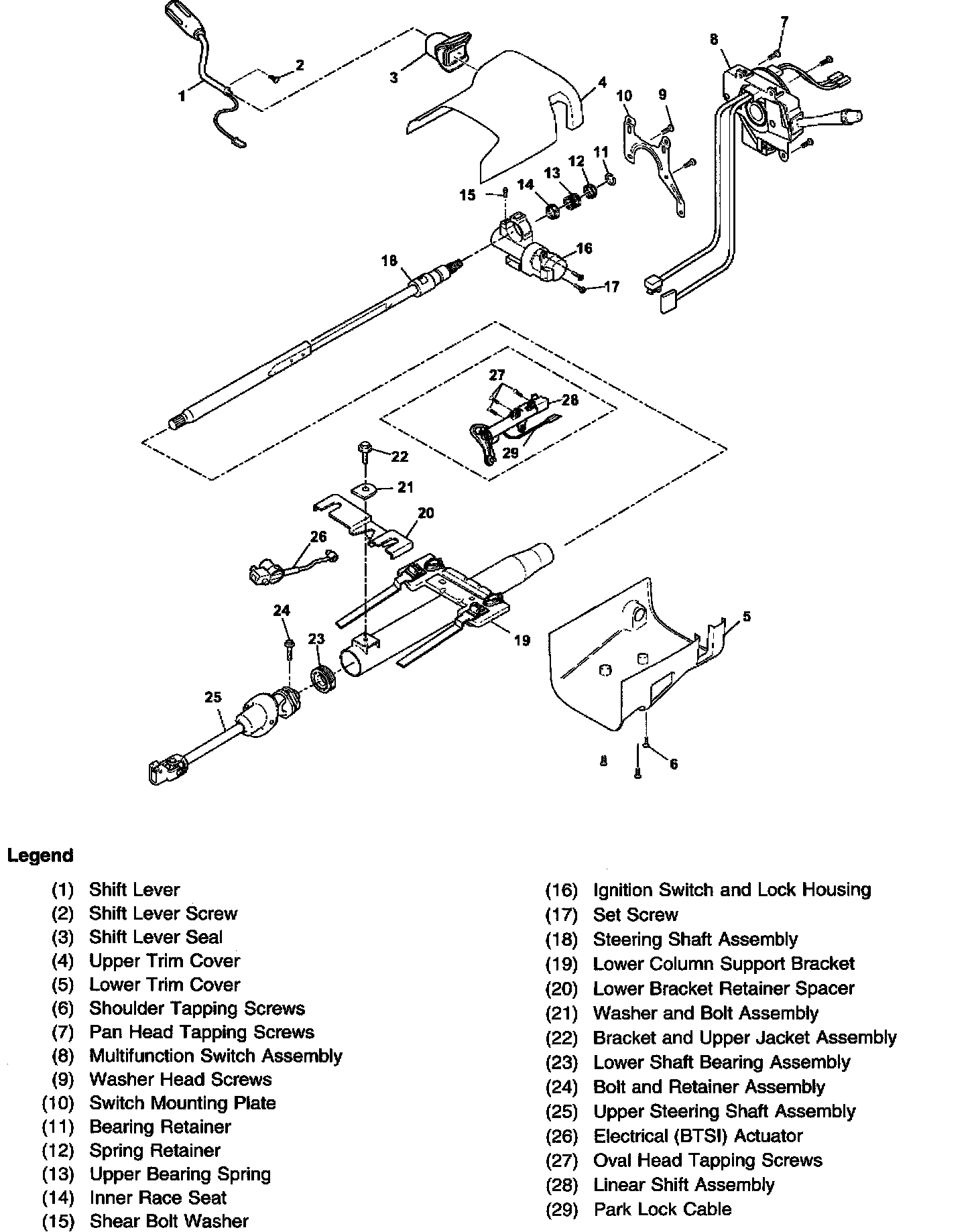

Steering Column Disassembled View (Column Shift Standard)
