Home >> Chevrolet >> 2004 >> Colorado 2WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine Views >> Engine Compartment

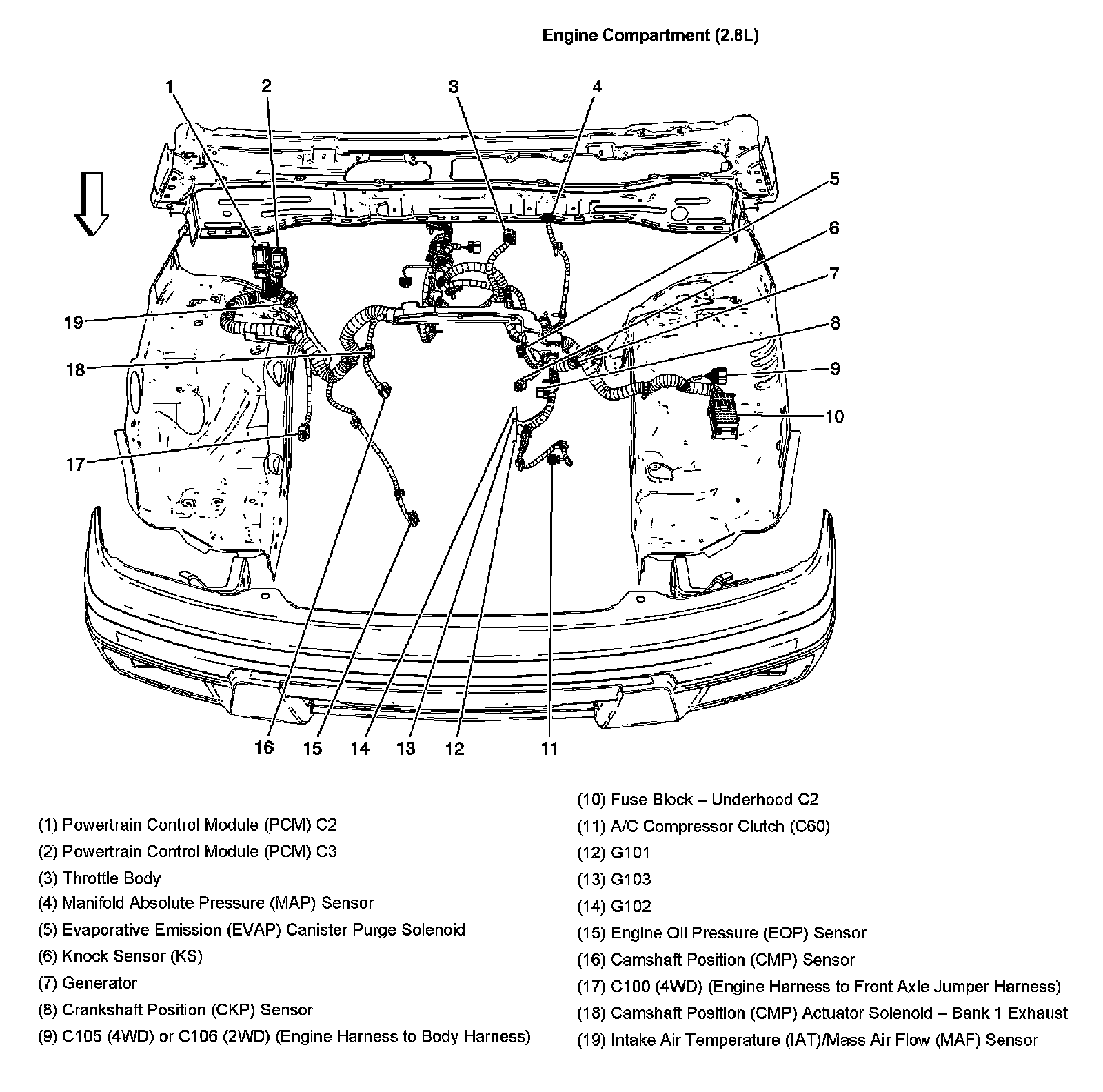

Engine Compartment

Engine Compartment:
