Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

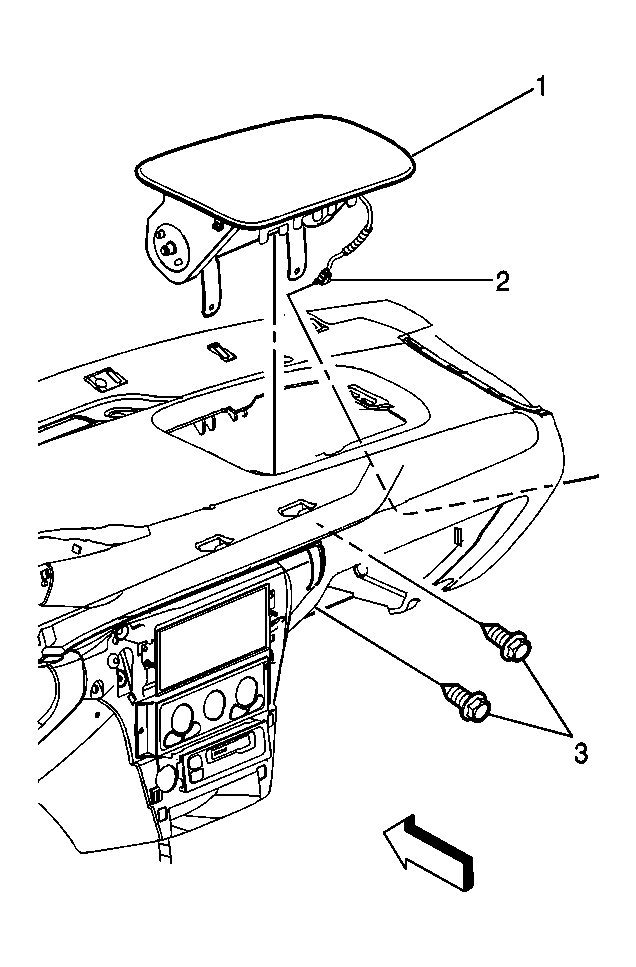

    Fig 1: View Of Inflatable Restraint I/P Module, Screws & Yellow 2-Way Connector
    GM241293Courtesy of GENERAL MOTORS CORP.
  1. Make sure the module harness is routed correctly. Install the inflatable restraint instrument panel (I/P) module (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws (3) that secure the inflatable restraint I/P module.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

  3. Connect the module harness to the fuse block bracket.
  4. Connect the inflatable restraint I/P module yellow 2-way connector (2).
  5. Install the CPA to the inflatable restraint I/P module yellow 2-way connector (2).
  6. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 5 .
