SIR Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

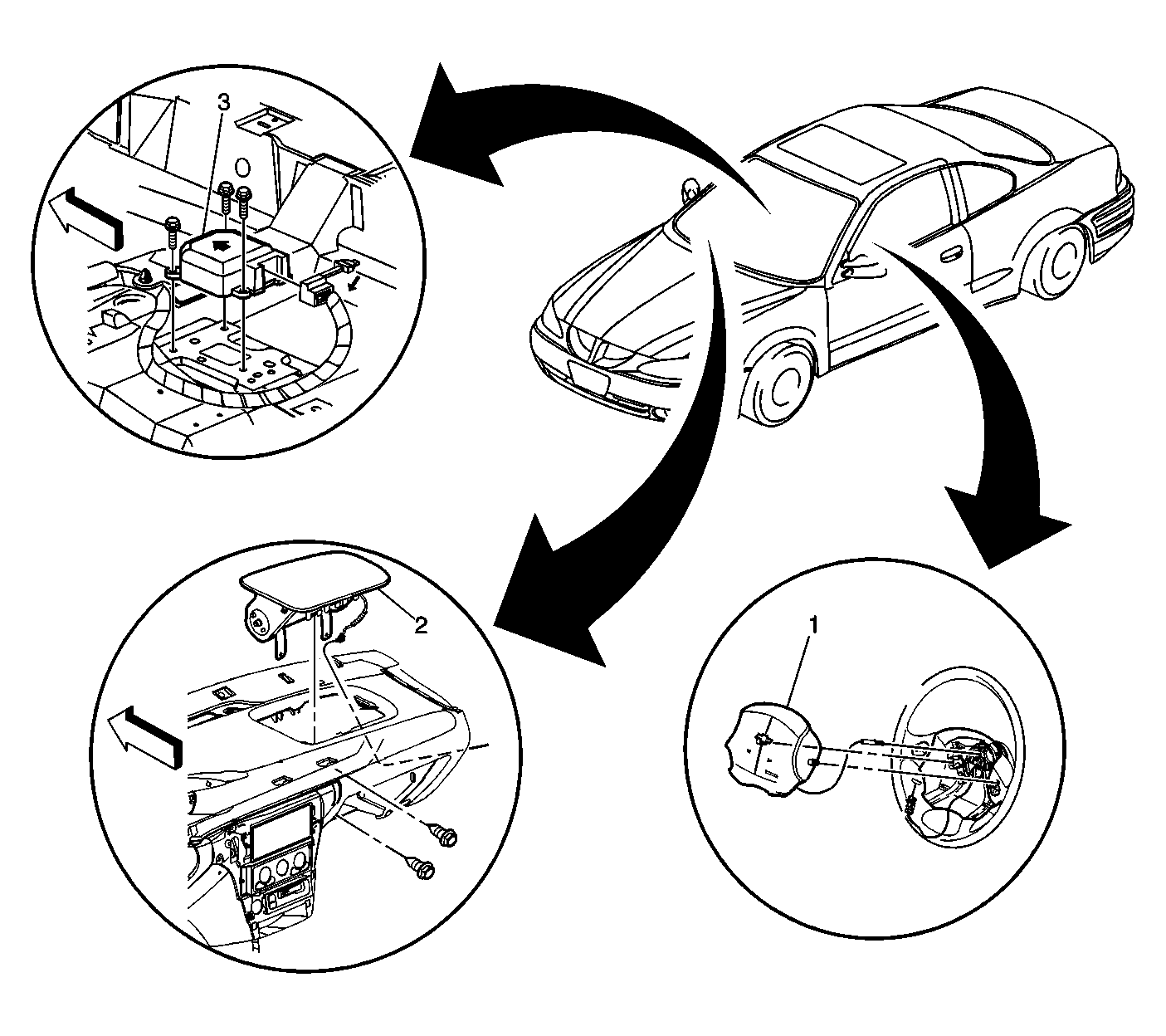

Fig 1: SIR Component Views
GM324466Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module
2 Inflatable Restraint I/P Module
3 Inflatable Restraint Sensing and Diagnostic Module (SDM)

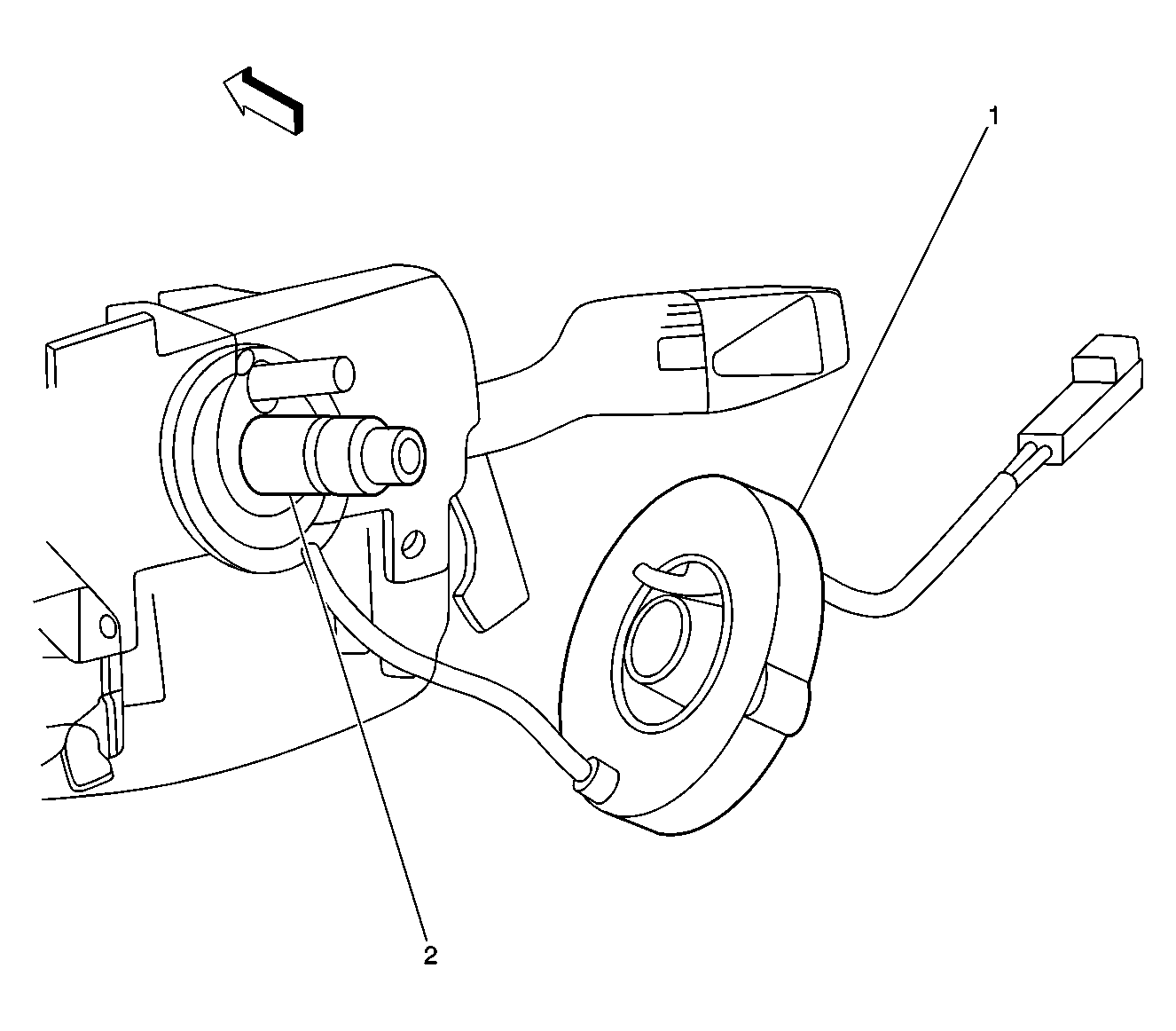

Fig 2: Inflatable Restraint Steering Wheel Module Coil Component View
GM385912Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Steering Column Assembly
