Power Window Switch
>>
Diagrams
>>
Connector Views
Connector Views

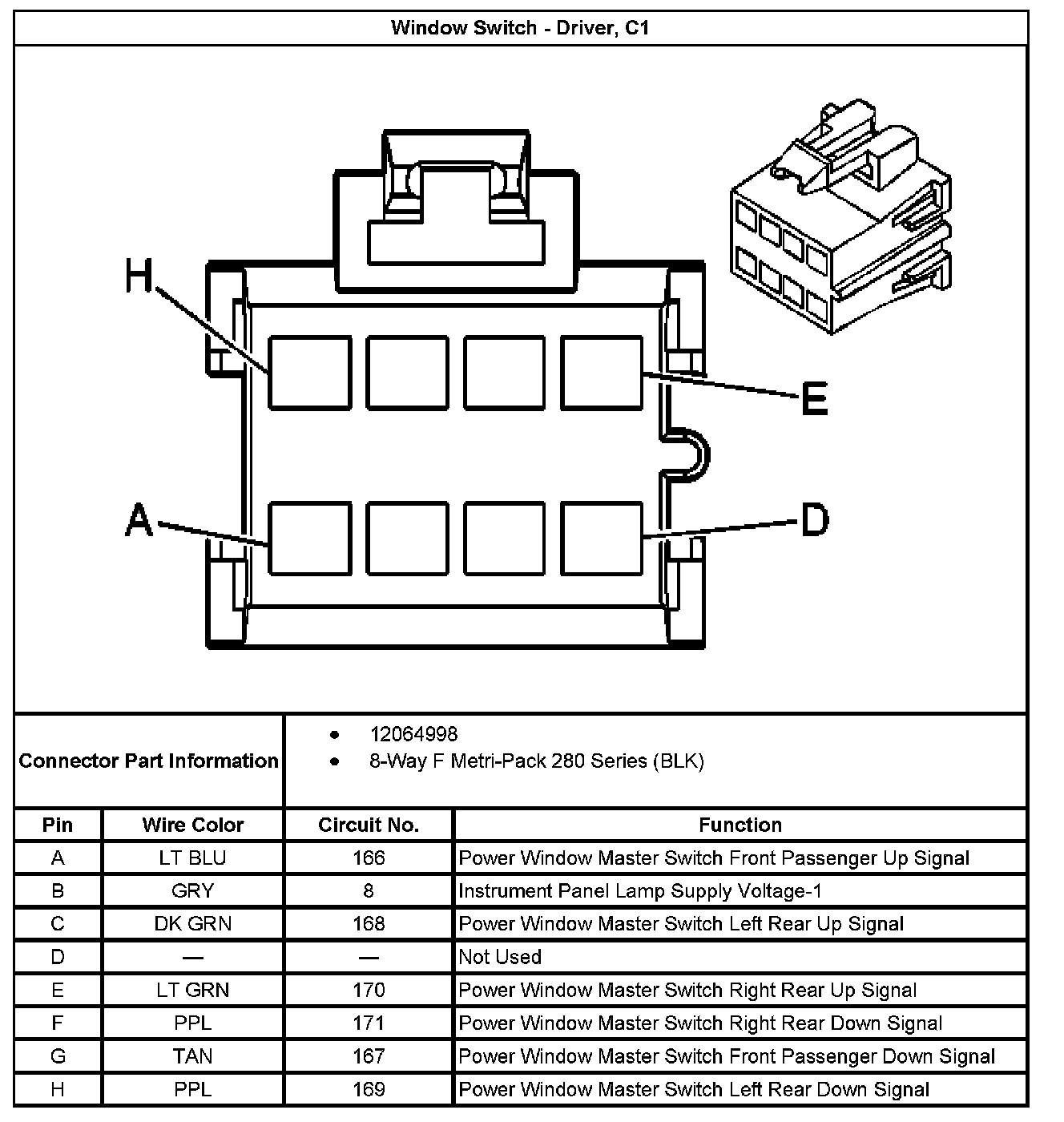

Window Switch - Driver, C1:

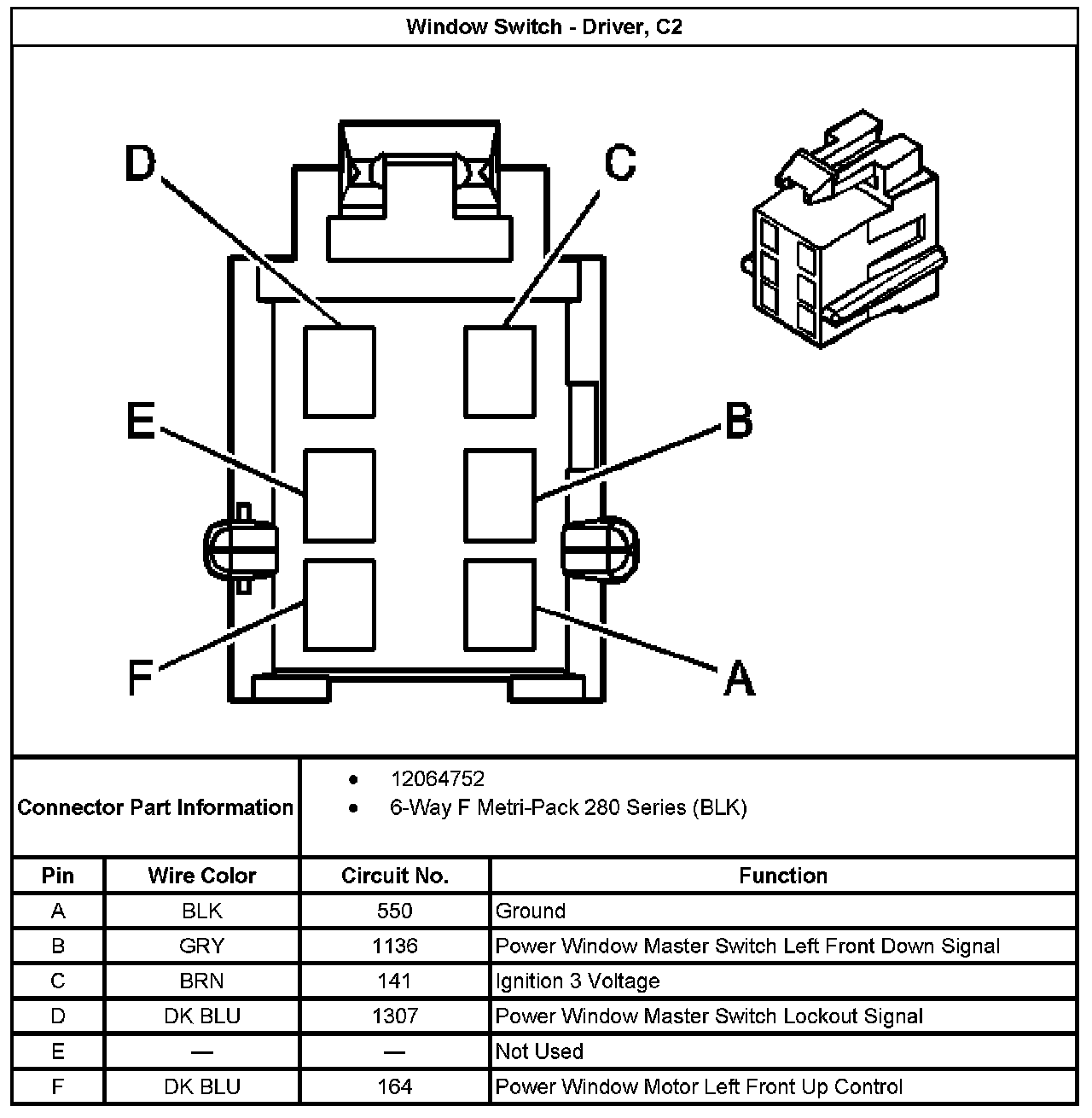

Window Switch - Driver, C2:

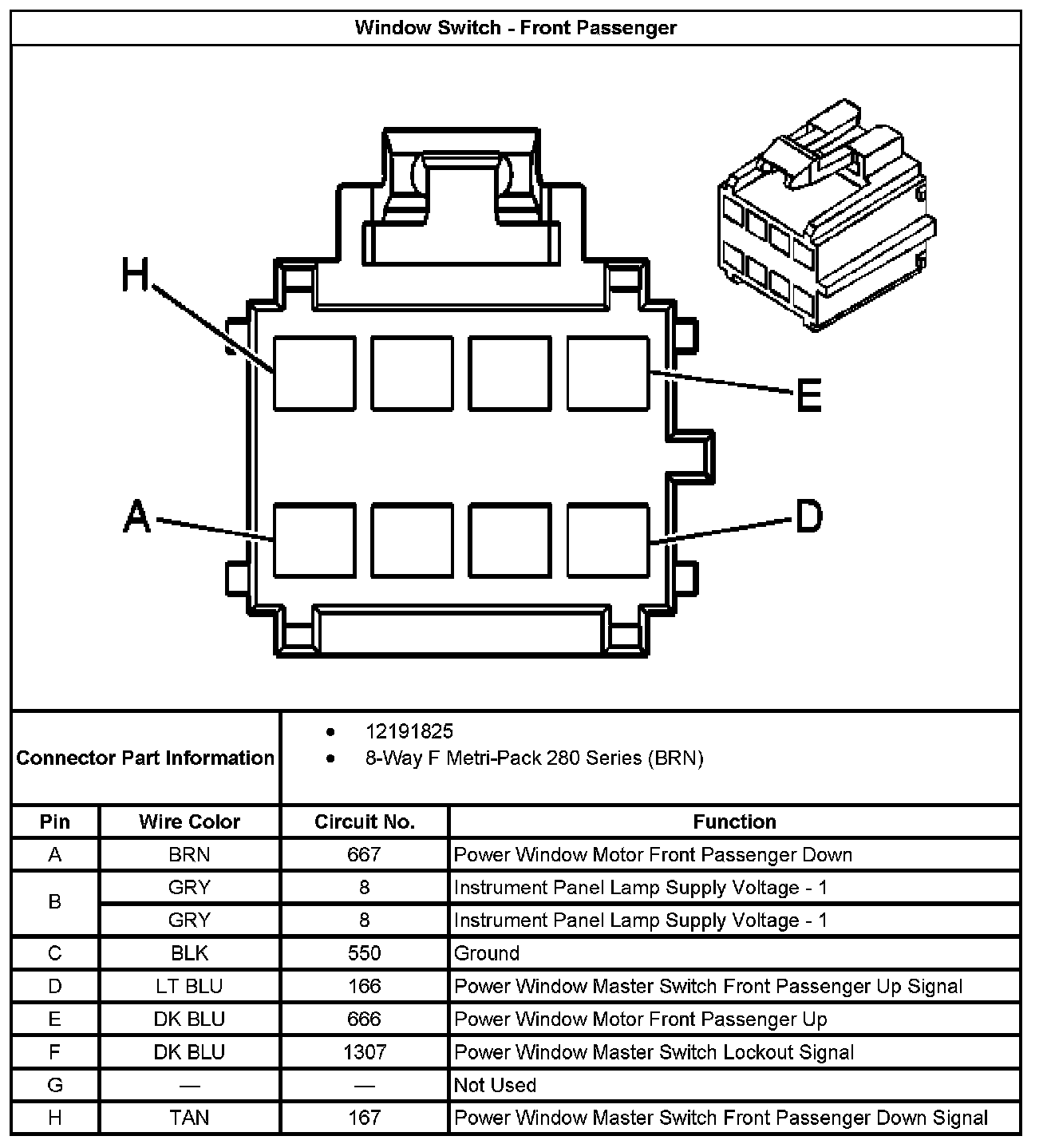

Window Switch - Front Passenger:

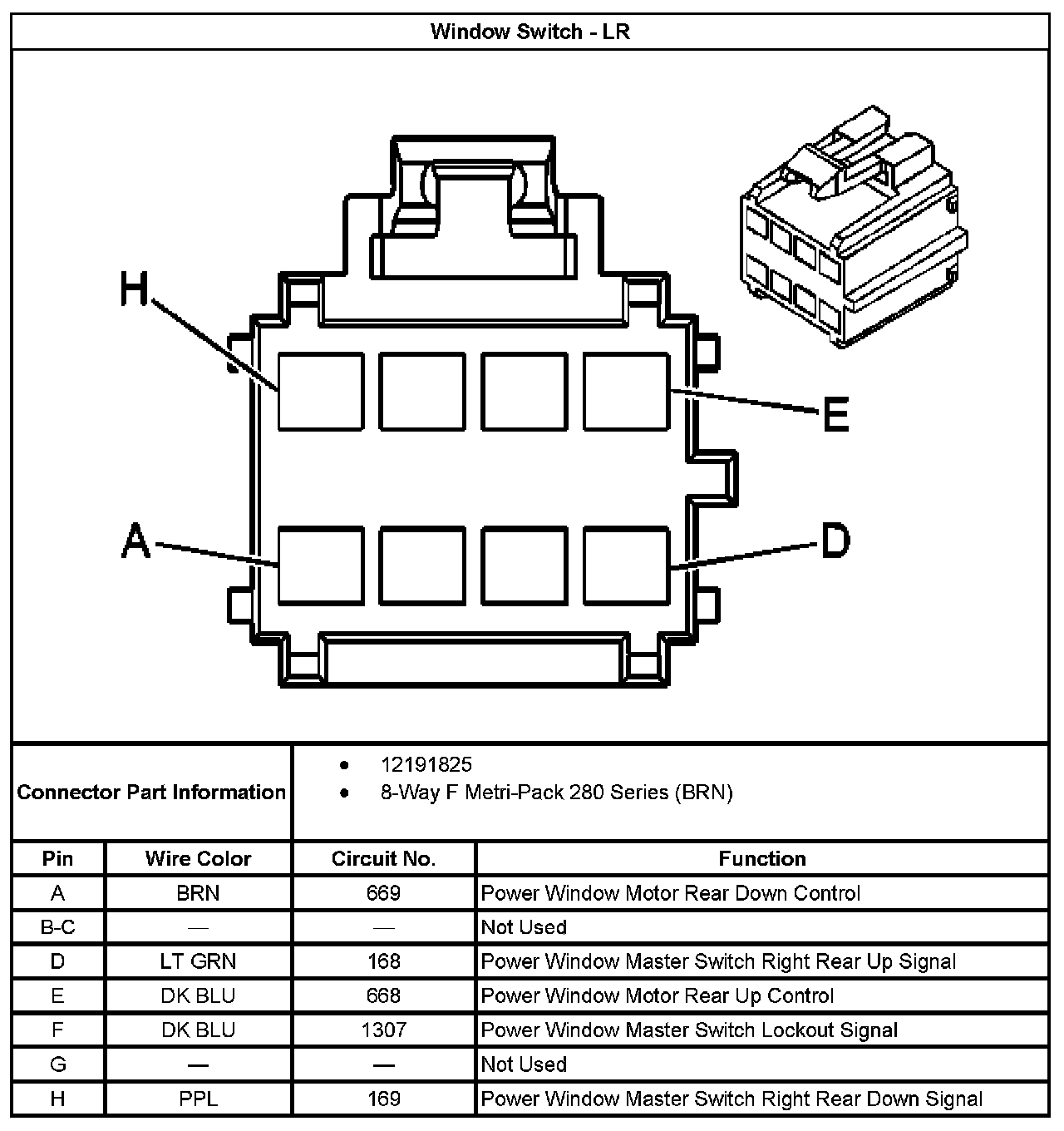

Window Switch - LR:

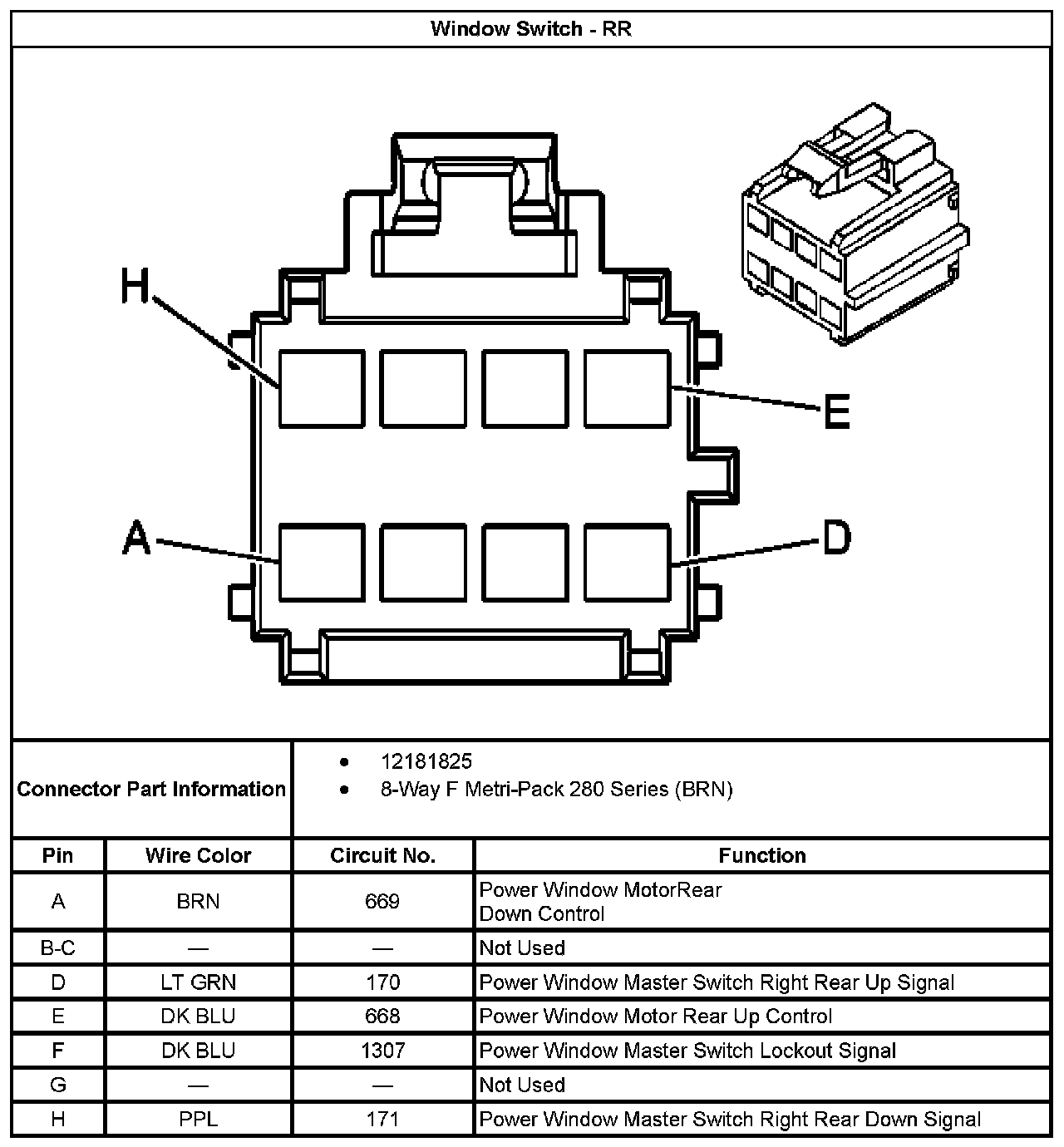

Window Switch - RR:
