Electrical Diagrams

Automatic Transmission Controls Schematics

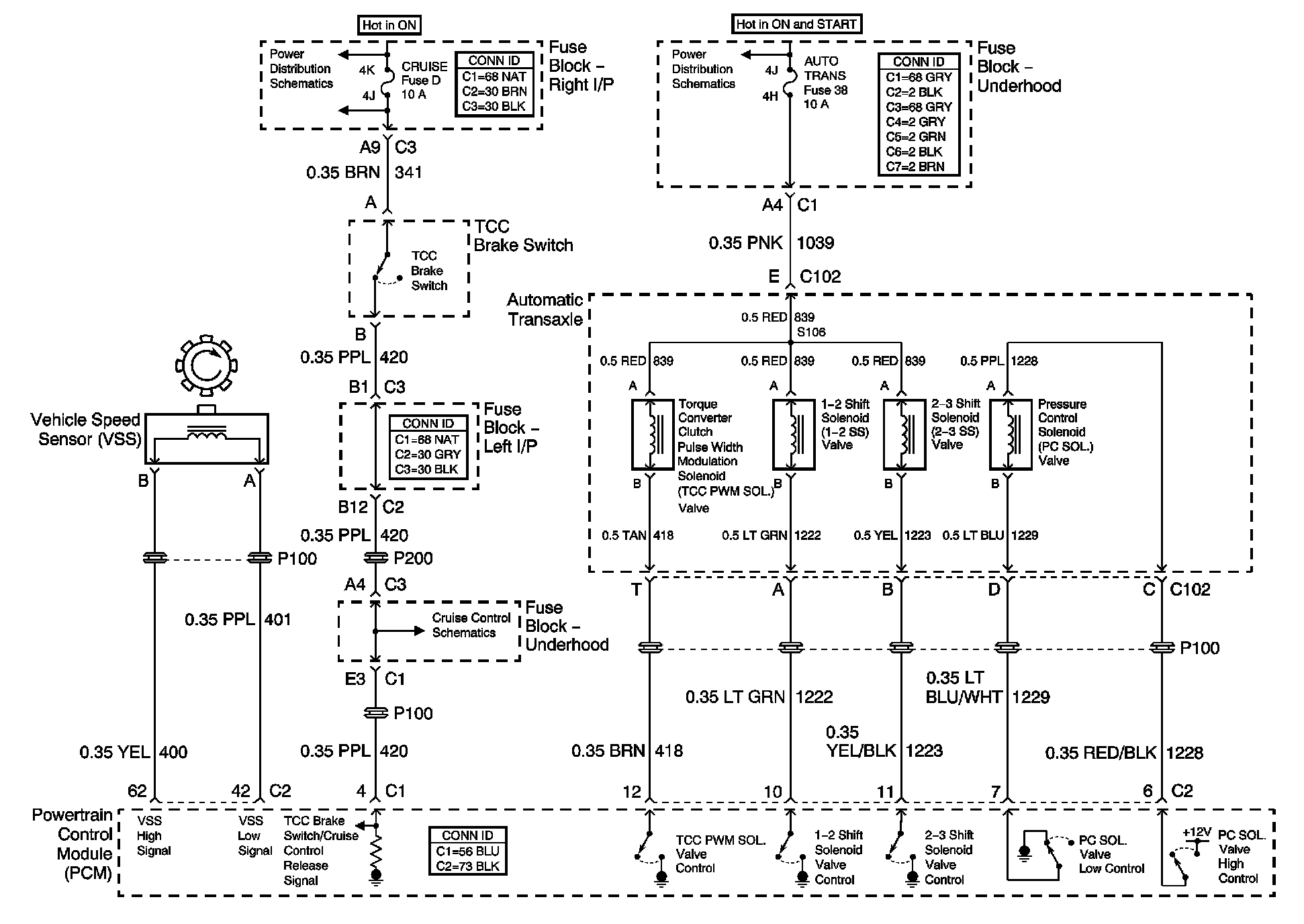

Shift Solenoids

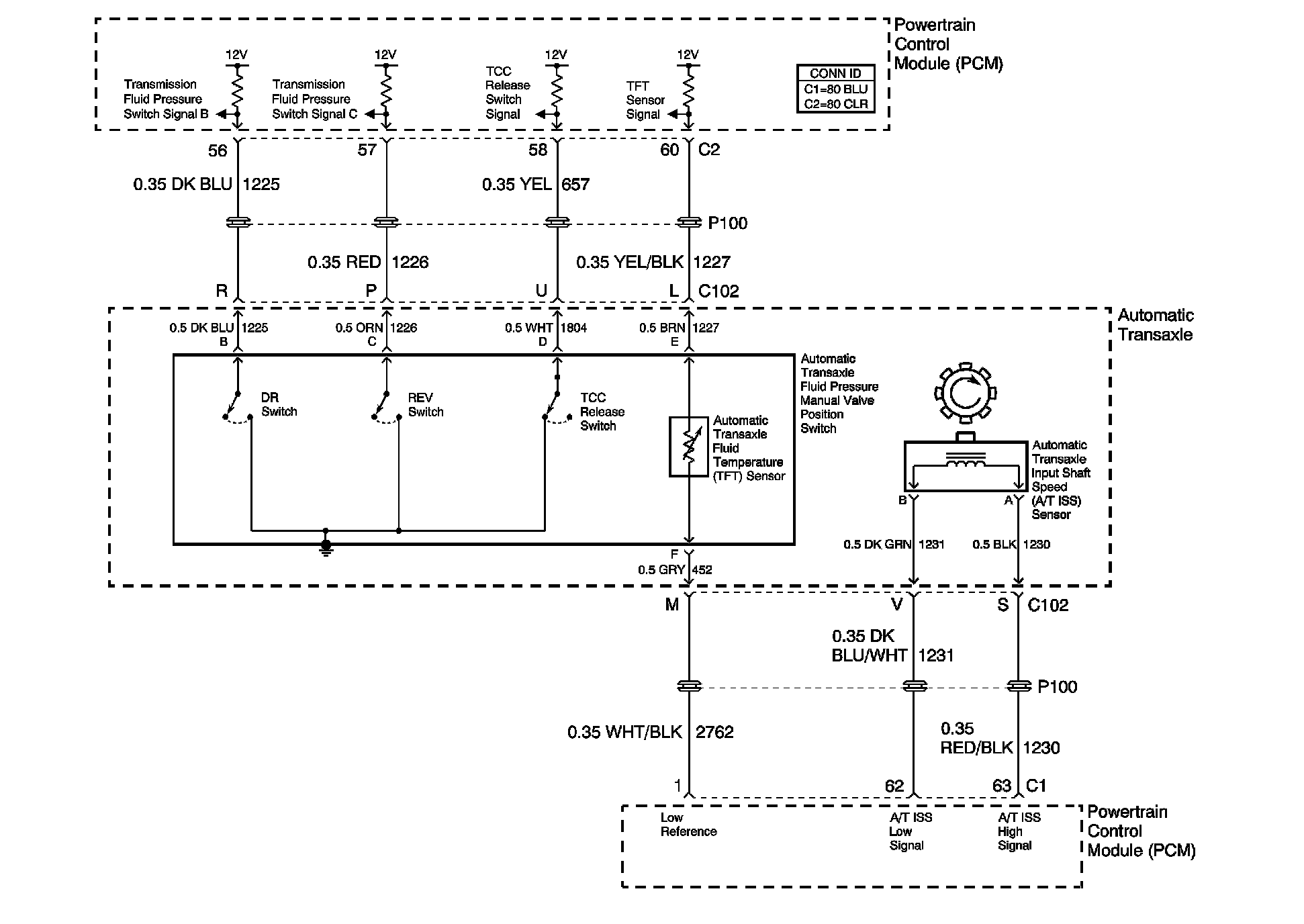

Transmission Switches

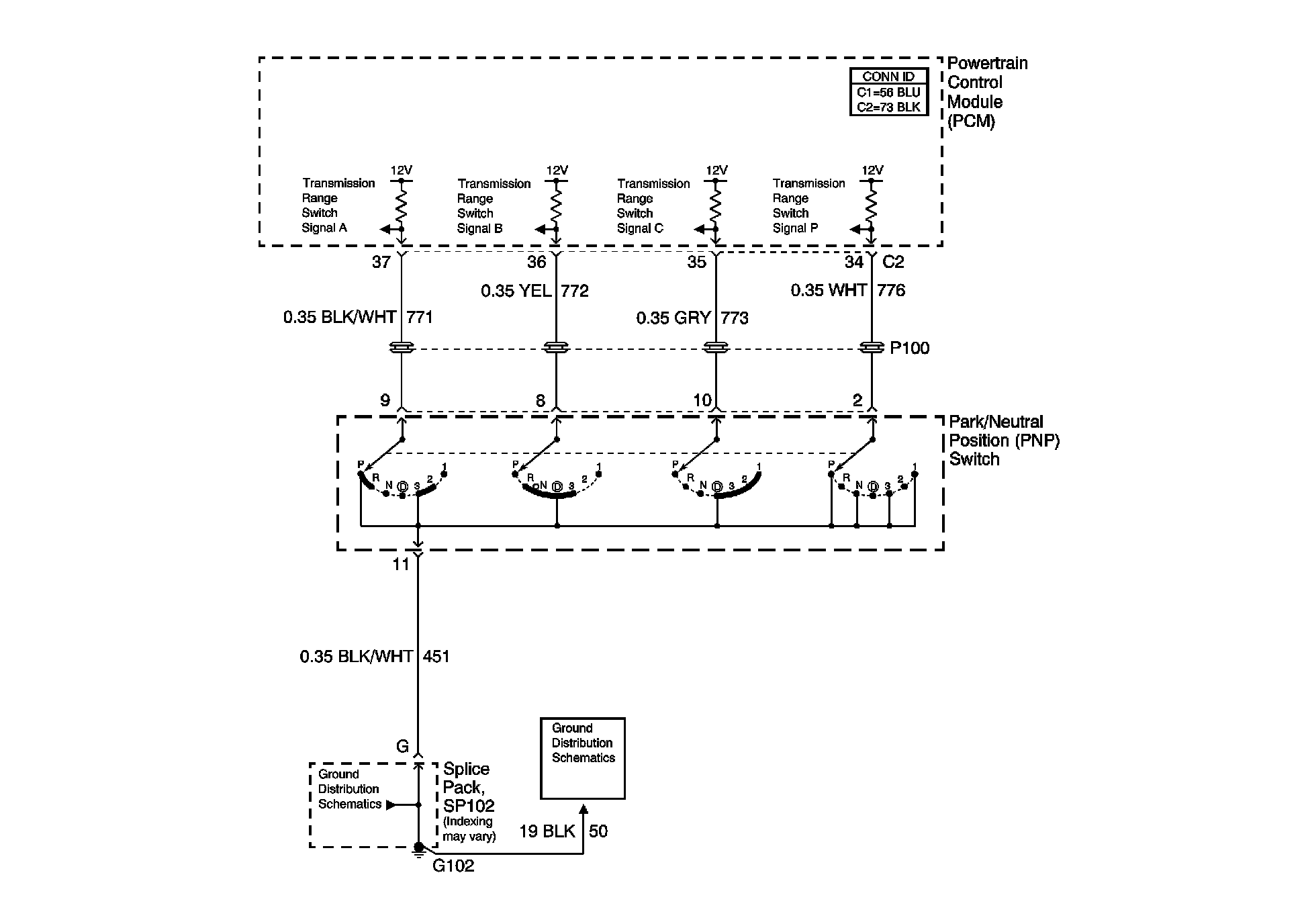

Park Neutral Position (PNP) Switch
