Turn Signal Lamp
Turn Signal Lamp
Park/Turn Signal Lamp, LF:

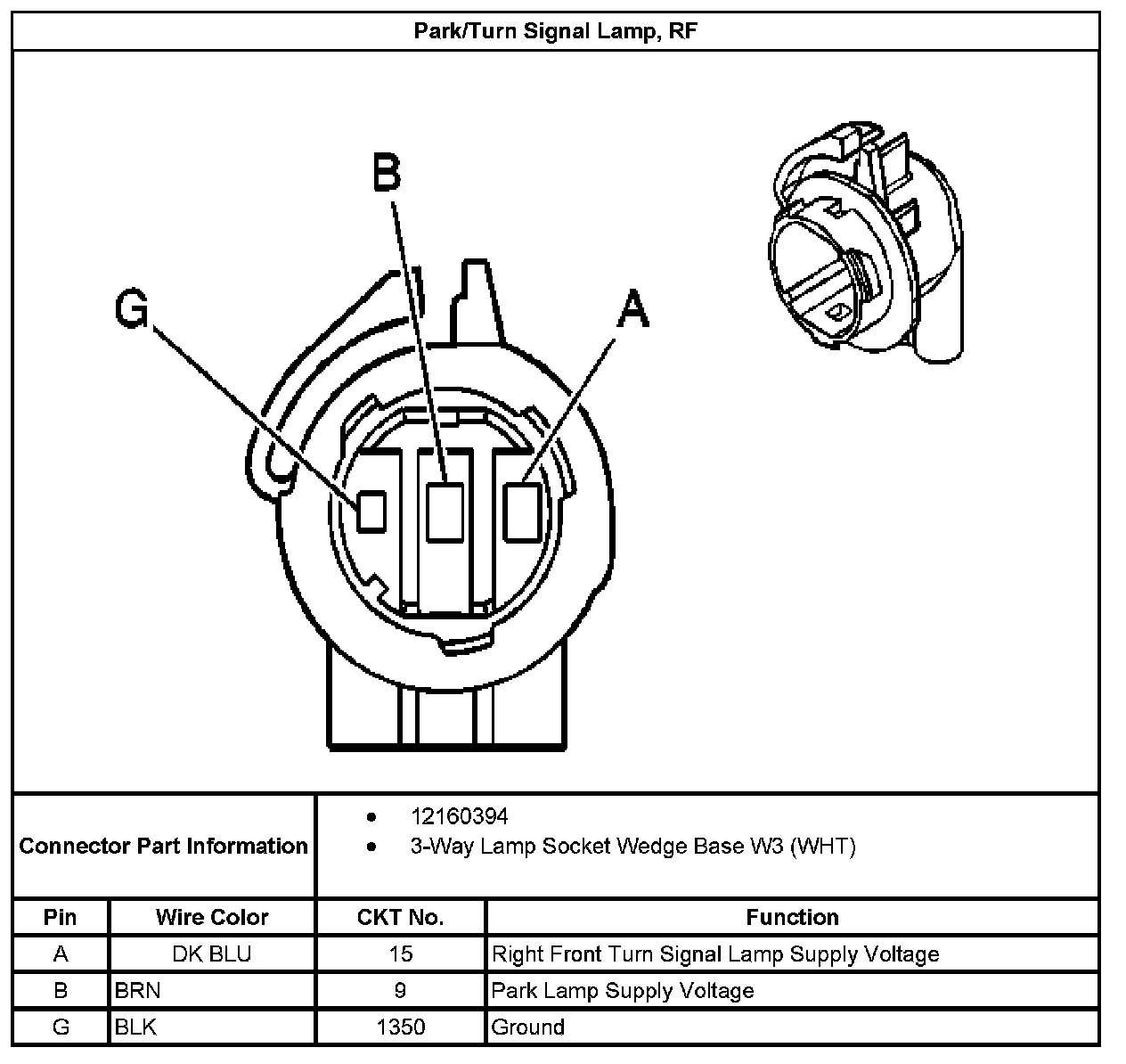

Park/Turn Signal Lamp, RF:
Tail/Stop and Turn Signal Lamp - Left:
Tail/Stop and Turn Signal Lamp - Right:
