Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems >> A/T Internal Connector End Views

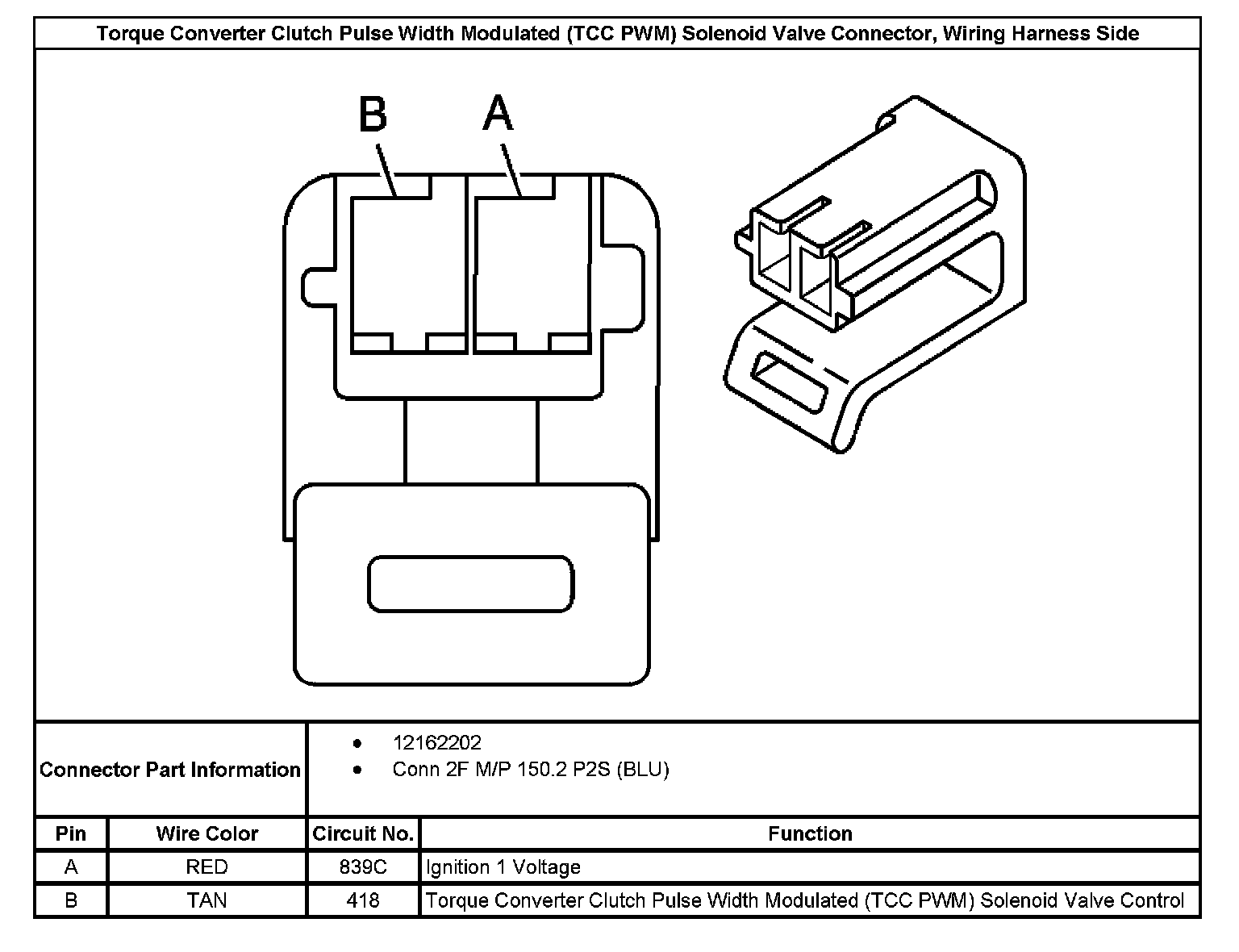

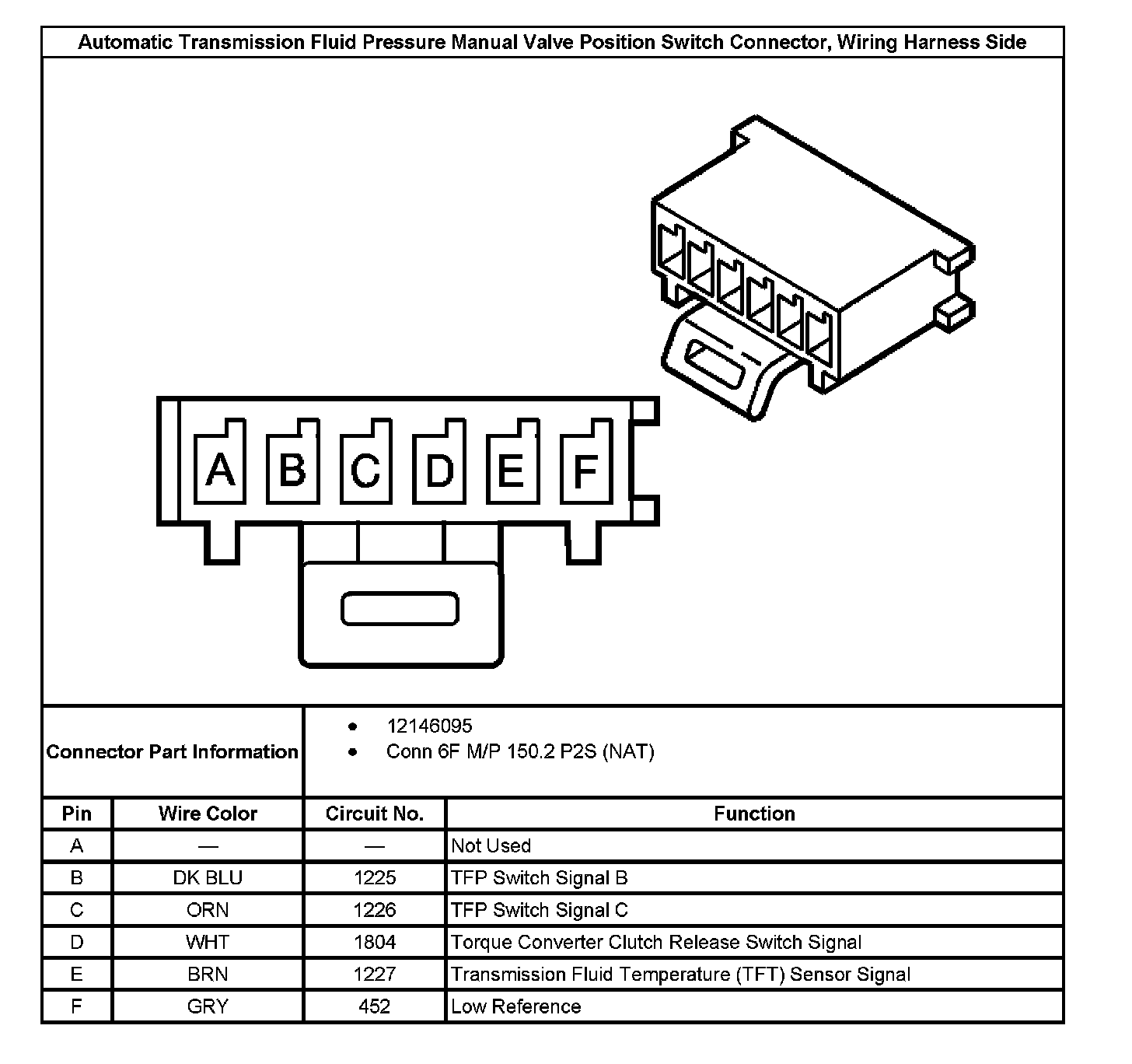

A/T Internal Connector End Views
