LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>

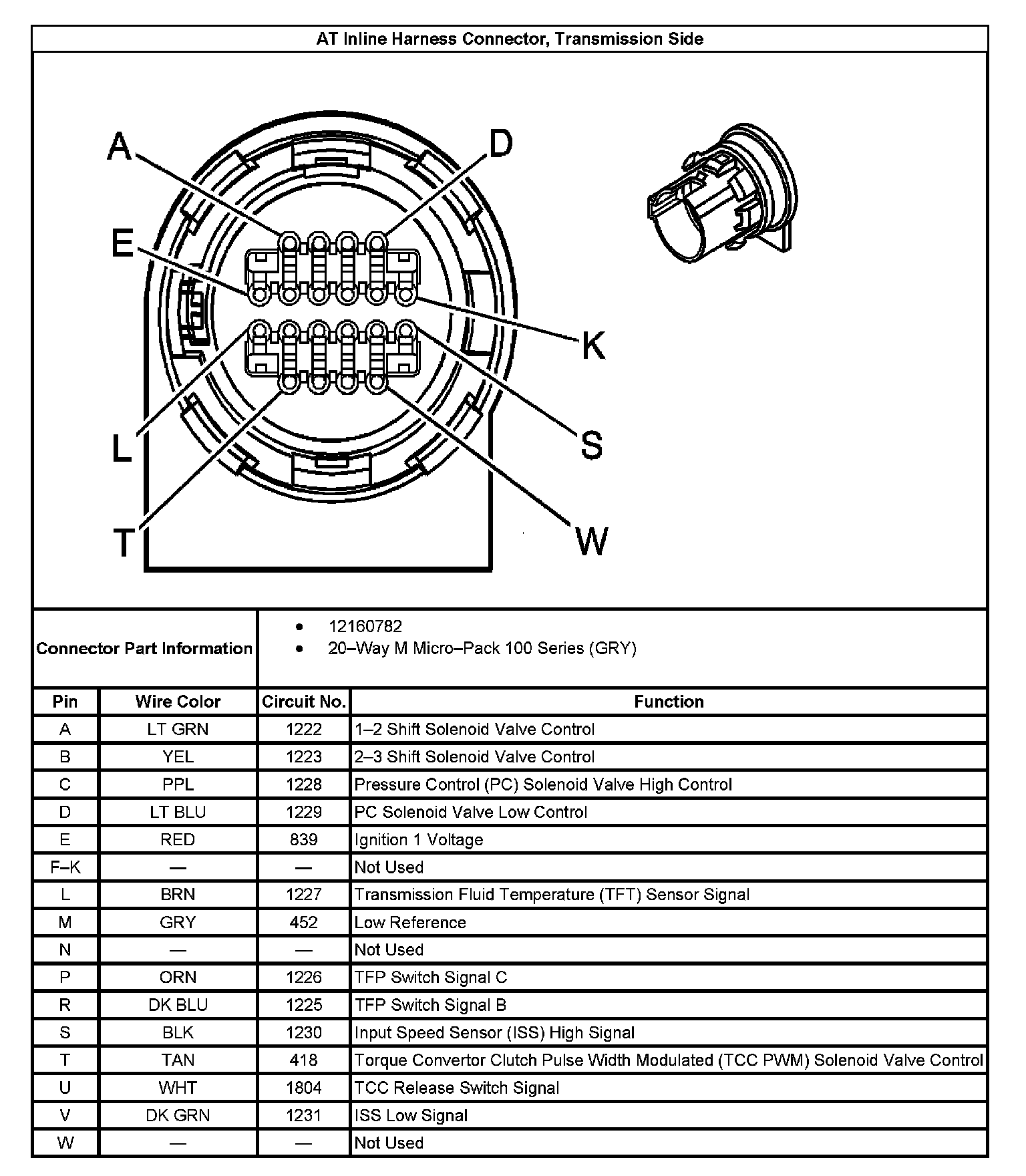

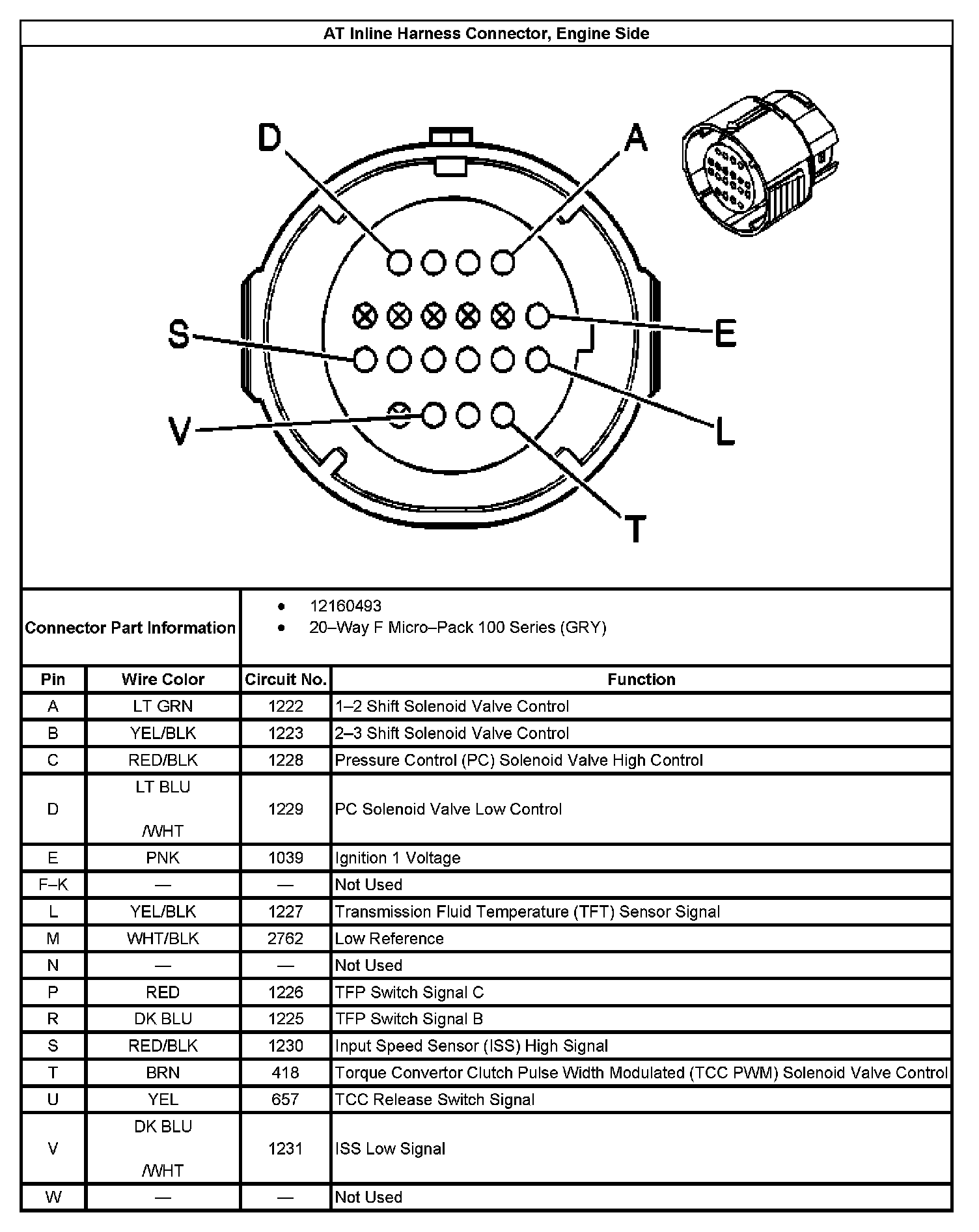

A/T Inline 20-Way Connector End View
A/T Inline 20-Way Connector End View
