Home
>>
Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic System, Brakes
>>
Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

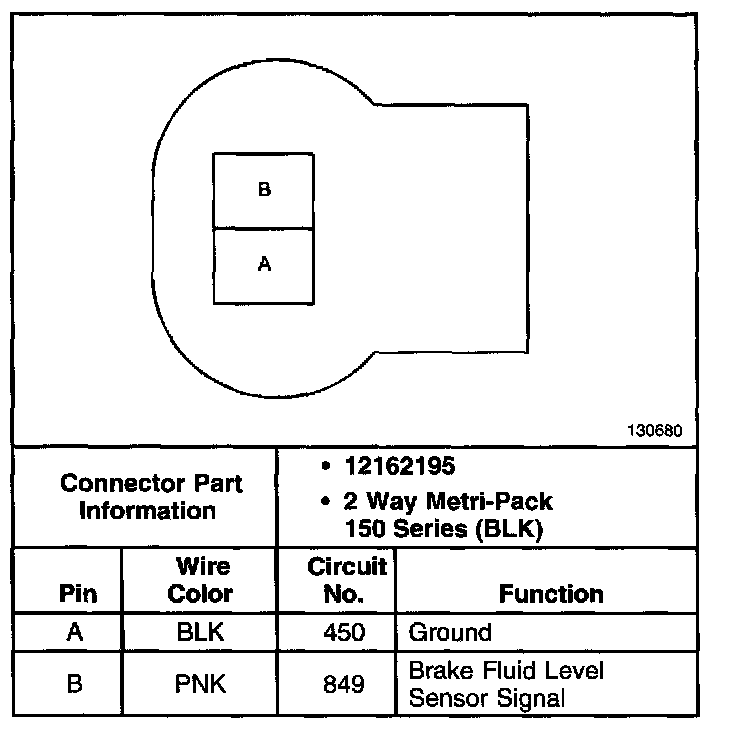

Brake Fluid Level Switch:
