Home
>>
Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block - Right I/P, C2
Fuse Block - Right I/P, C2

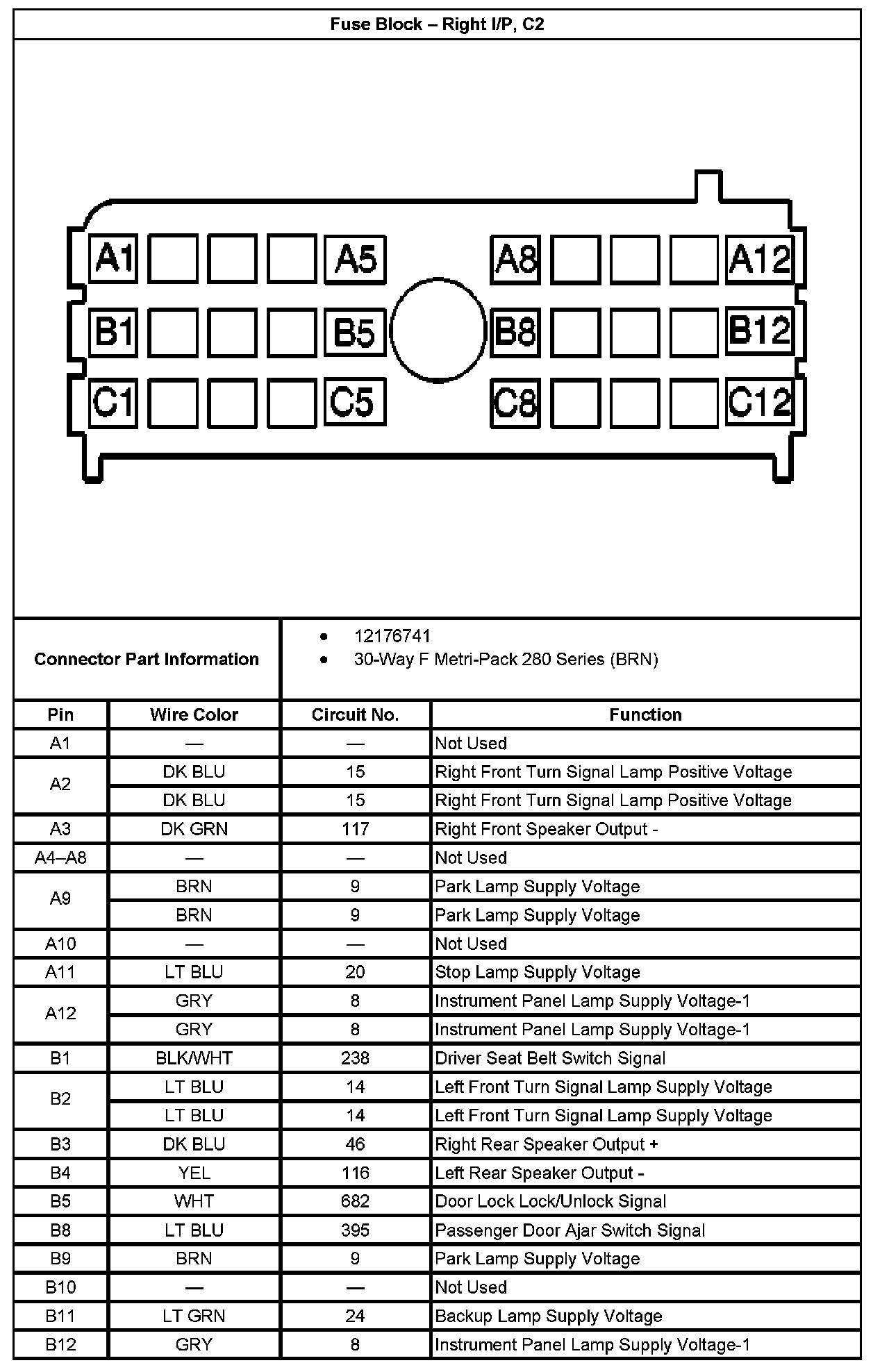

Fuse Block - Right I/P, C2 Part 1:

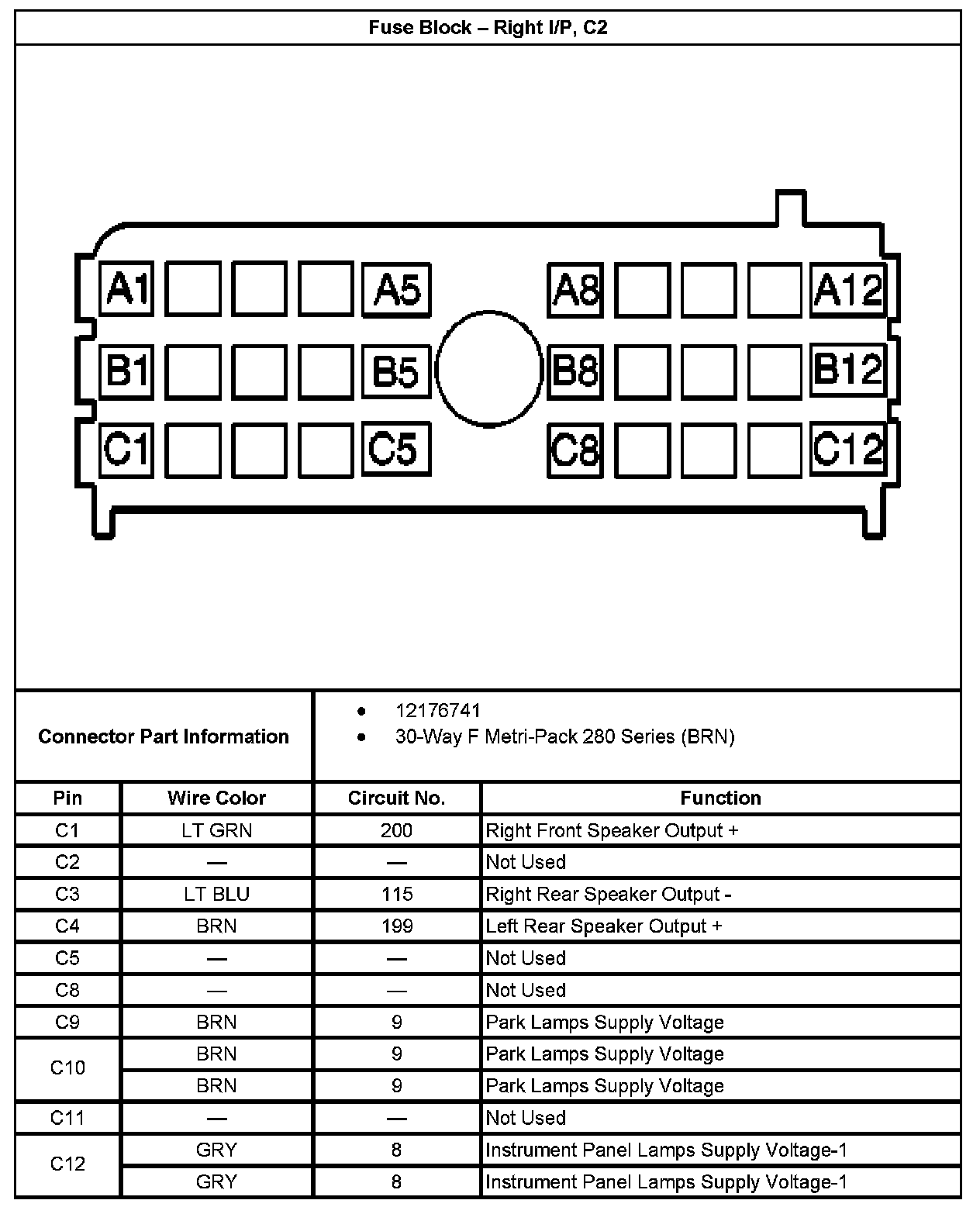

Fuse Block - Right I/P, C2 Part 2:
