Fuse Block - Left I/P, C3
Fuse Block - Left I/P, C3

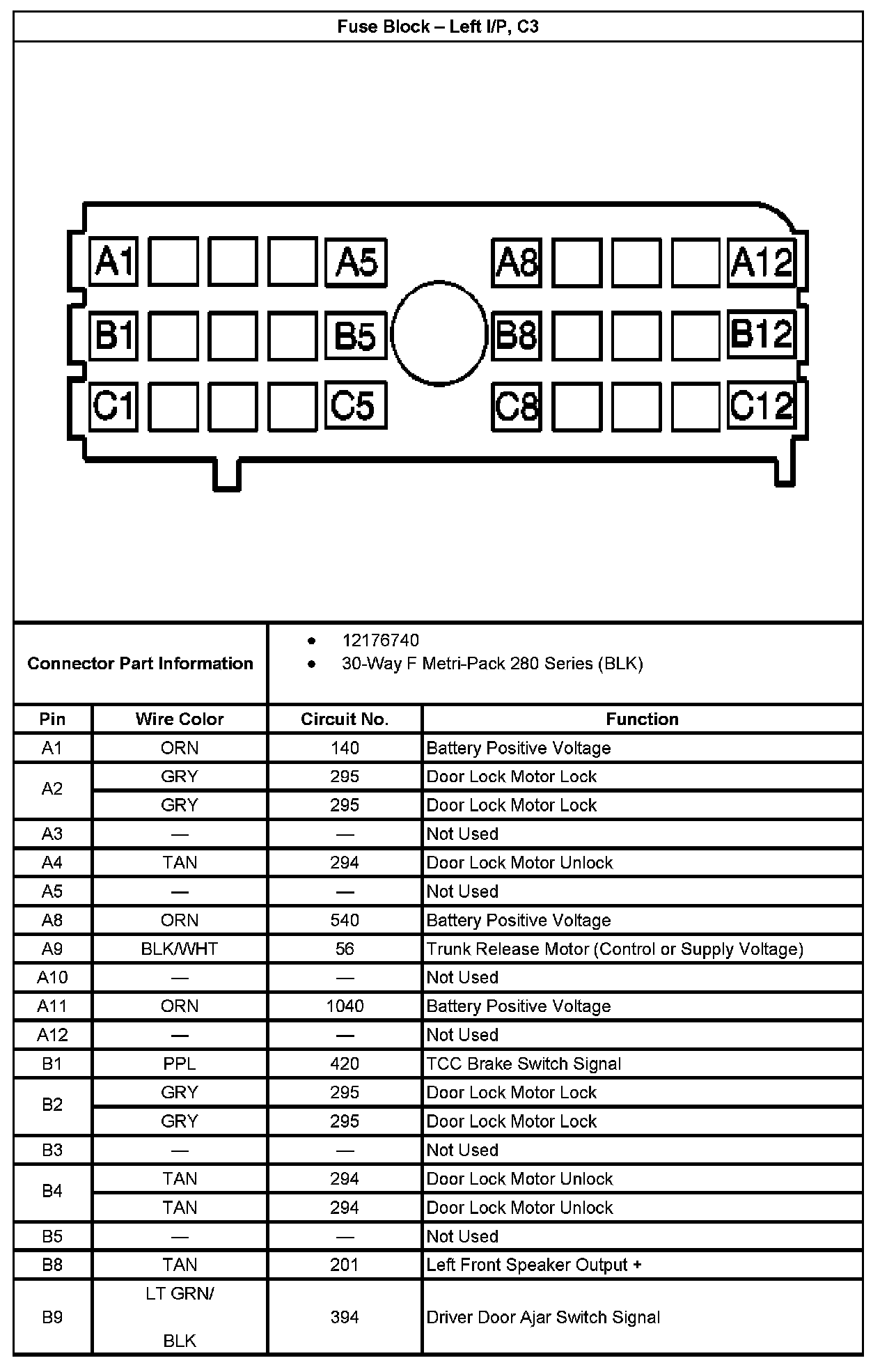

Fuse Block - Left I/P, C3 Part 1:

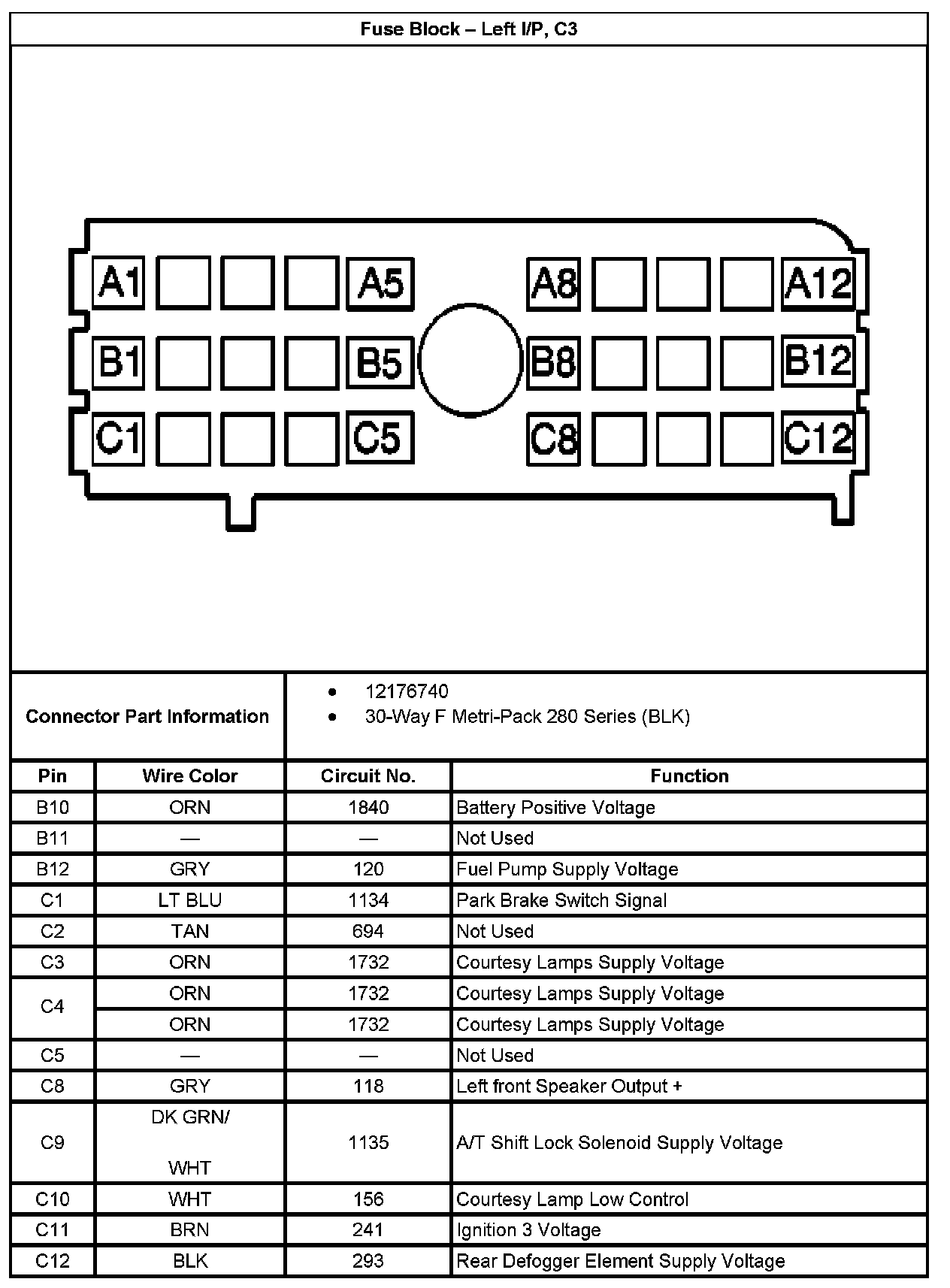

Fuse Block - Left I/P, C3 Part 2:
