Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog/Driving Lamp Switch

Fog/Driving Lamp Switch

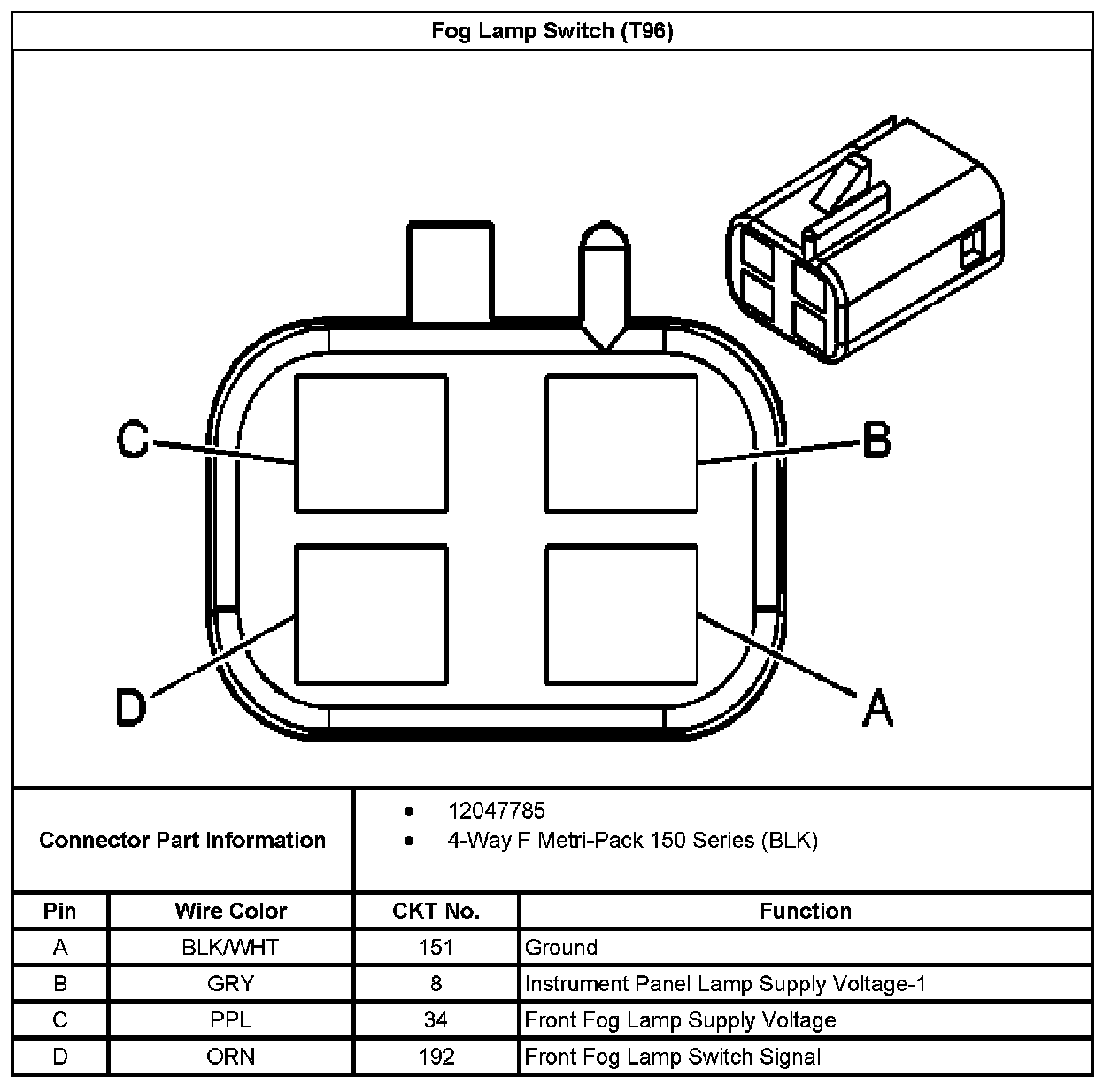

Fog Lamp Switch (With RPO Code T96):
