Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

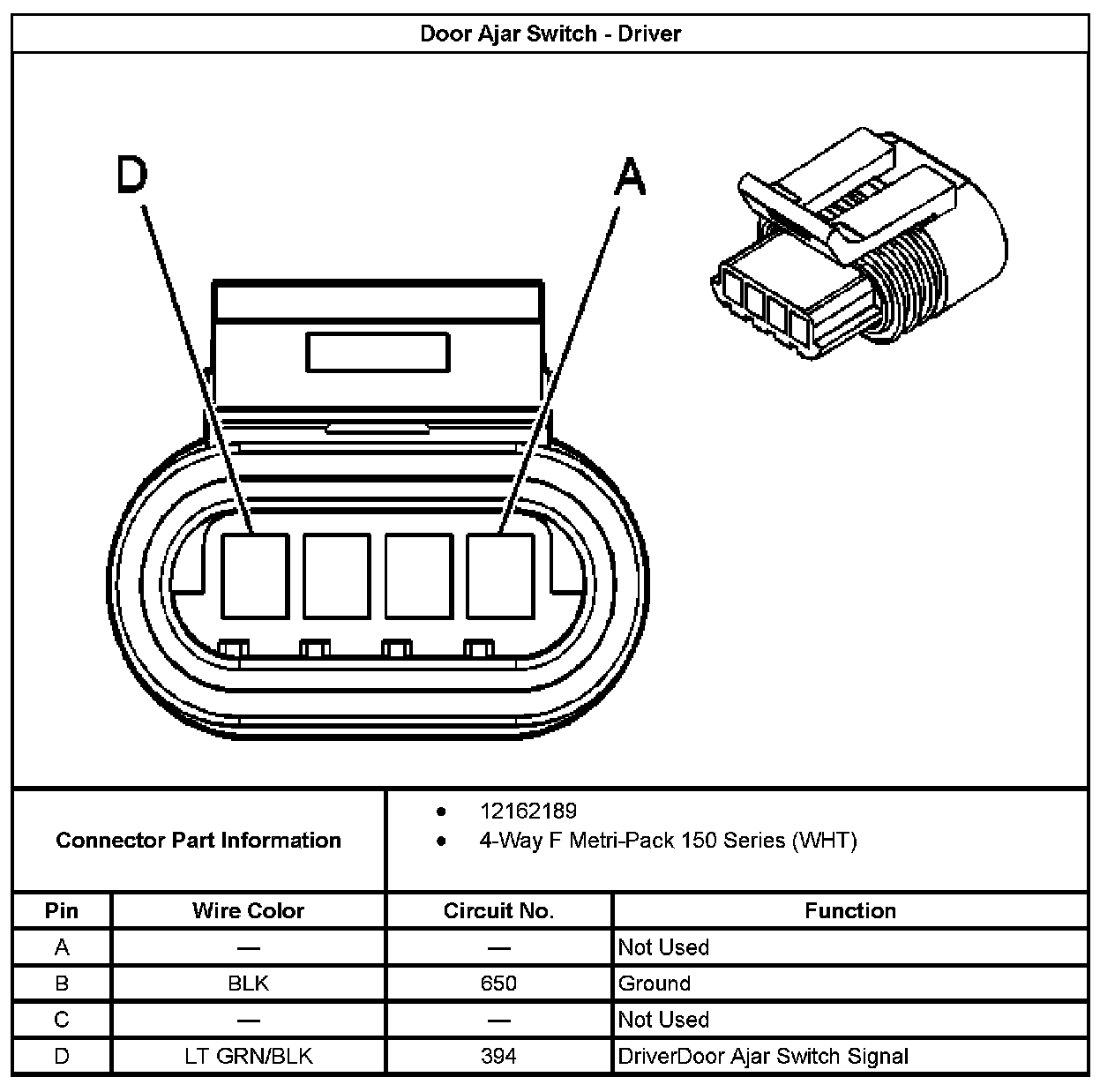

Door Ajar Switch - Driver:

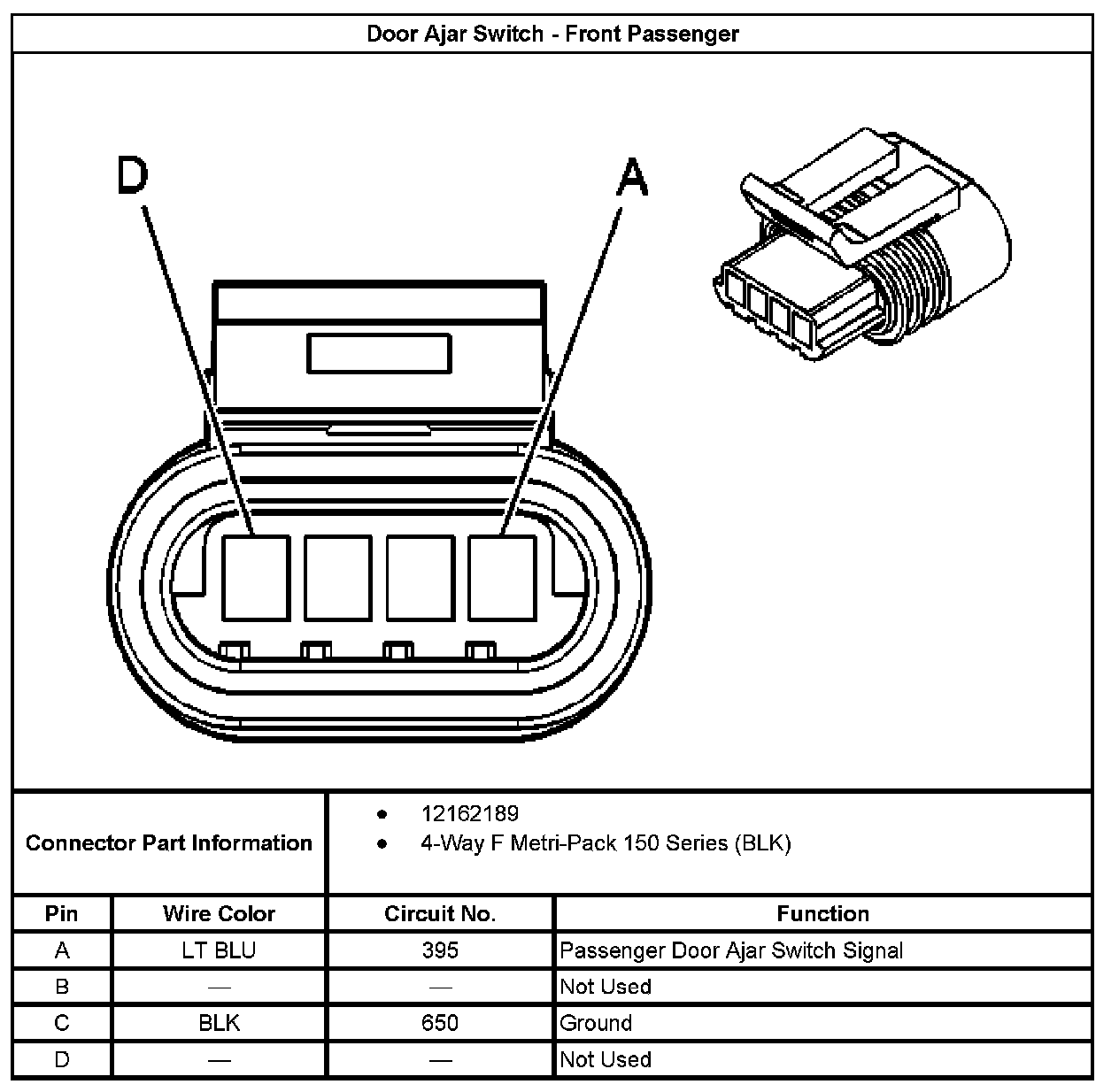

Door Ajar Switch - Front Passenger:



Door Ajar Switch - LR:

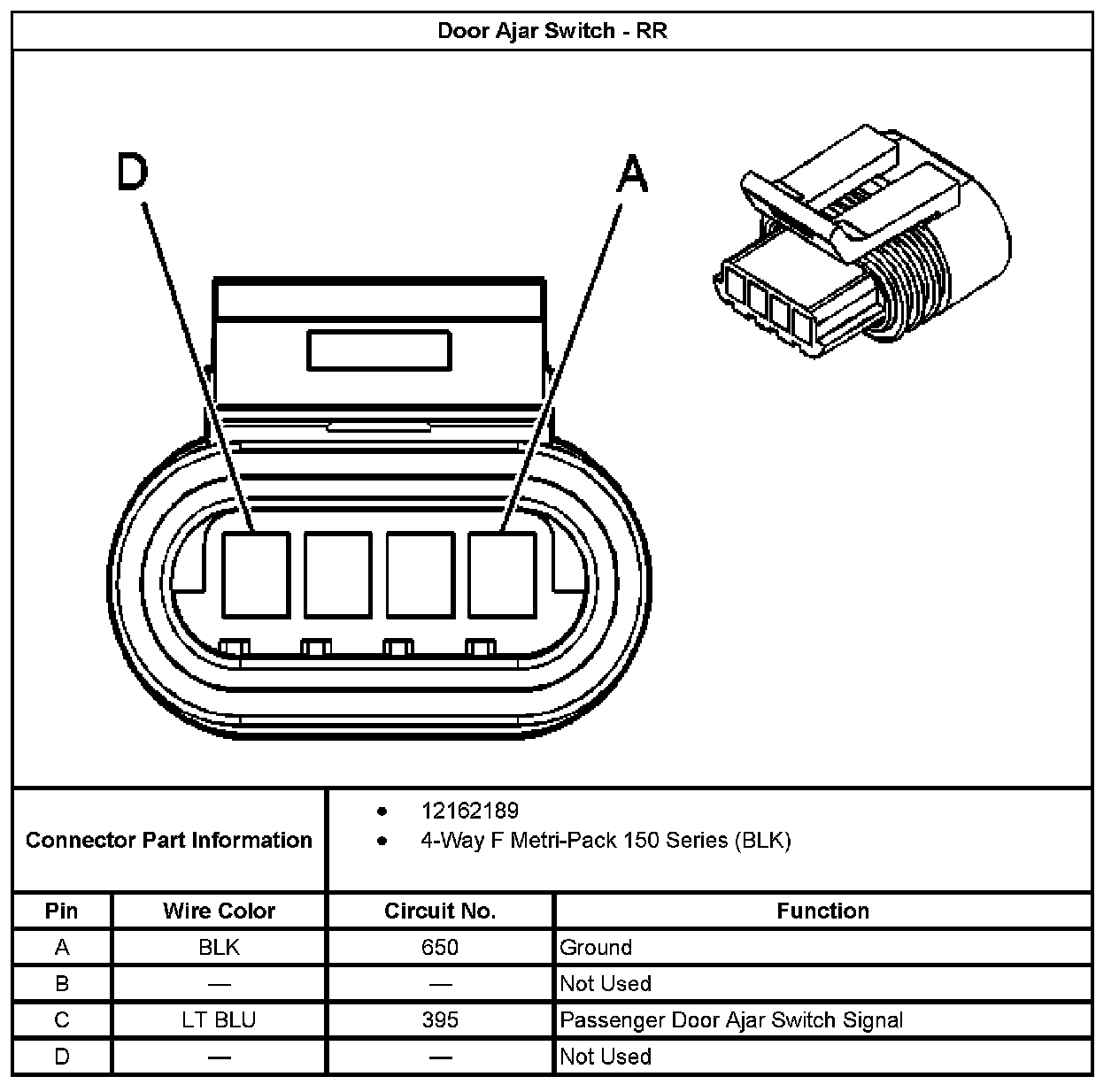

Door Ajar Switch - RR:
