Grille: Service and Repair

Grille Replacement

Removal Procedure

1. Open the hood.

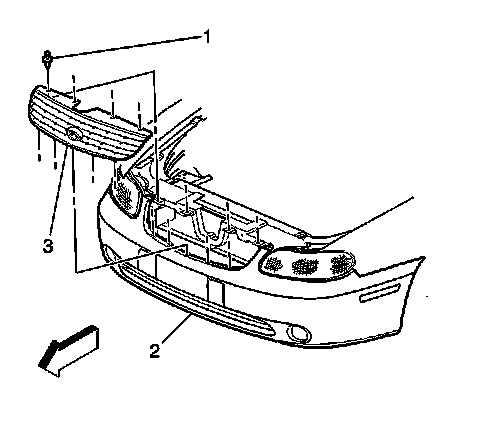

2. Remove the push-in retainers (1) from the upper edge of the grille.
3. Disconnect the grille (3) from the front bumper fascia (2).




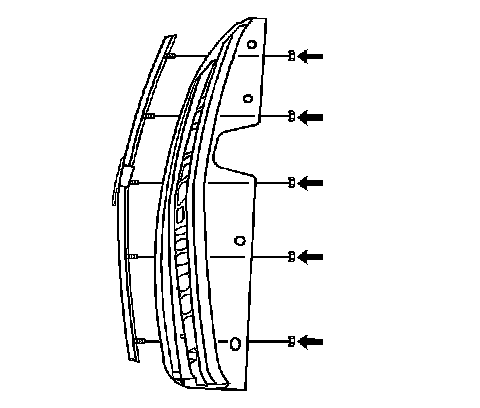

4. Remove the nuts from the grille emblem.
5. Remove the grille emblem from the grille.

Installation Procedure




1. Position the grille emblem to the grille.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the grille emblem nuts to the grille emblem.

Tighten the nuts to 1 N.m (9 lb in).




3. Install the grille (3) to the front bumper fascia (2).
4. Install the push-in retainers (1) along the upper edge of the grille.
5. Close the hood.
