Home >> Chevrolet >> 2004 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams

Windows: Diagrams

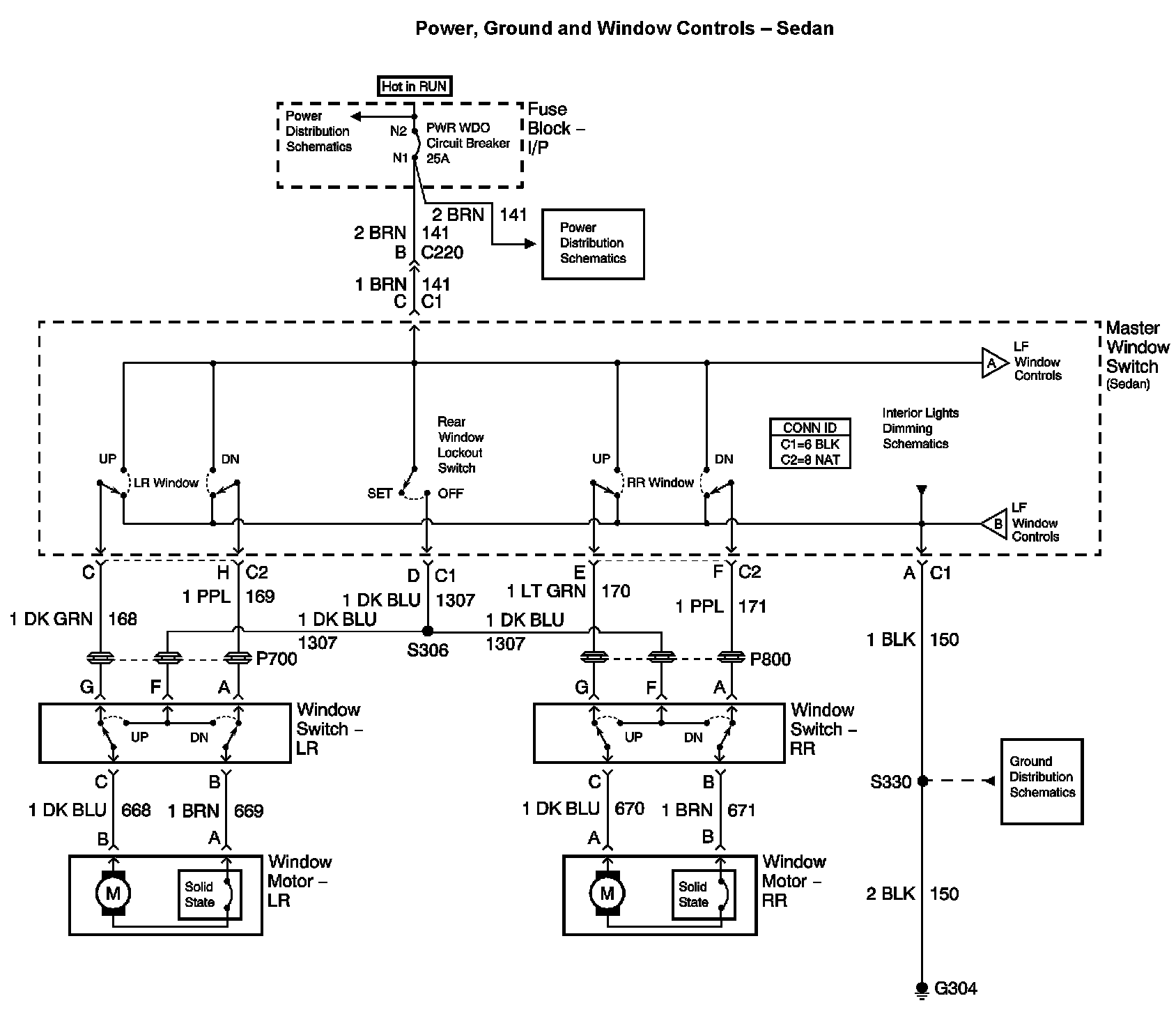

Power Window Diagram 1:

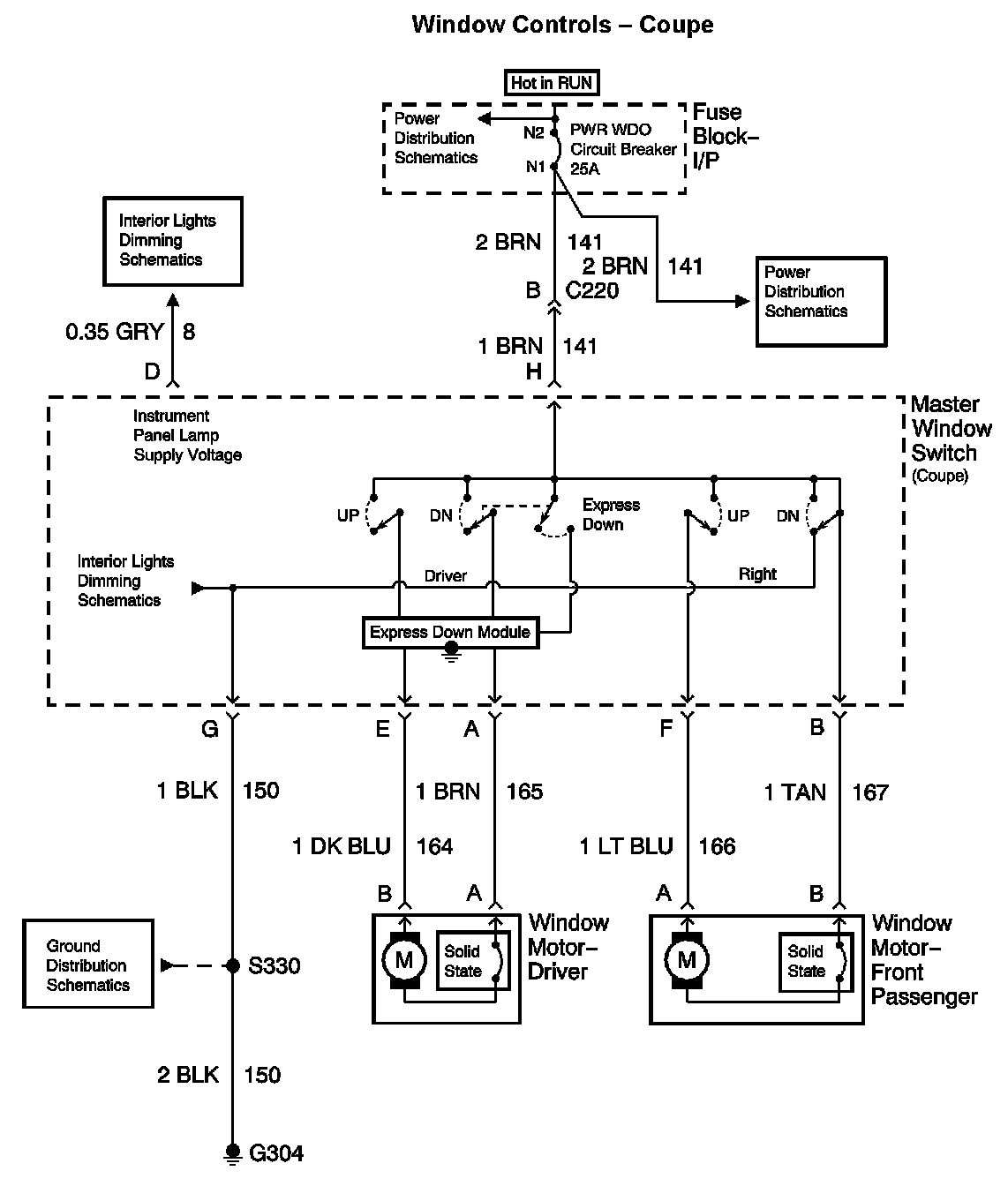

Power Window Diagram 2:

Power Window Diagram 3:
