Blower Motor Relay: Service and Repair

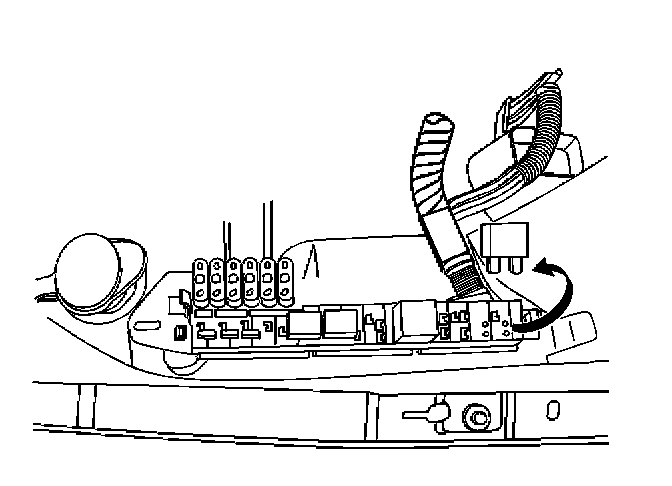

REMOVAL PROCEDURE
1. Remove the electrical center cover.




2. Remove the blower motor relay from the electrical center.

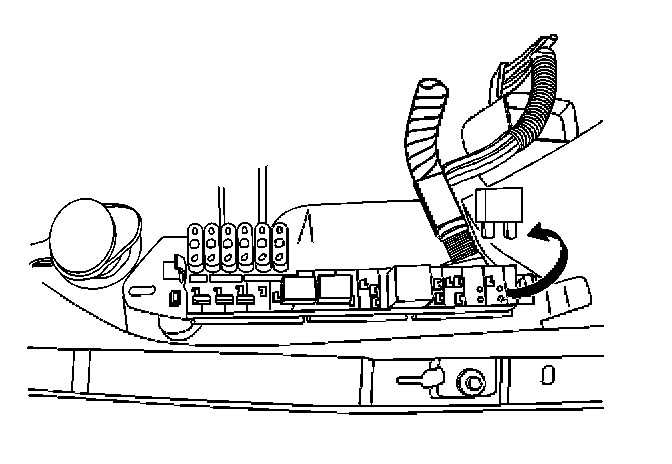

INSTALLATION PROCEDURE




1. Install the blower motor relay to the electrical center.
2. Install the electrical center cover.
