Turn Signal Lamp
Turn Signal Lamp

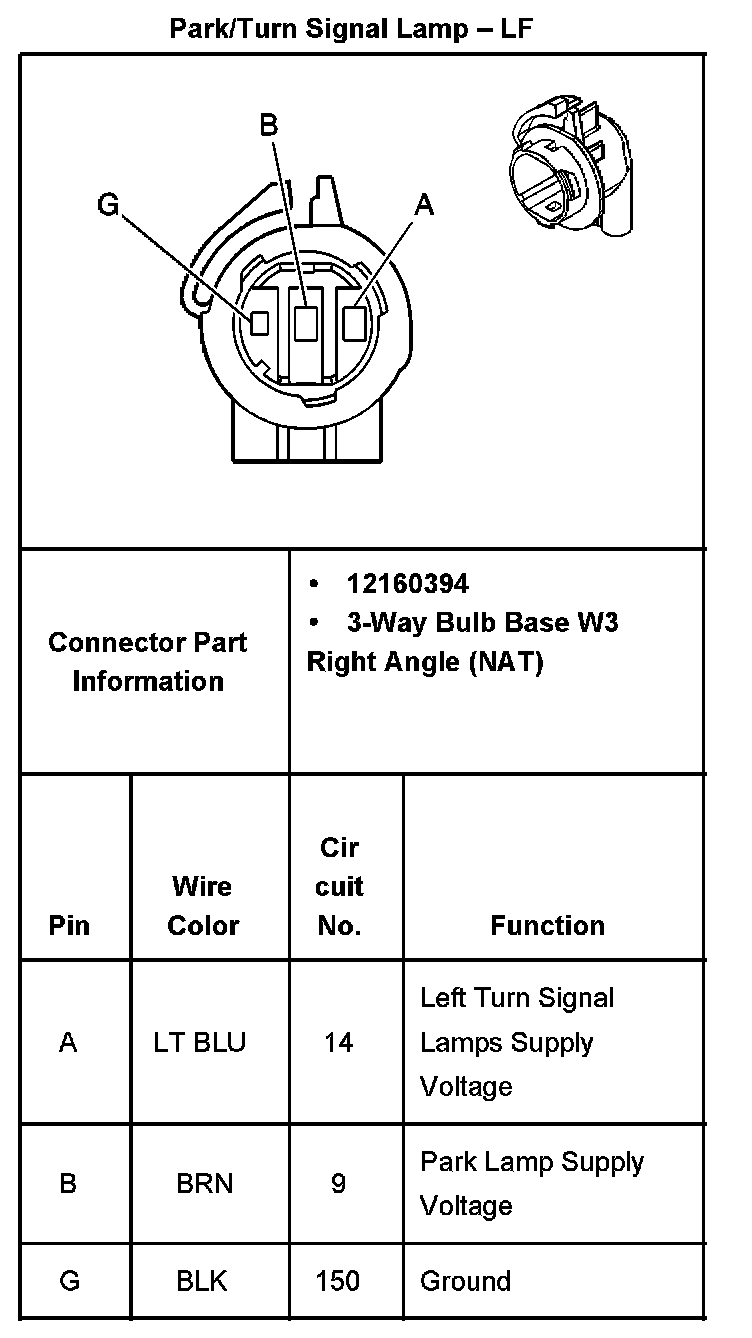

Park/Turn Signal Lamp - LF:

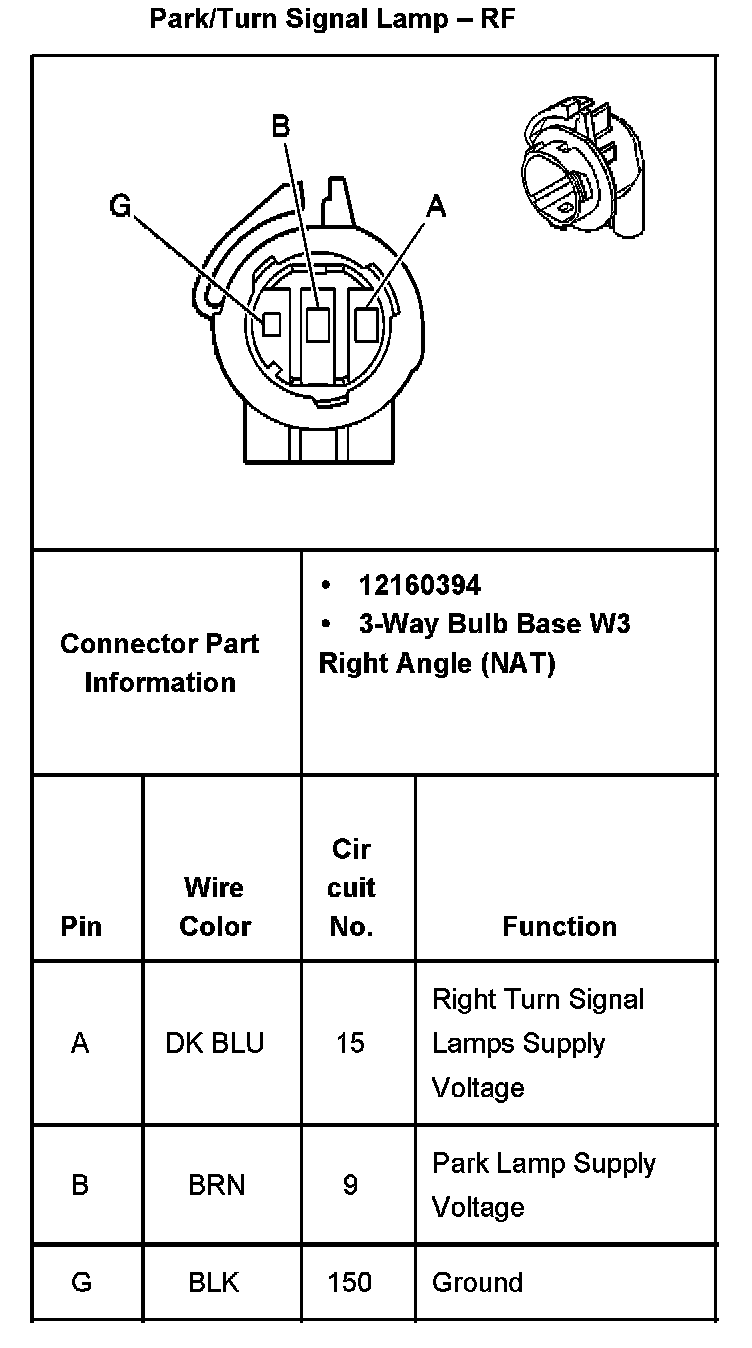

Park/Turn Signal Lamp - RF:
Stop/Turn Lamp - Left:
Stop/Turn Lamp - Right:
