Home >> Chevrolet >> 2004 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp

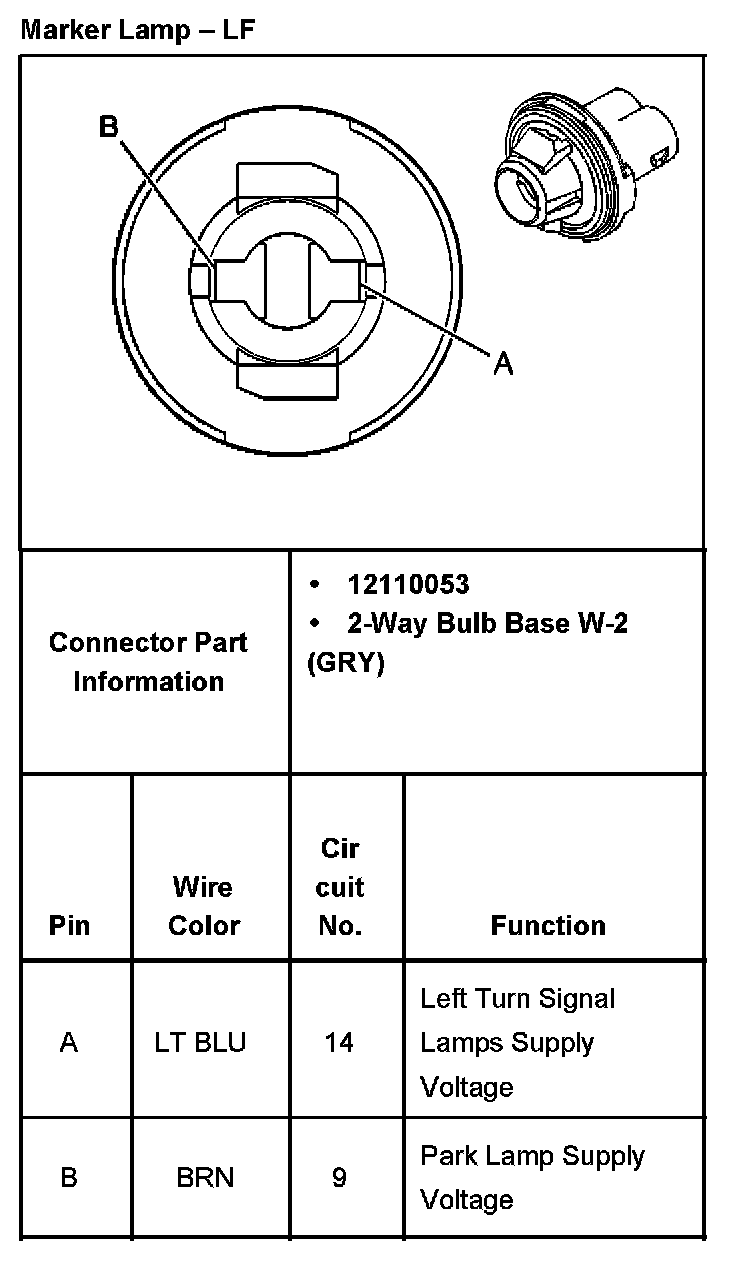

Marker Lamp - LF:

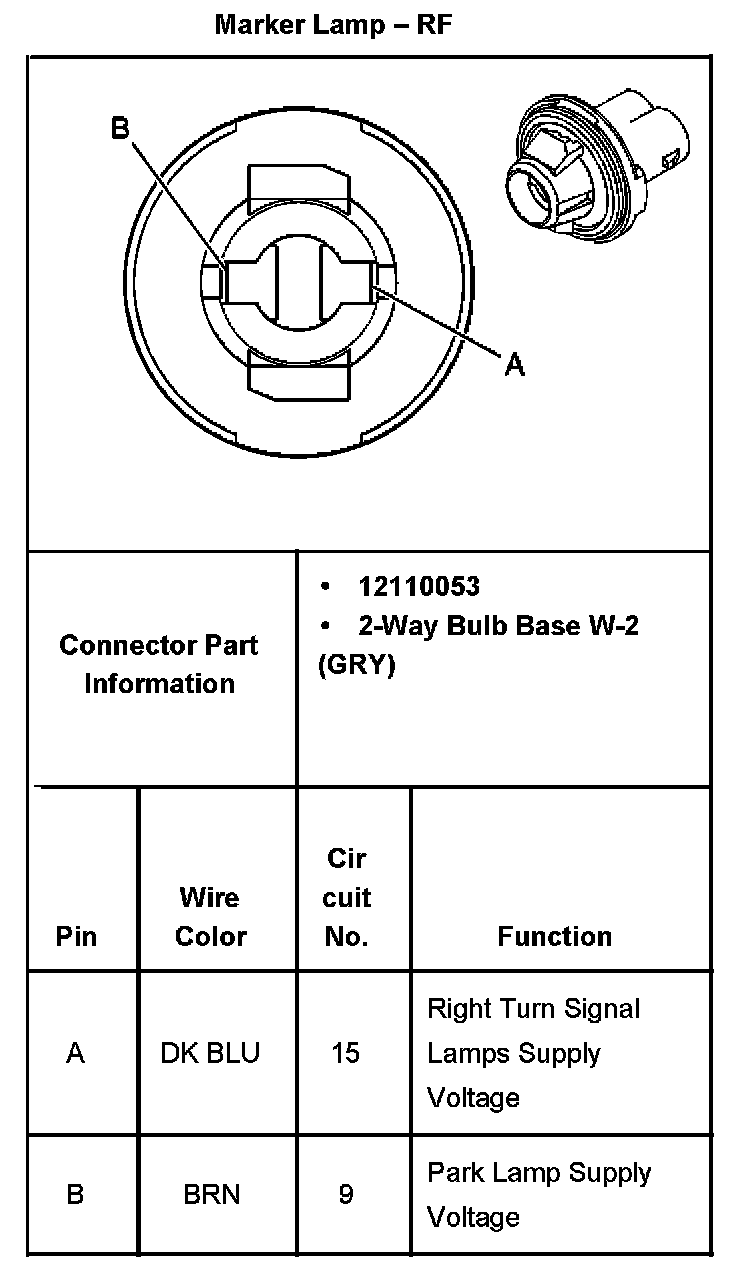

Marker Lamp - RF:
