Home >> Chevrolet >> 2004 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dome Lamp

Dome Lamp

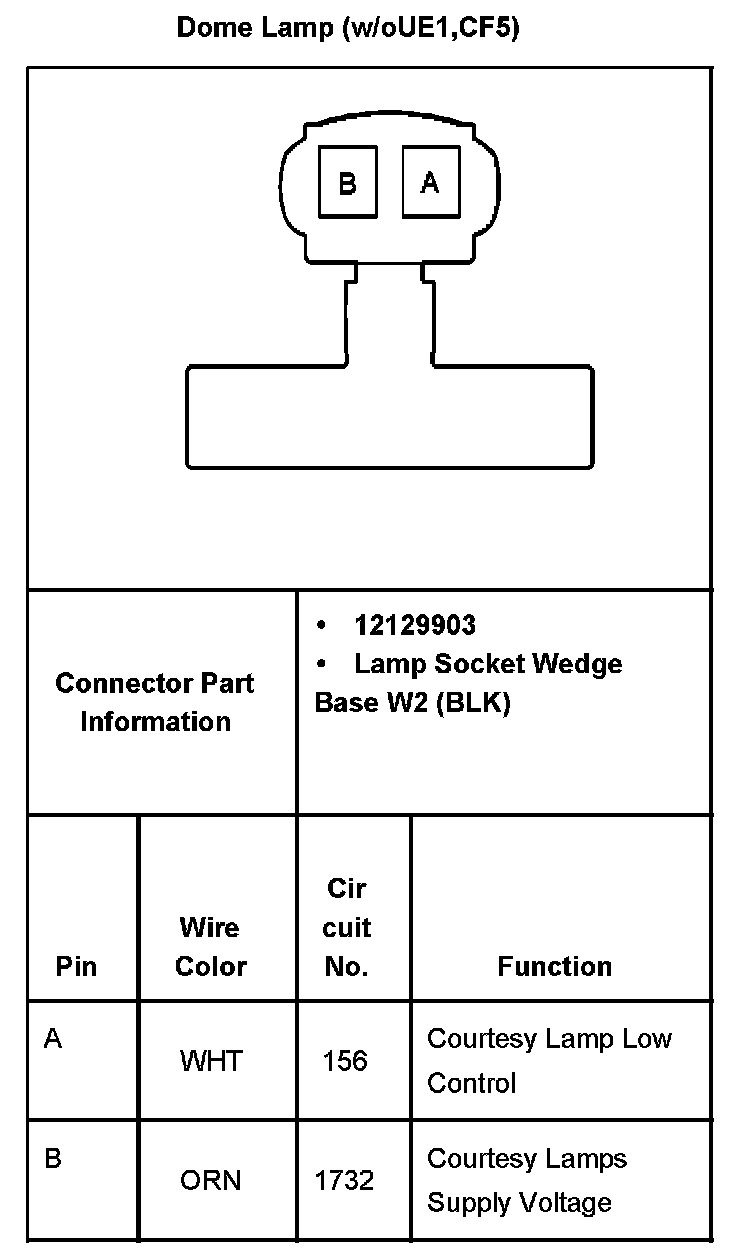

Dome Lamp (Without RPO Code UE1,CF5):

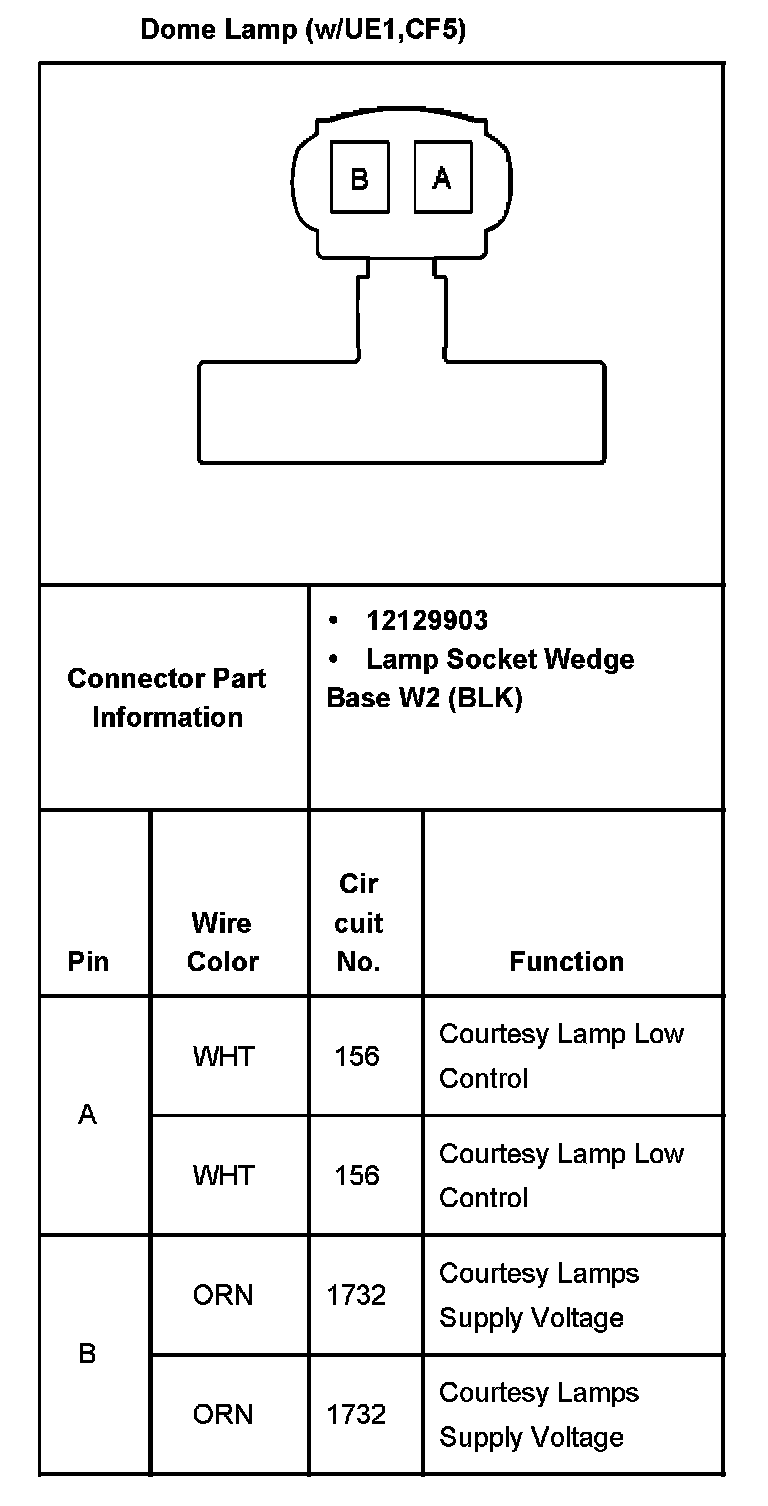

Dome Lamp (With RPO Code UE1,CF5):
