Locks: Diagrams

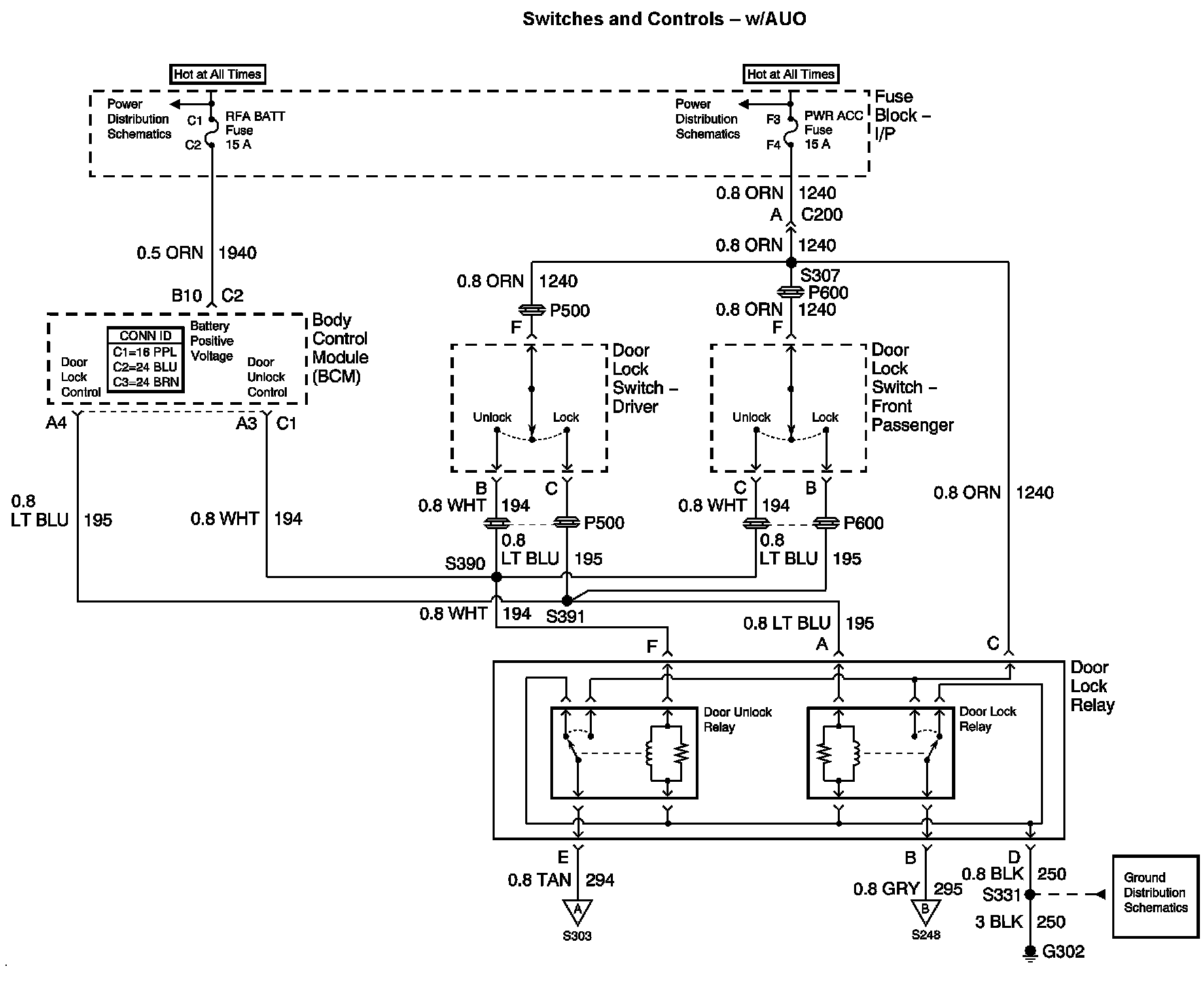

Door Lock/Indicator Diagram 1:

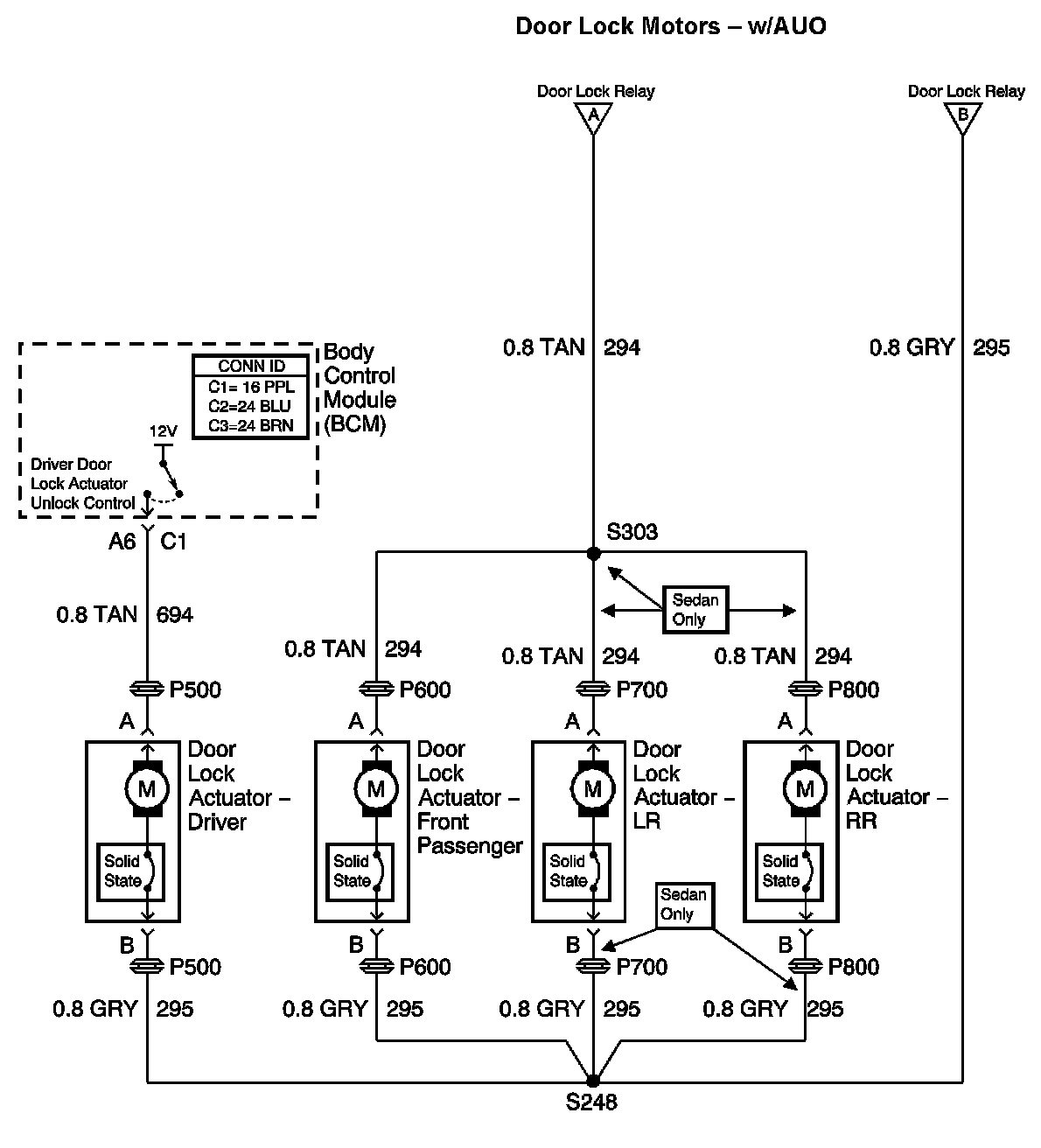

Door Lock/Indicator Diagram 2:

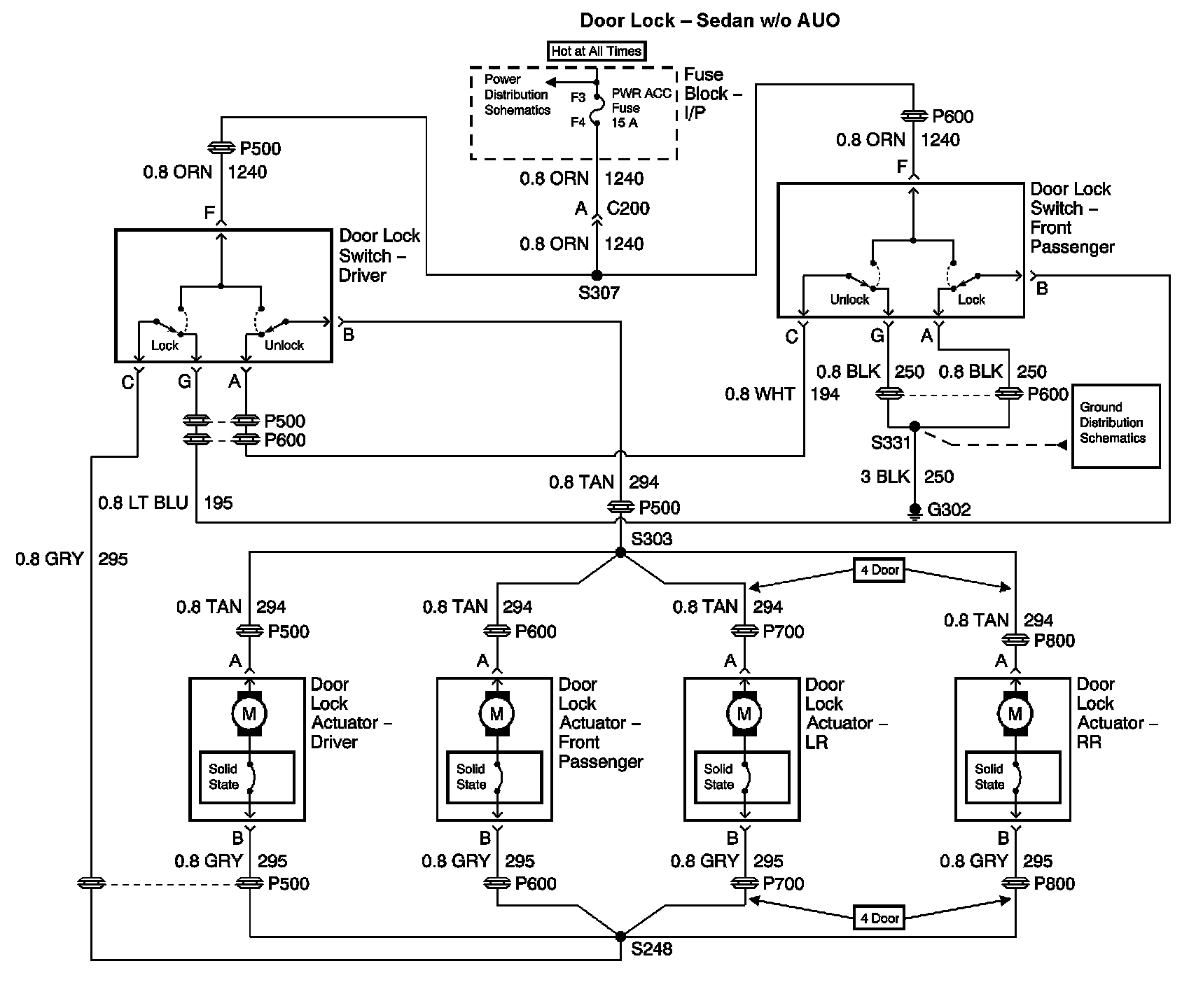

Door Lock/Indicator Diagram 3:
