Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Instrument Panel Fuse Block Views >> Instrument Panel Fuse Block

Instrument Panel Fuse Block

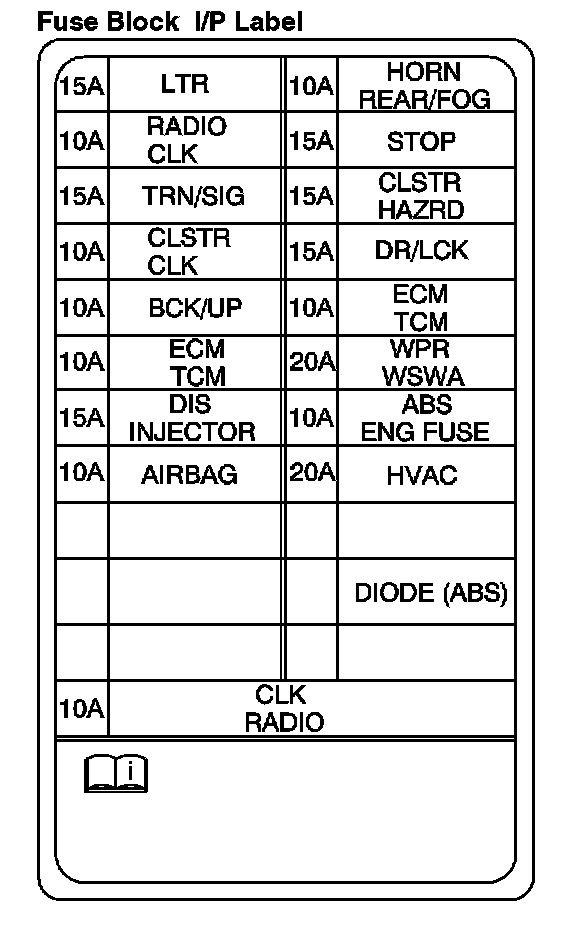

Location View:

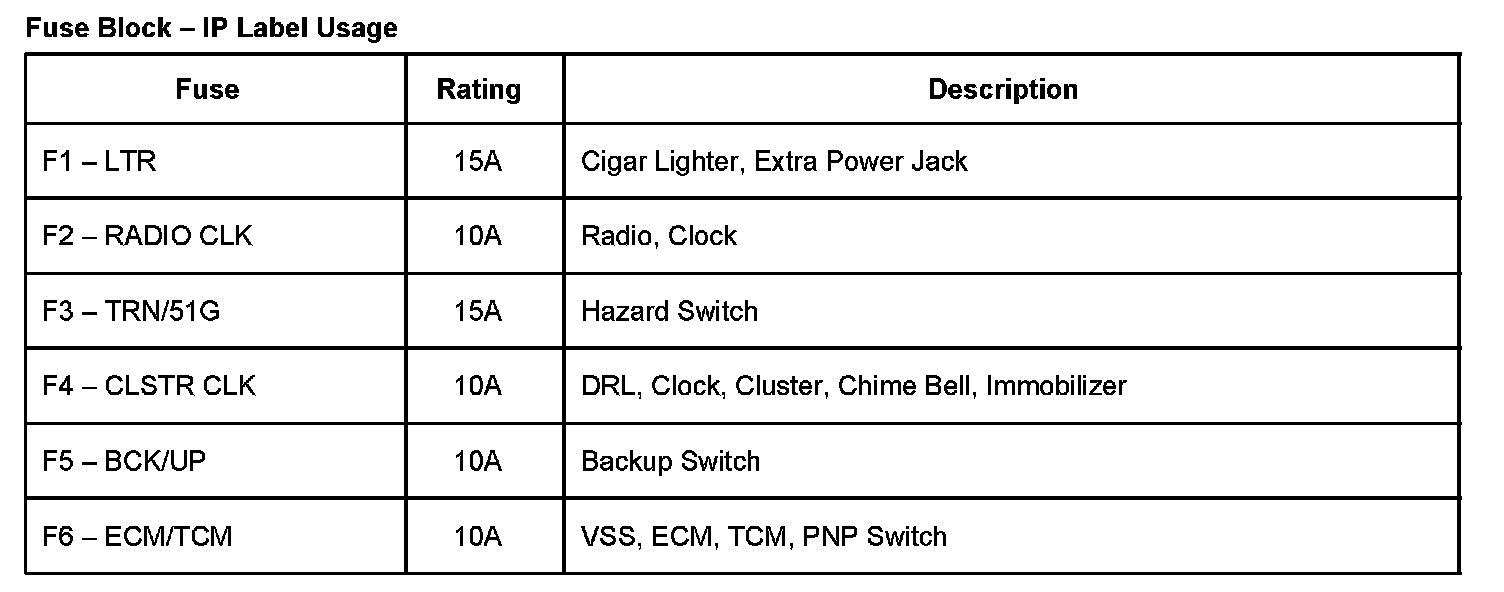

Application Table Part 1:

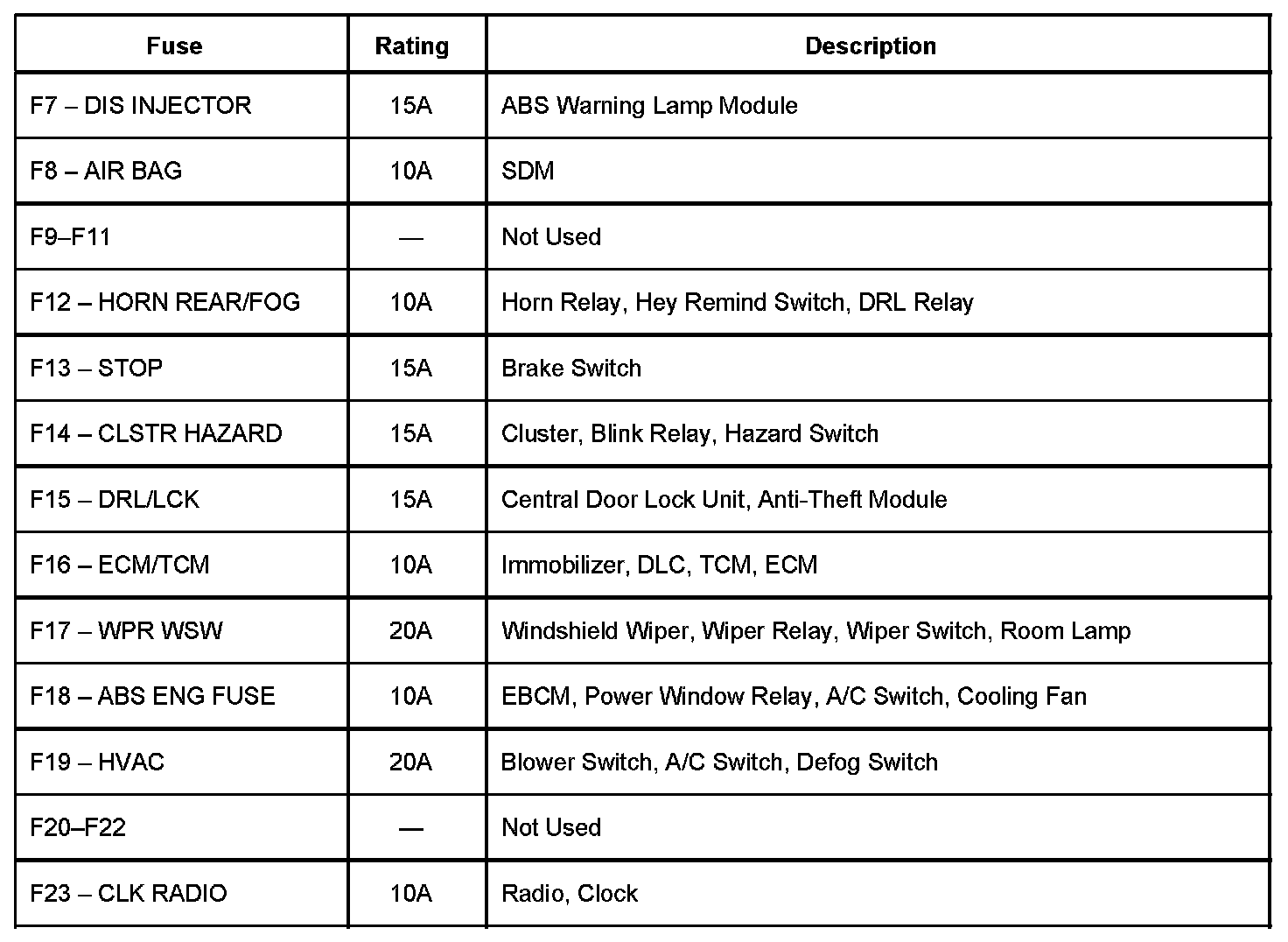

Application Table Part 2:
