Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems >> Transmission Control Module (TCM) - A

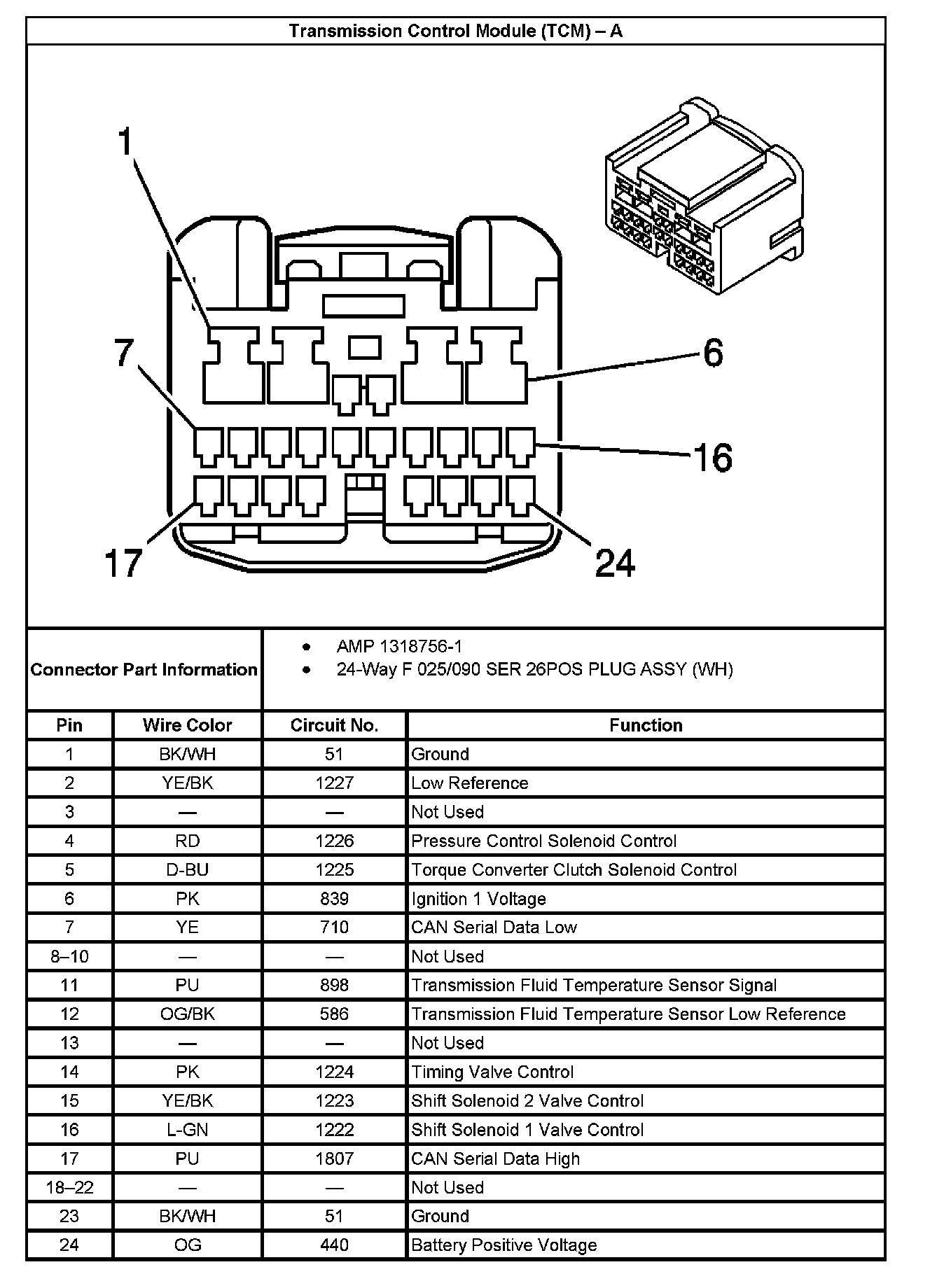

Transmission Control Module (TCM) - A
