Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light

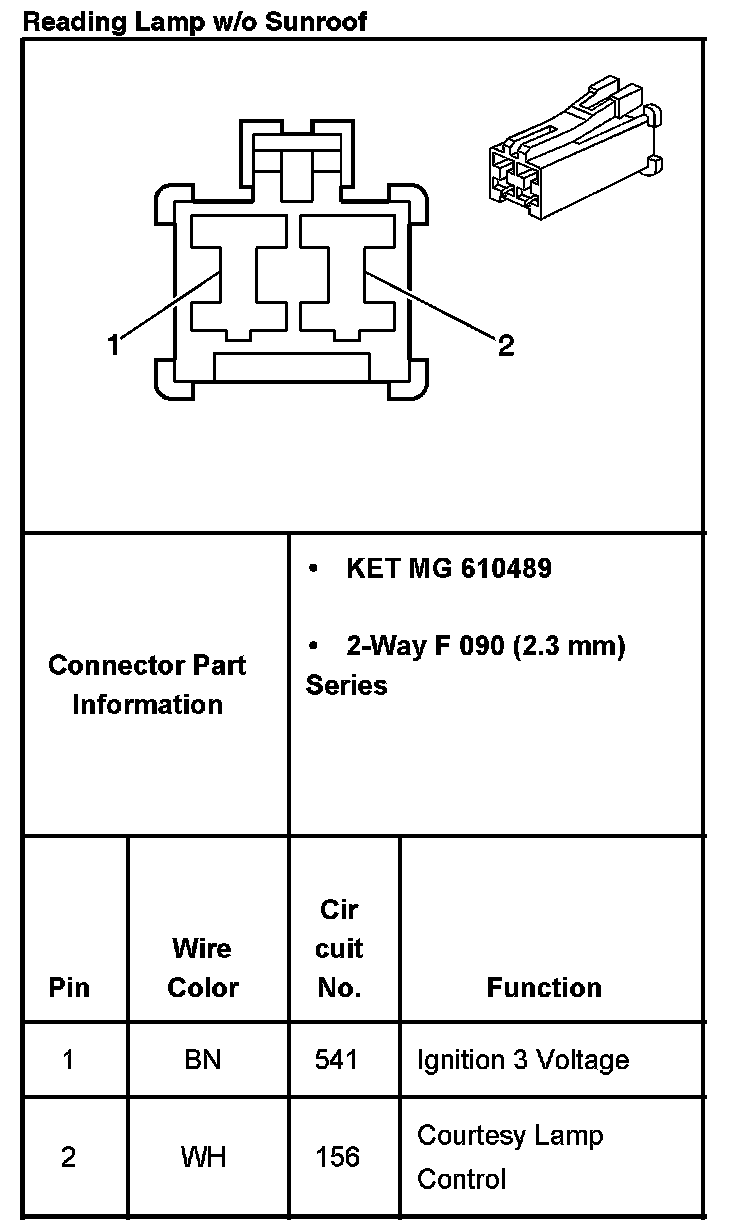

Reading Lamp W/O Sunroof:
