Impact Sensor
Impact Sensor

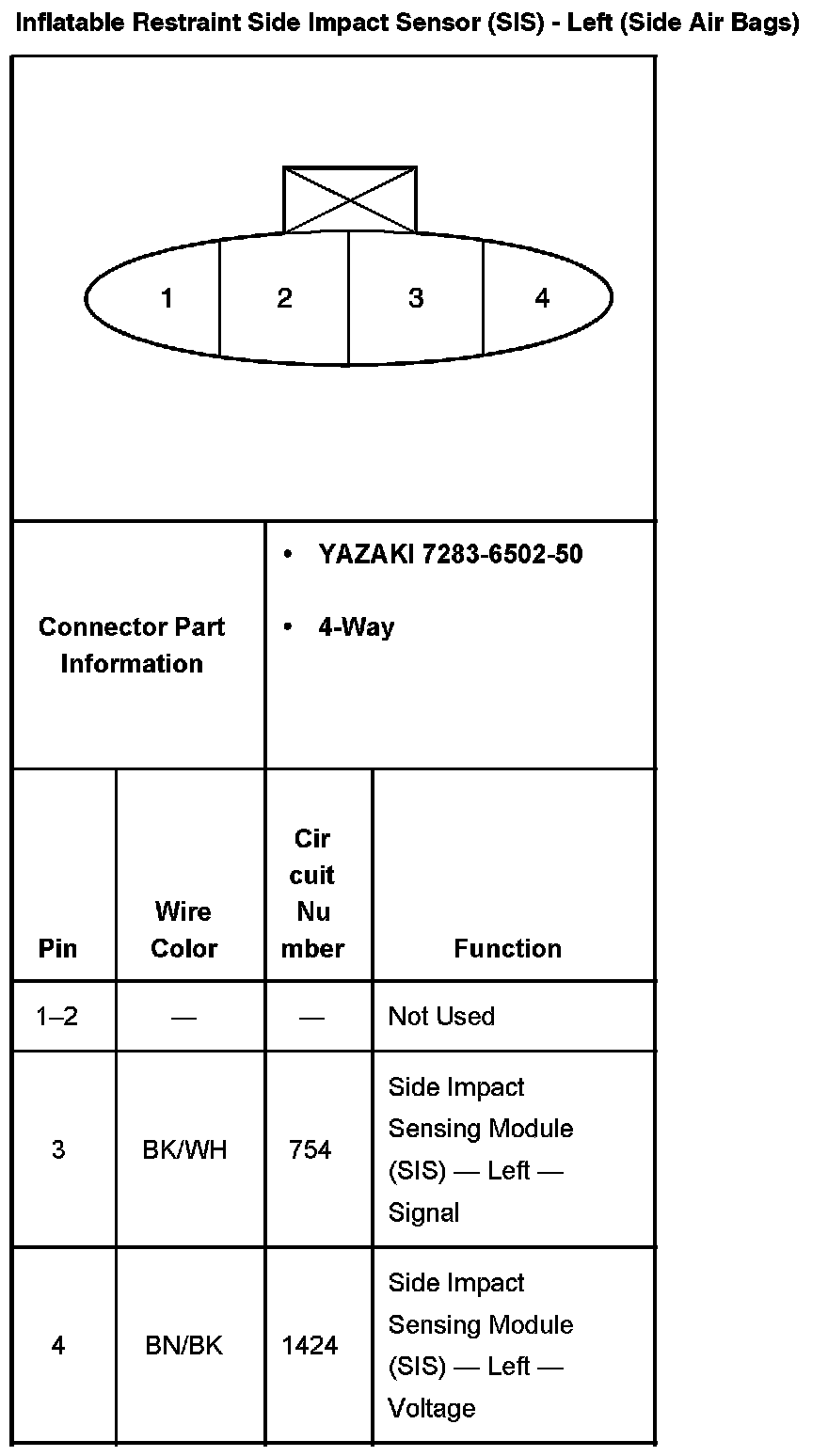

Inflatable Restraint Side Impact Sensor (SIS) - Left (Side Air Bags):

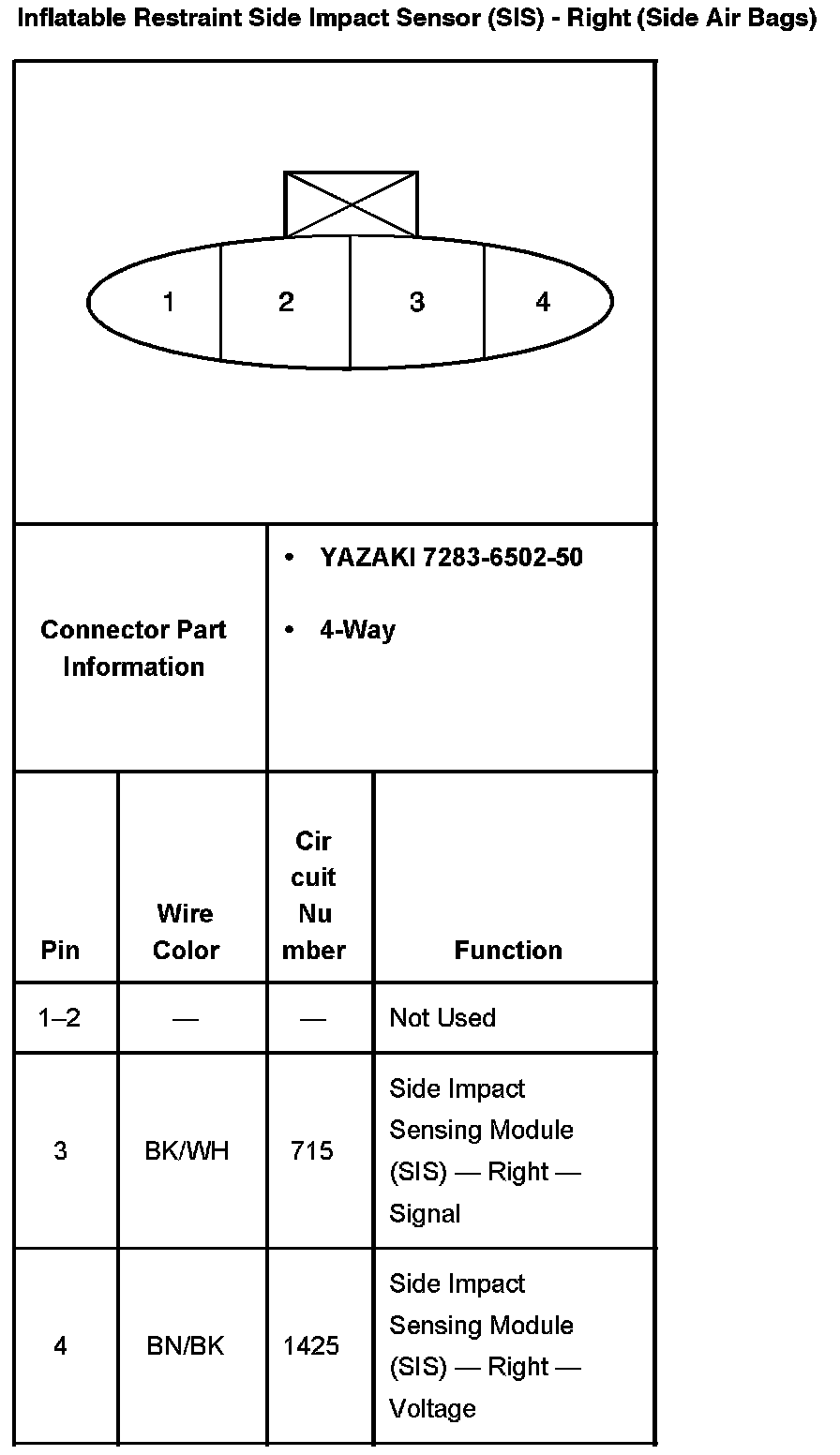

Inflatable Restraint Side Impact Sensor (SIS) - Right (Side Air Bags):
