Instrument Panel Fuse Block

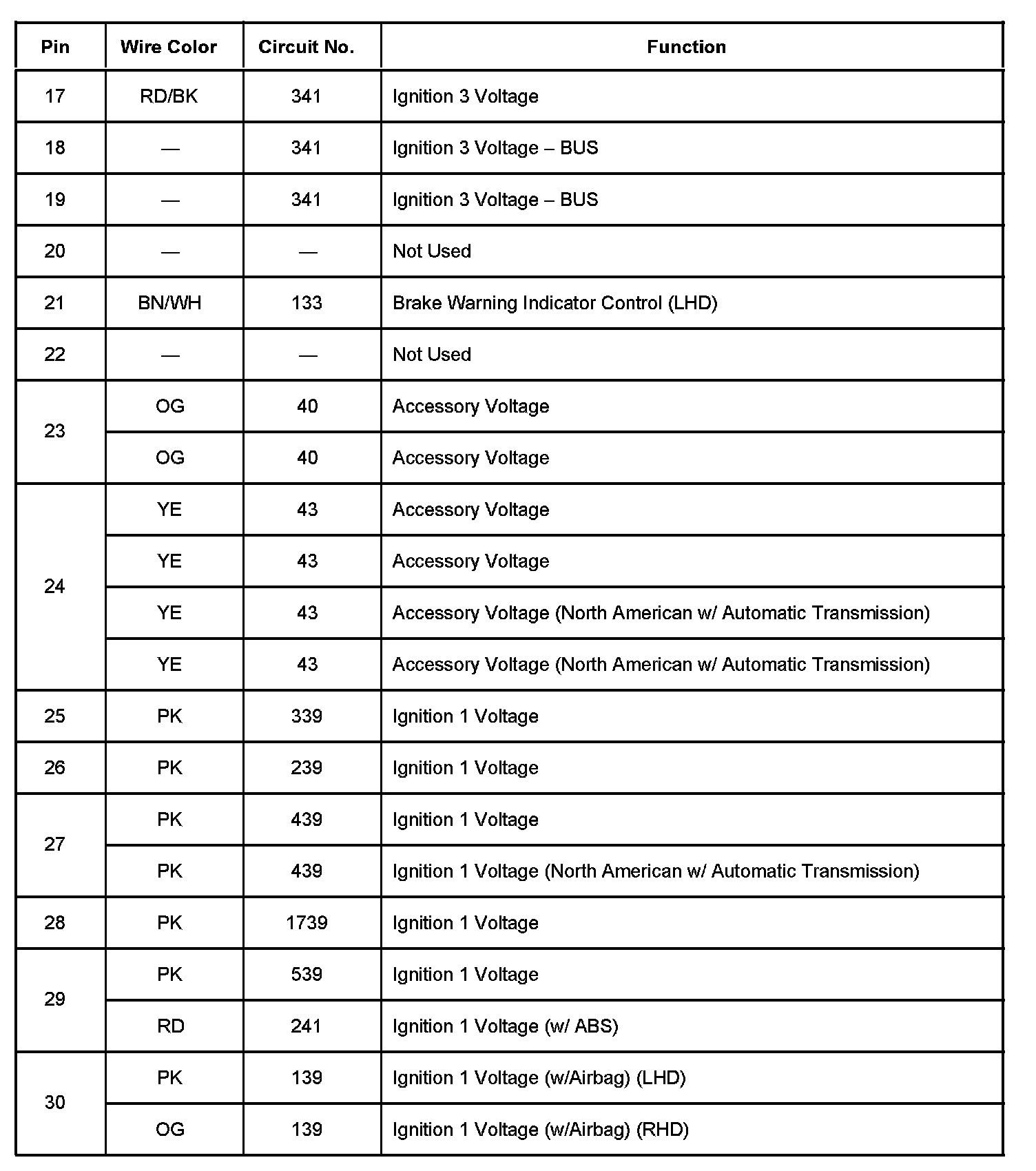

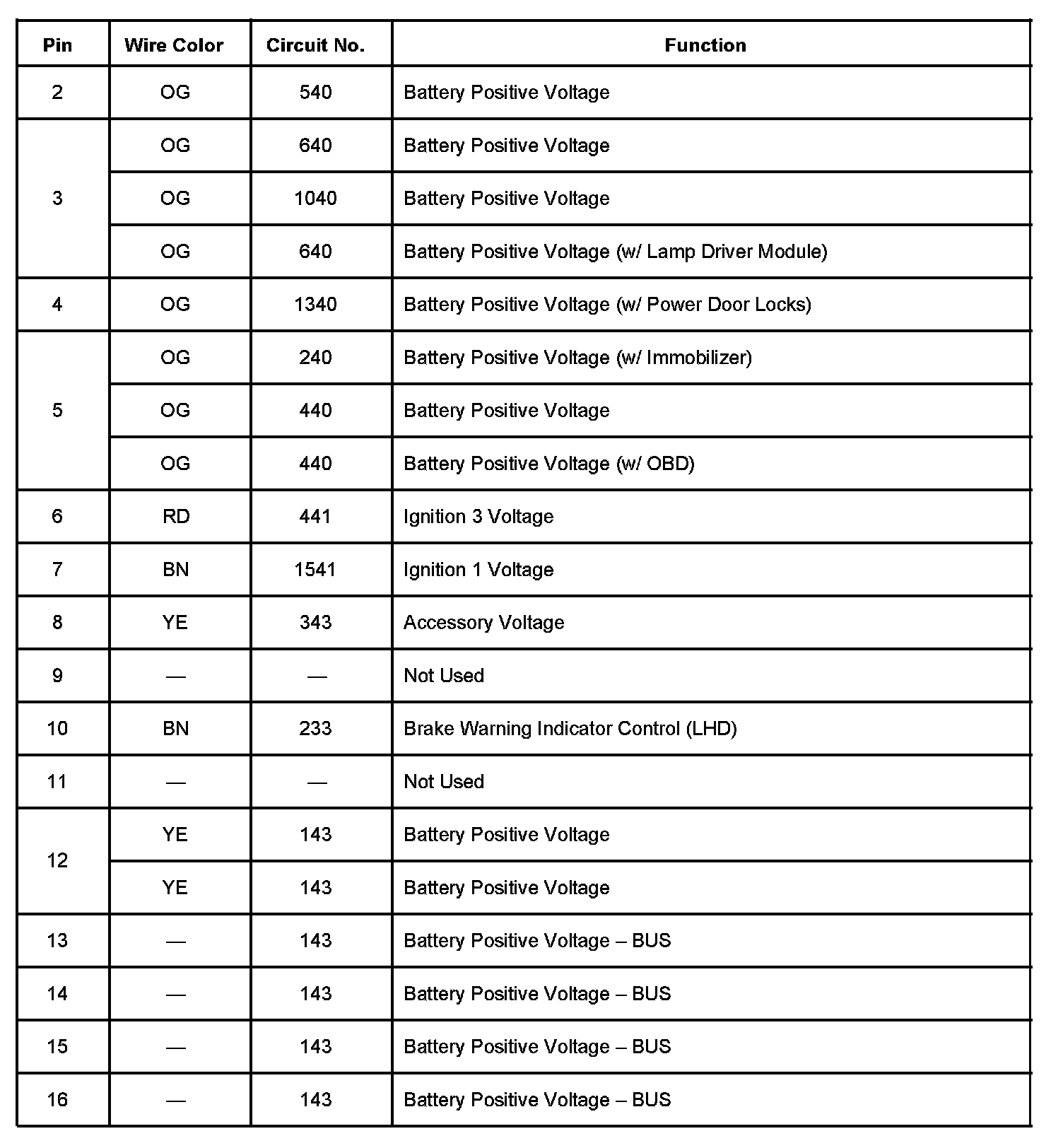

Fuse Block I/P Wire Entry, Part 1:



Fuse Block I/P Wire Entry, Part 2:



Fuse Block I/P Wire Entry, Part 3:



Fuse Block I/P Wire Entry, Part 4:
