Engine Control Module (ECM) - M

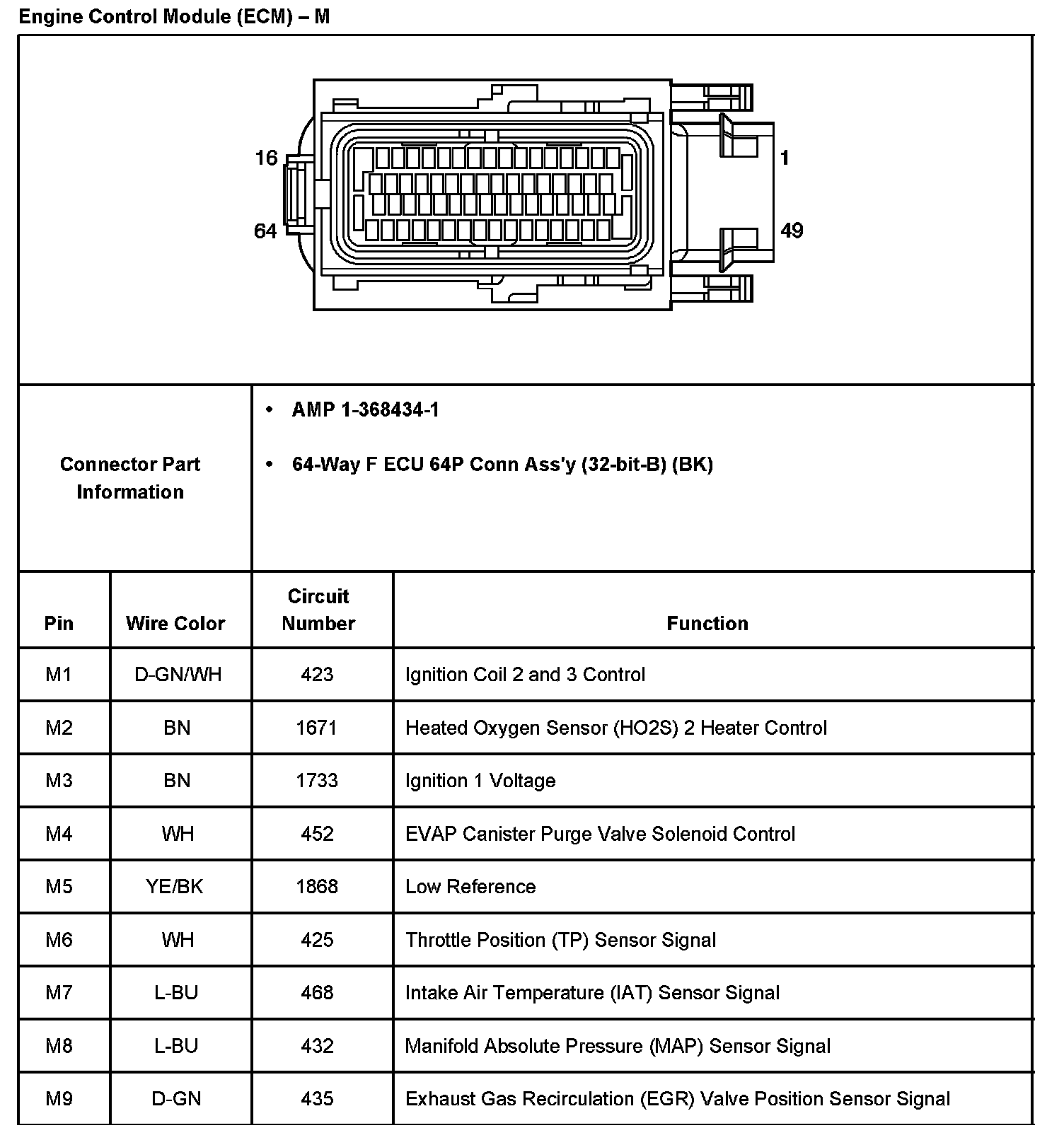

Engine Control Module (ECM) - M Part 1:

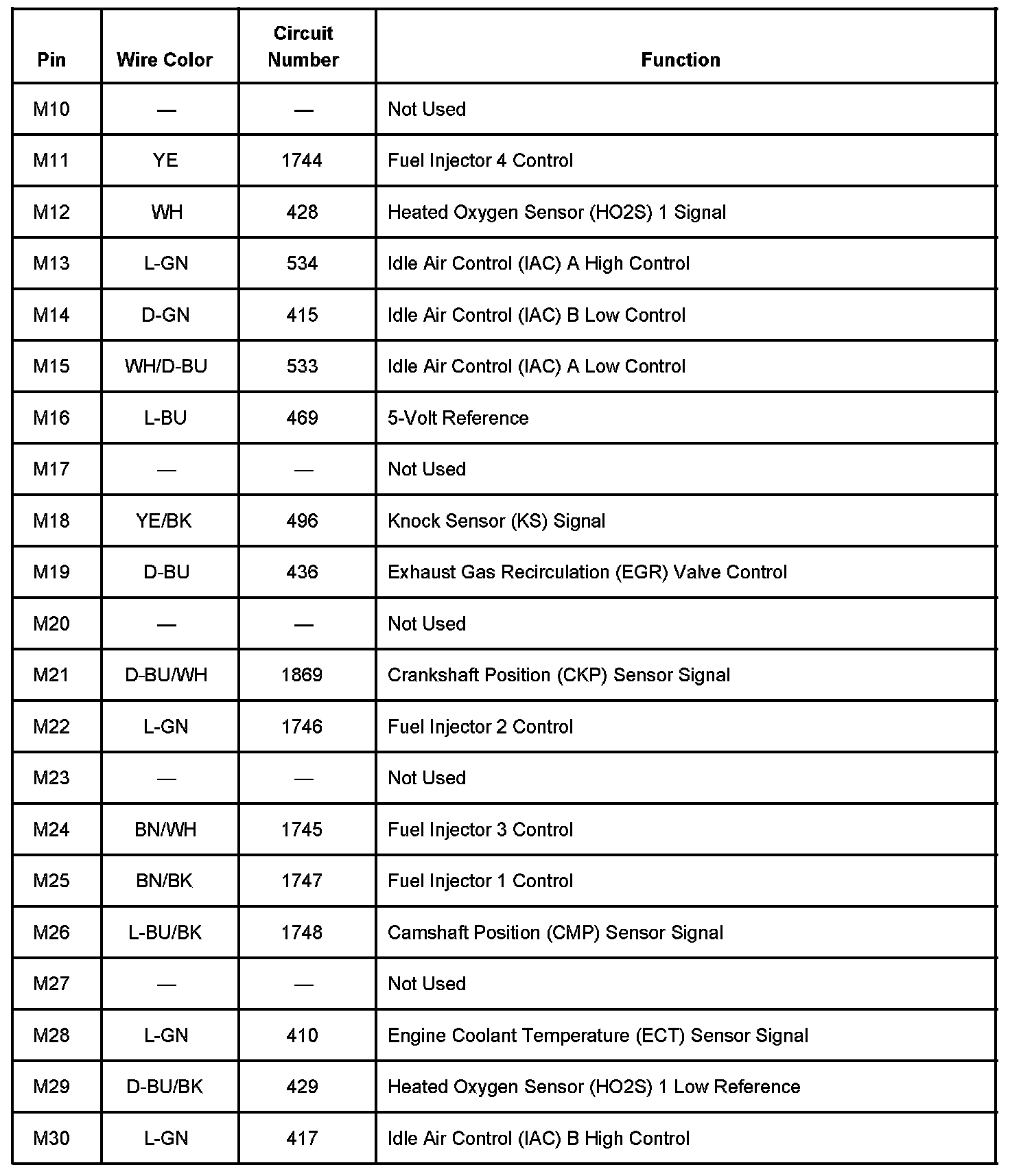

Engine Control Module (ECM) - M Part 2:

Engine Control Module (ECM) - M Part 3:
