Engine Control Module (ECM) - K

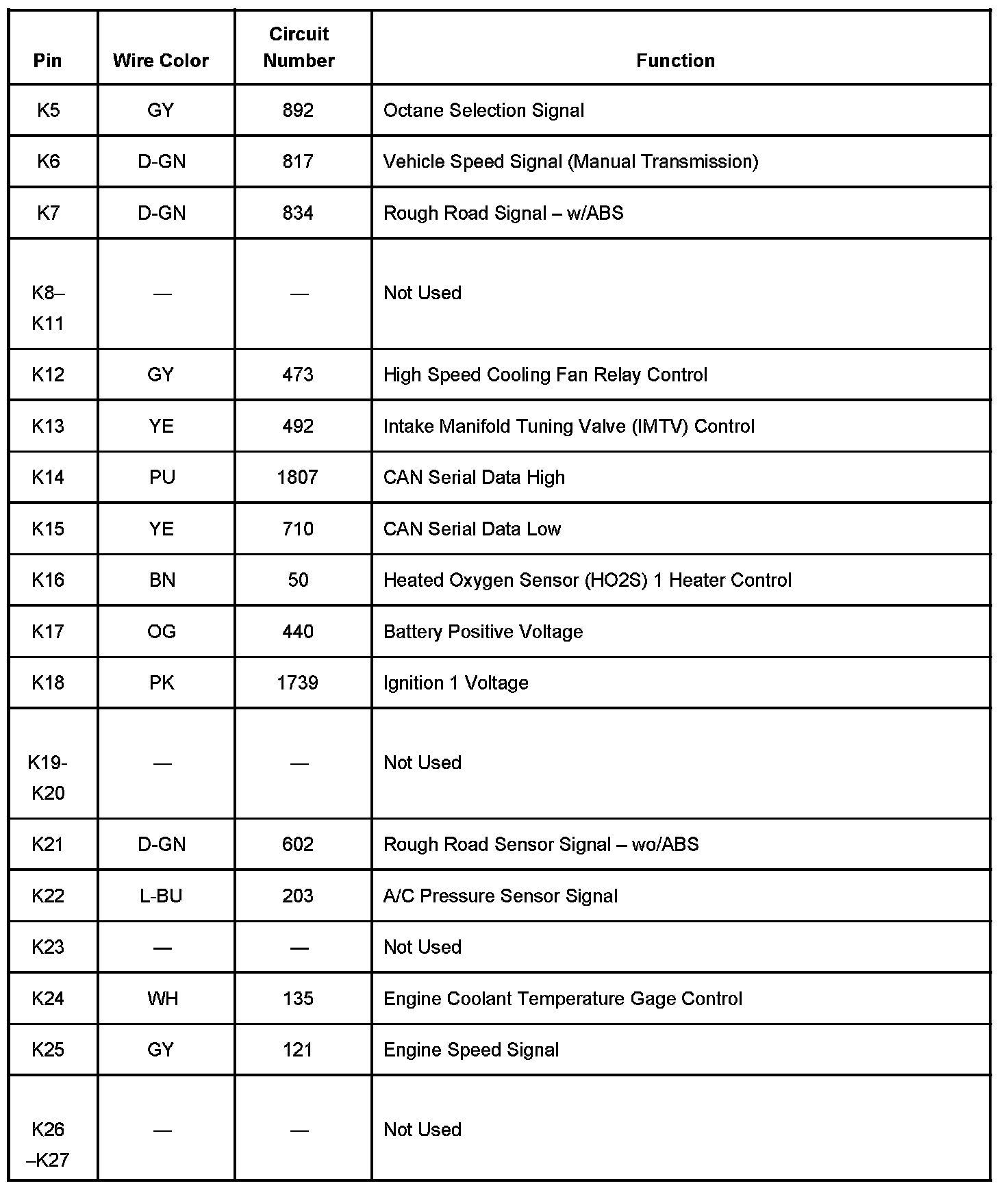

Engine Control Module (ECM) - K Part 1:

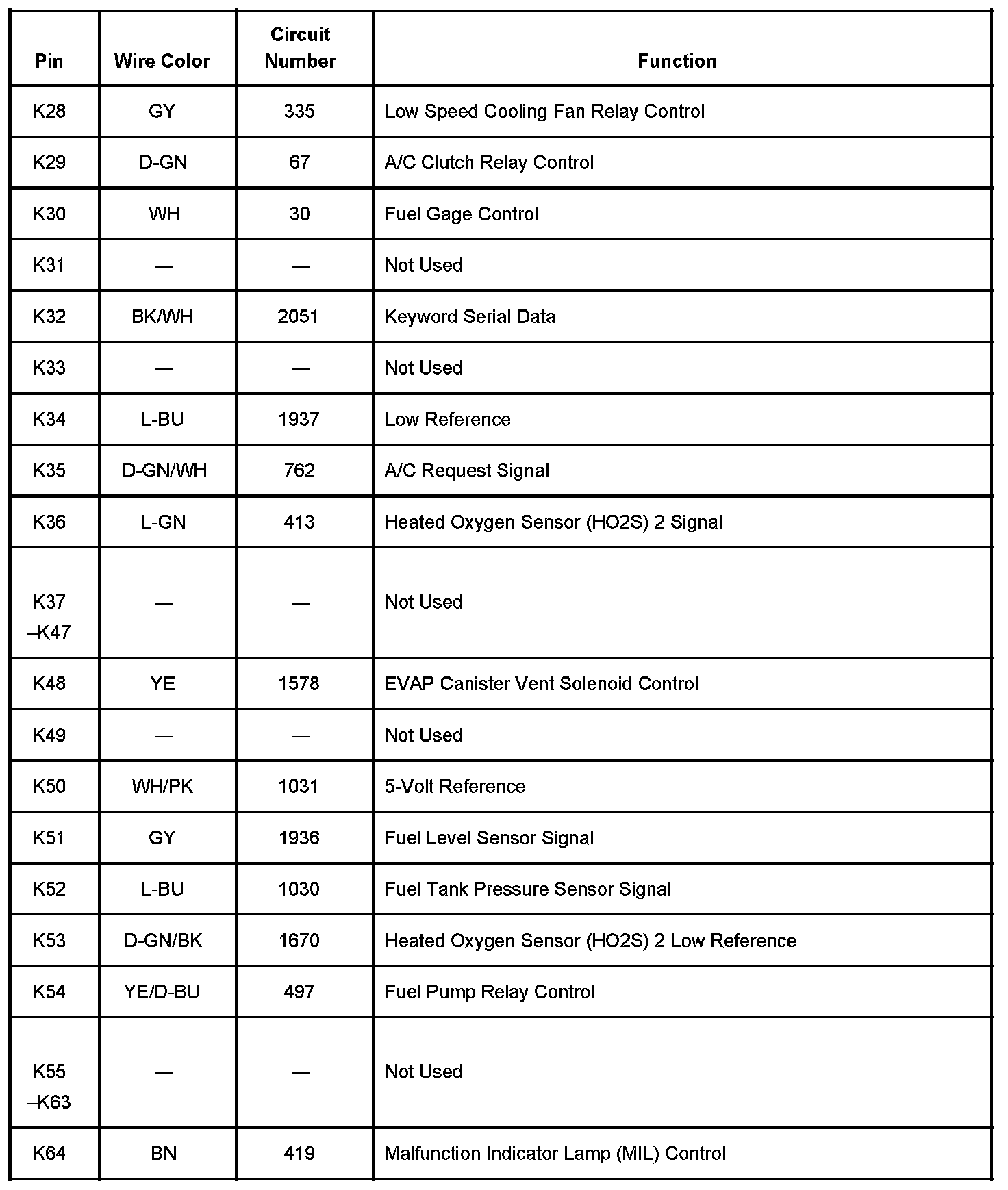

Engine Control Module (ECM) - K Part 2:

Engine Control Module (ECM) - K Part 3:
