Air Bag Control Module

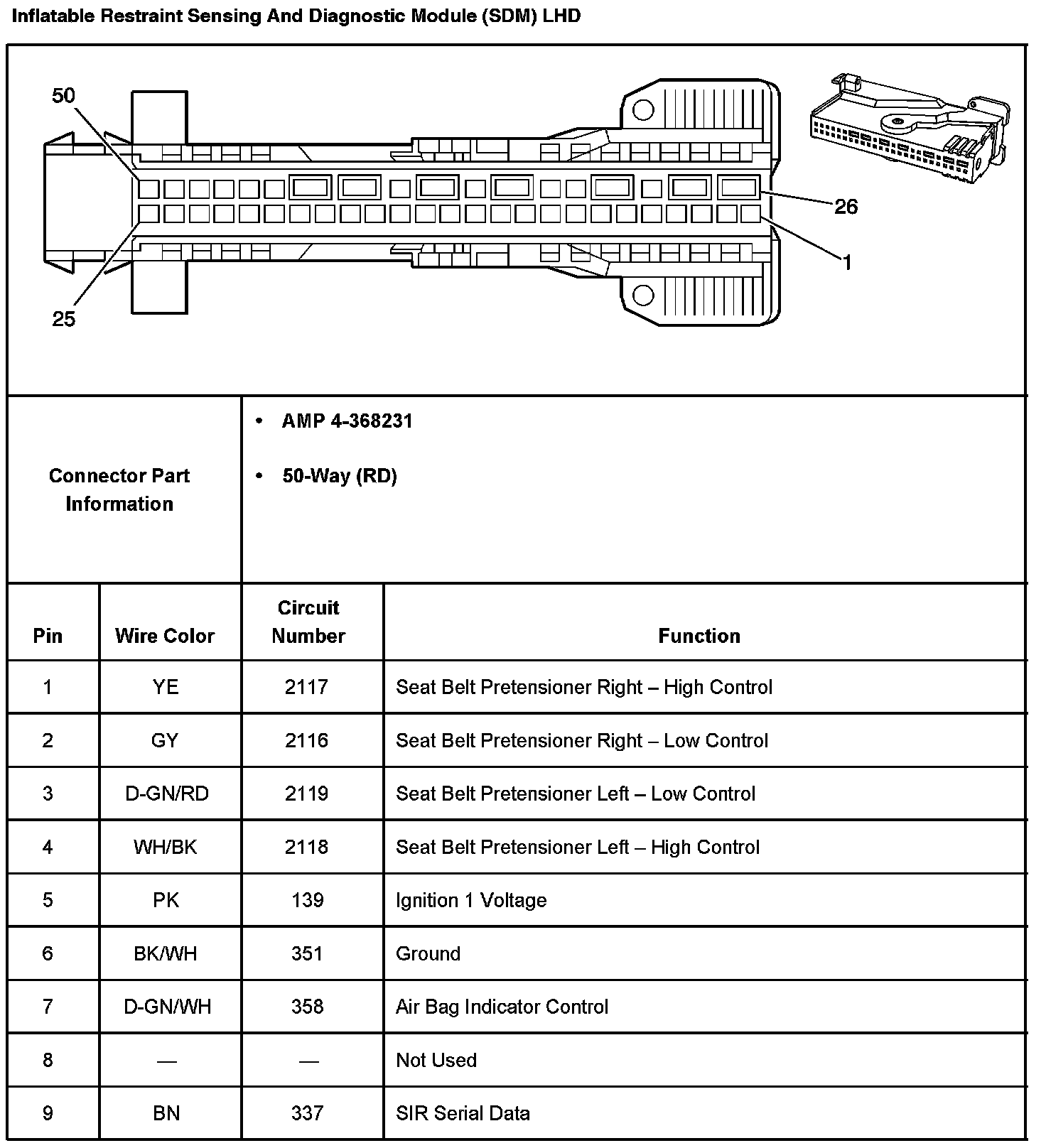

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD Part 1:

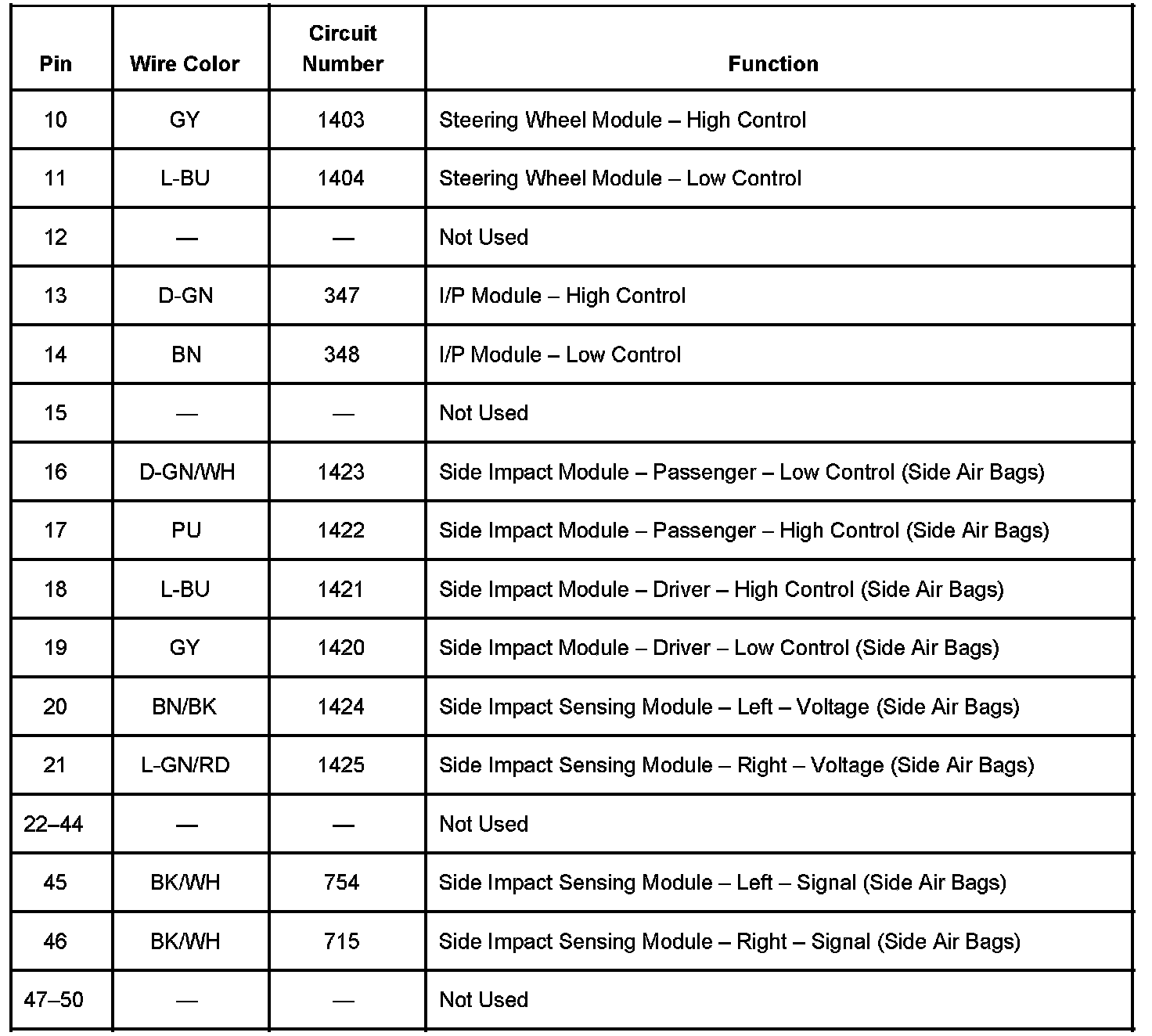

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD Part 2:



Inflatable Restraint Sensing And Diagnostic Module (SDM) RHD Part 1:

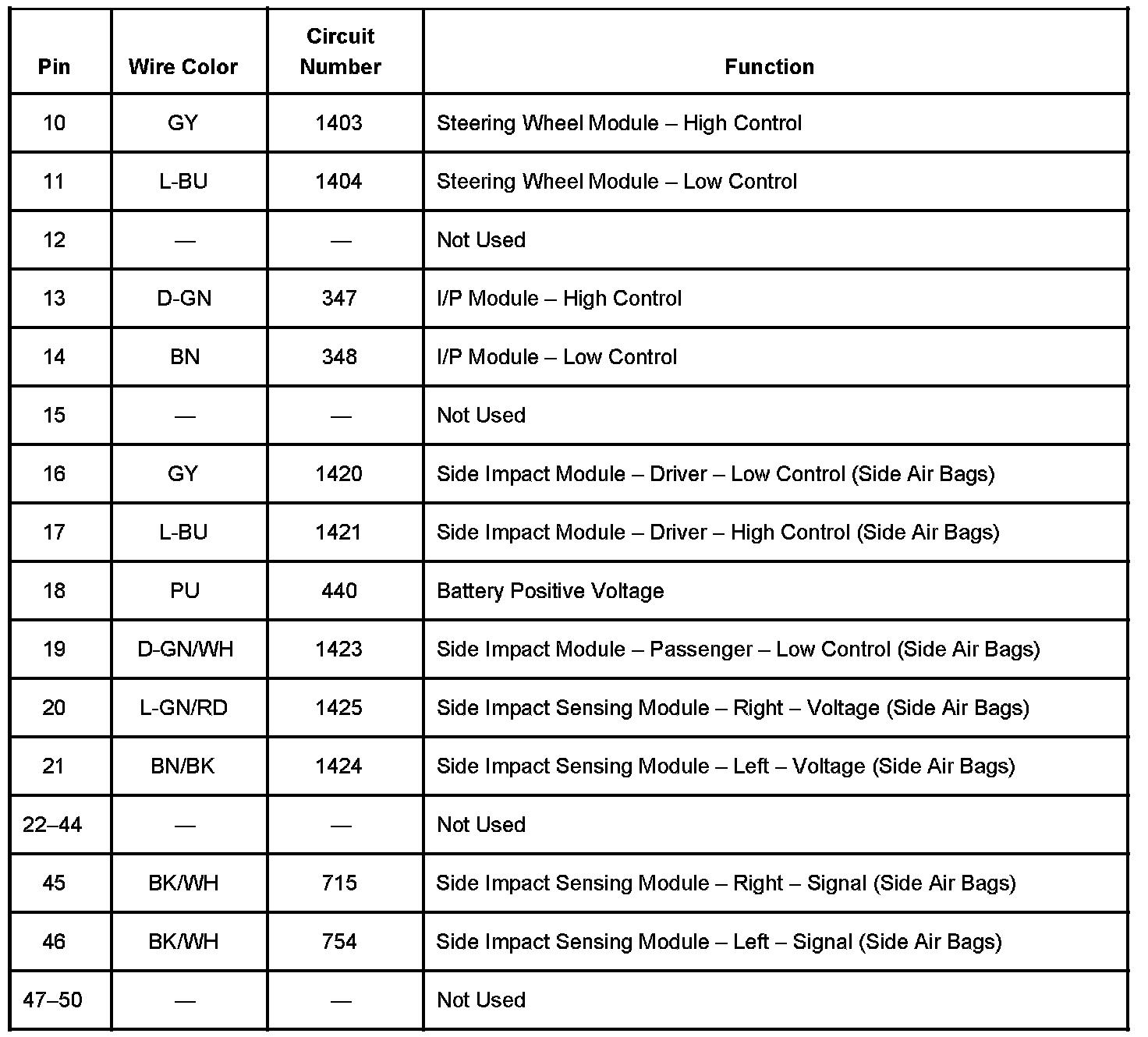

Inflatable Restraint Sensing And Diagnostic Module (SDM) RHD Part 2:
