Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

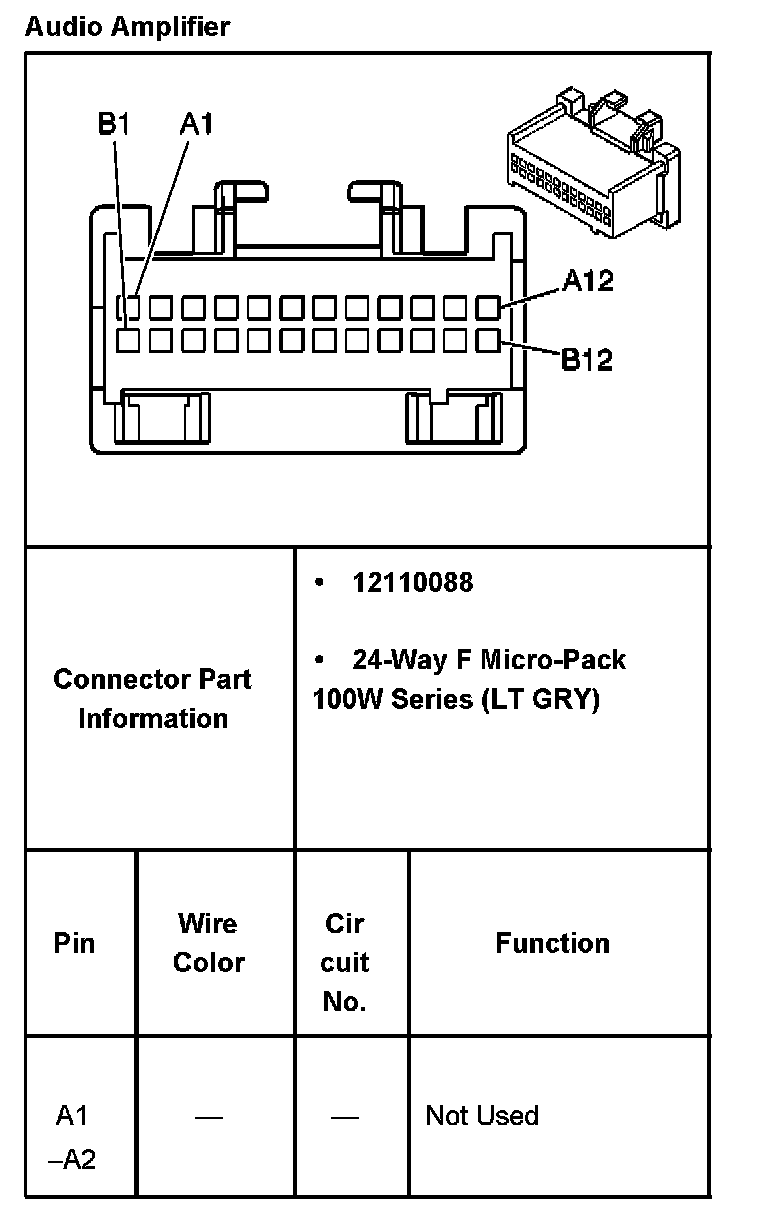

Audio Amplifier Part 1:

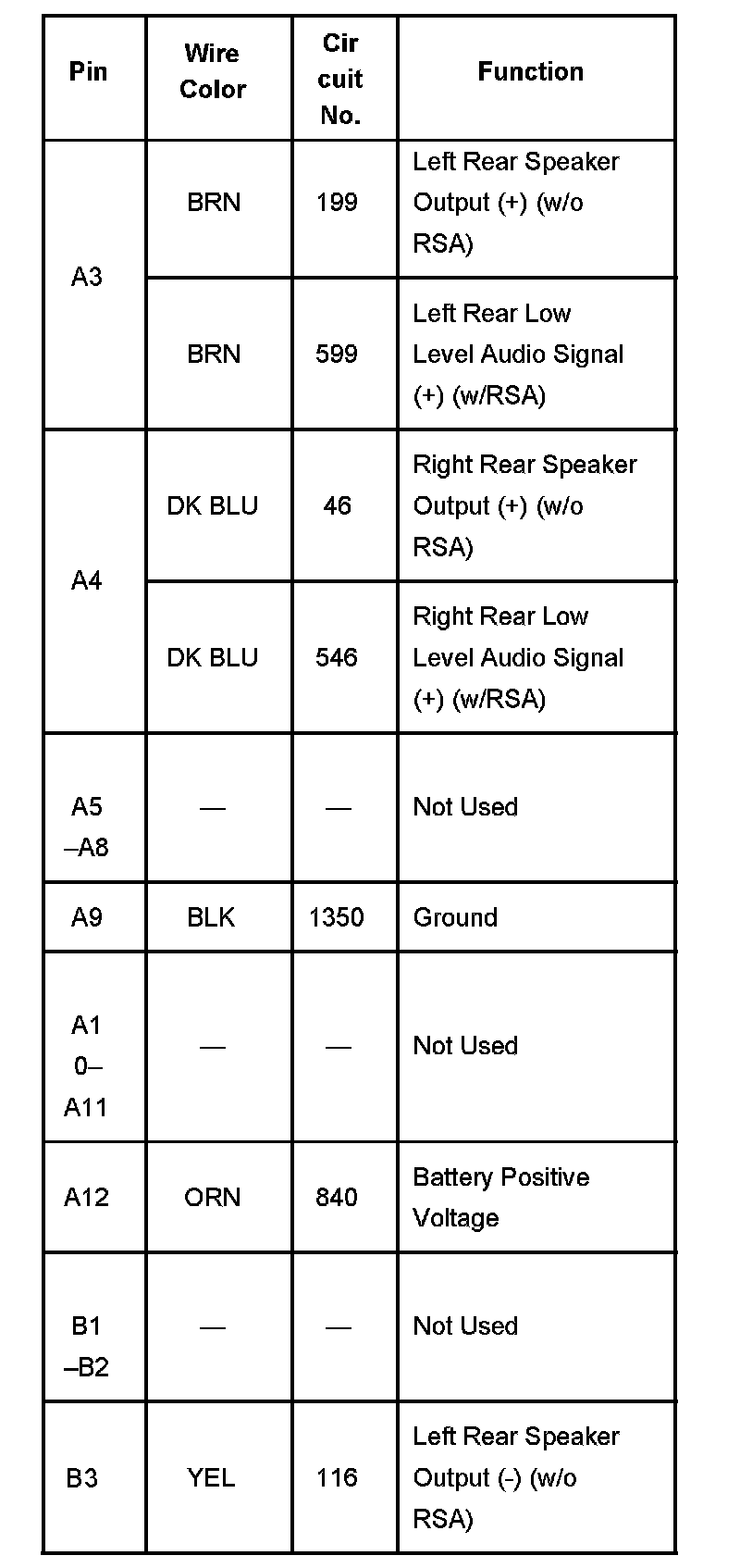

Audio Amplifier Part 2:

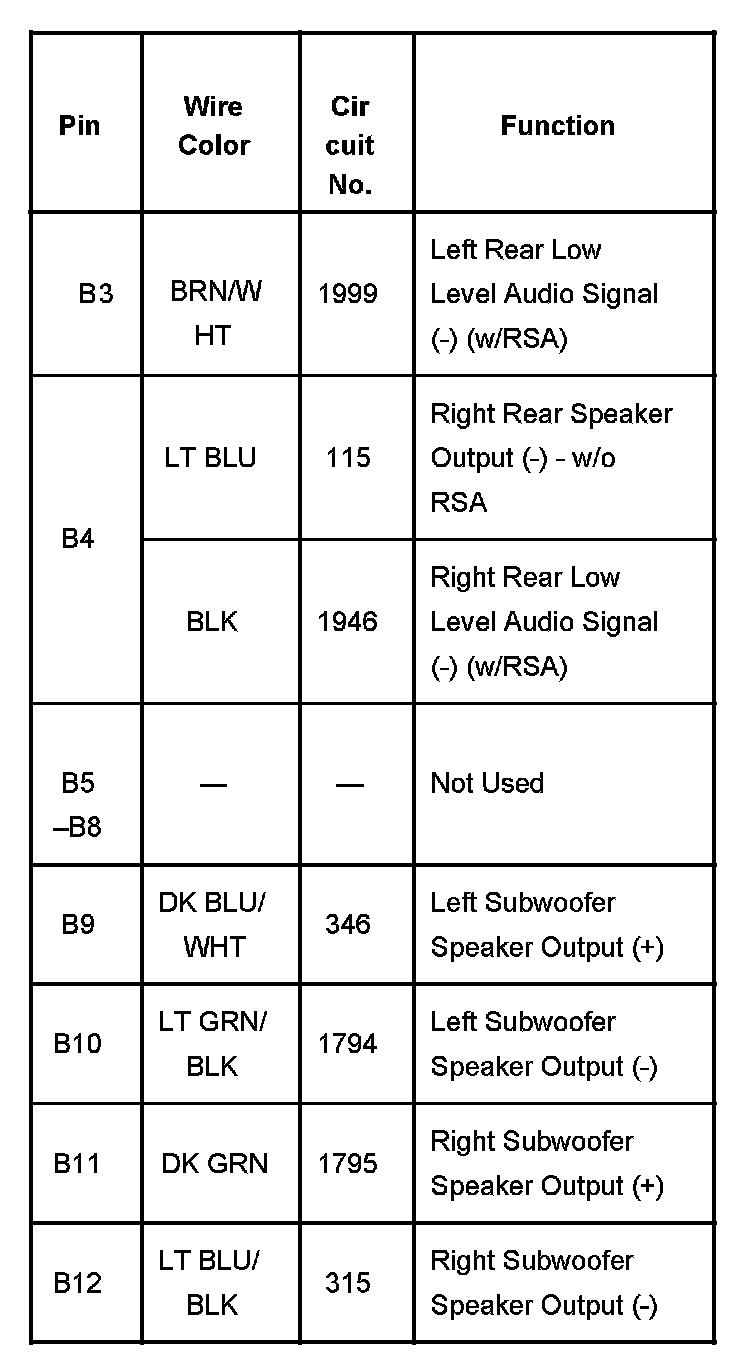

Audio Amplifier Part 3:
