Oil Pressure Sensor: Locations

Locations View:

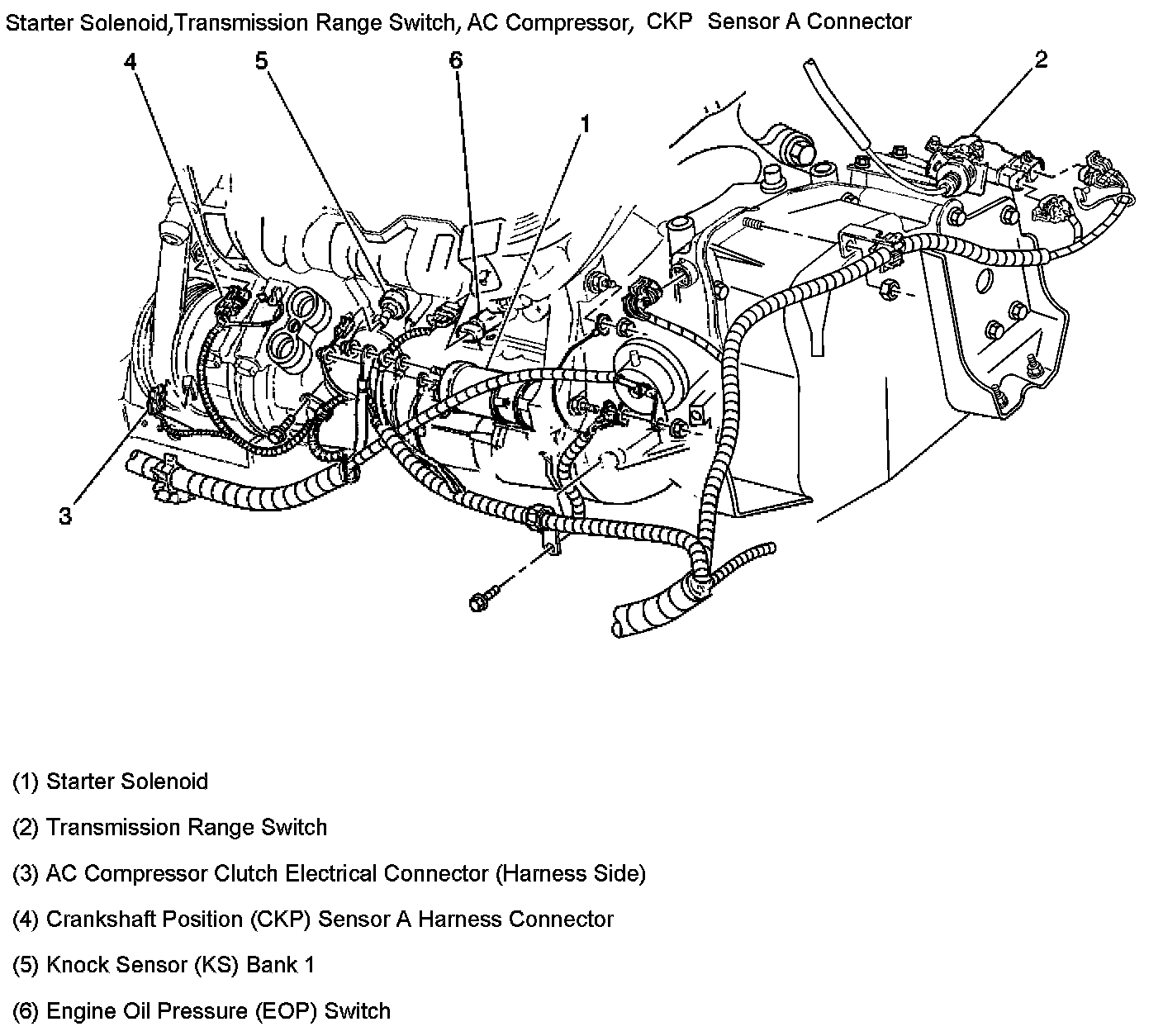

Starter Solenoid, Transmission Range Switch, A/C Compressor And CKP A Connectors:

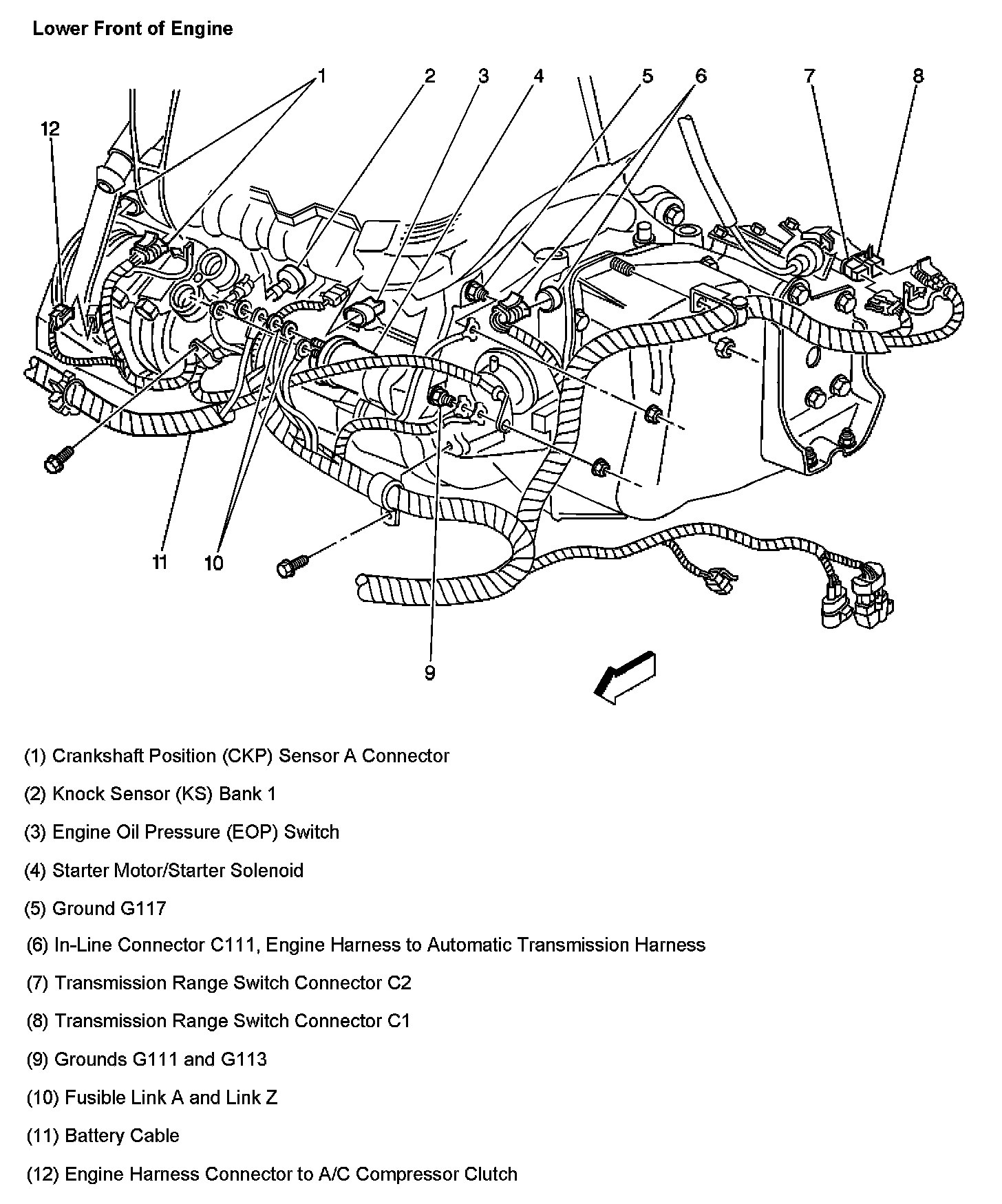

Lower Front Of Engine:
