HVAC Control Module - Auxiliary Connector End View C1

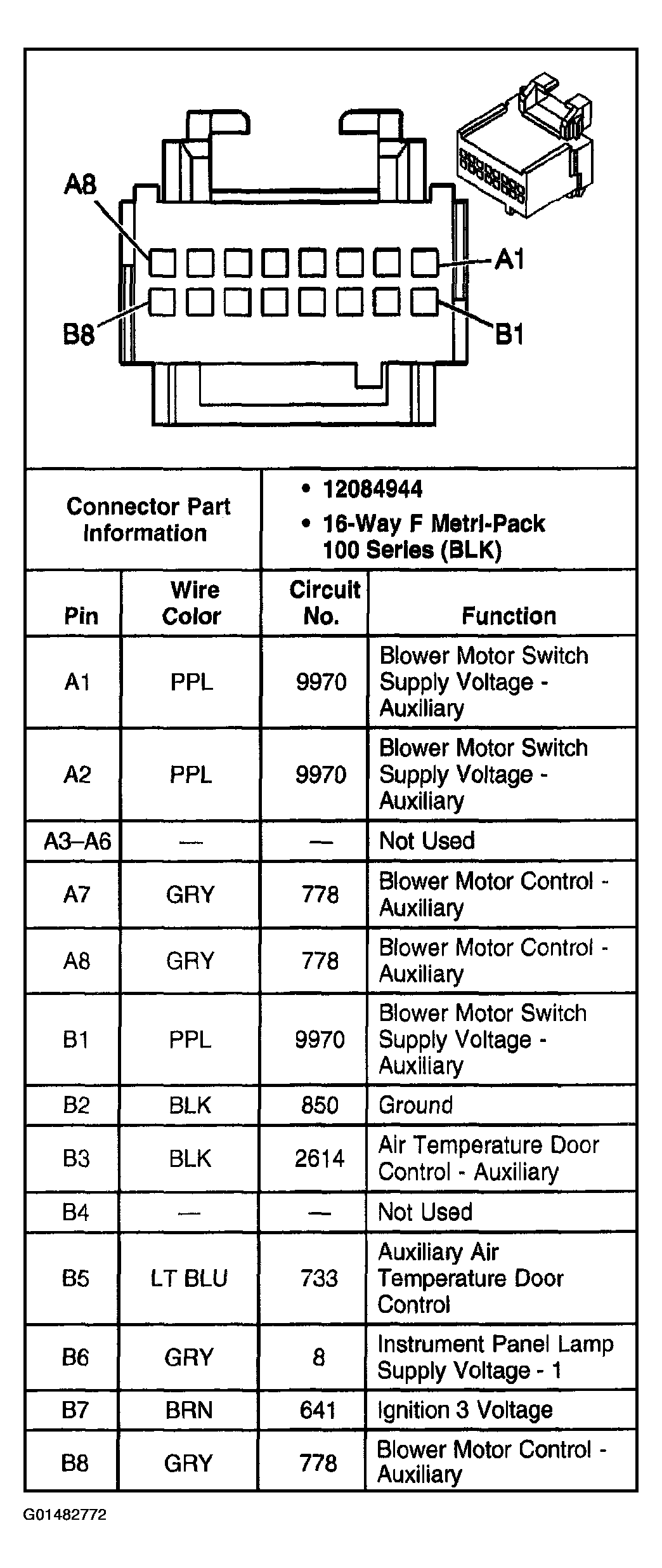

Fig 1: HVAC Control Module - Auxiliary Connector End View C1

G01482772

Courtesy of GENERAL MOTORS CORP.
