Chevrolet
>>
2003
>>
TrailBlazer 2WD V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Engine, Right Front
Engine, Right Front

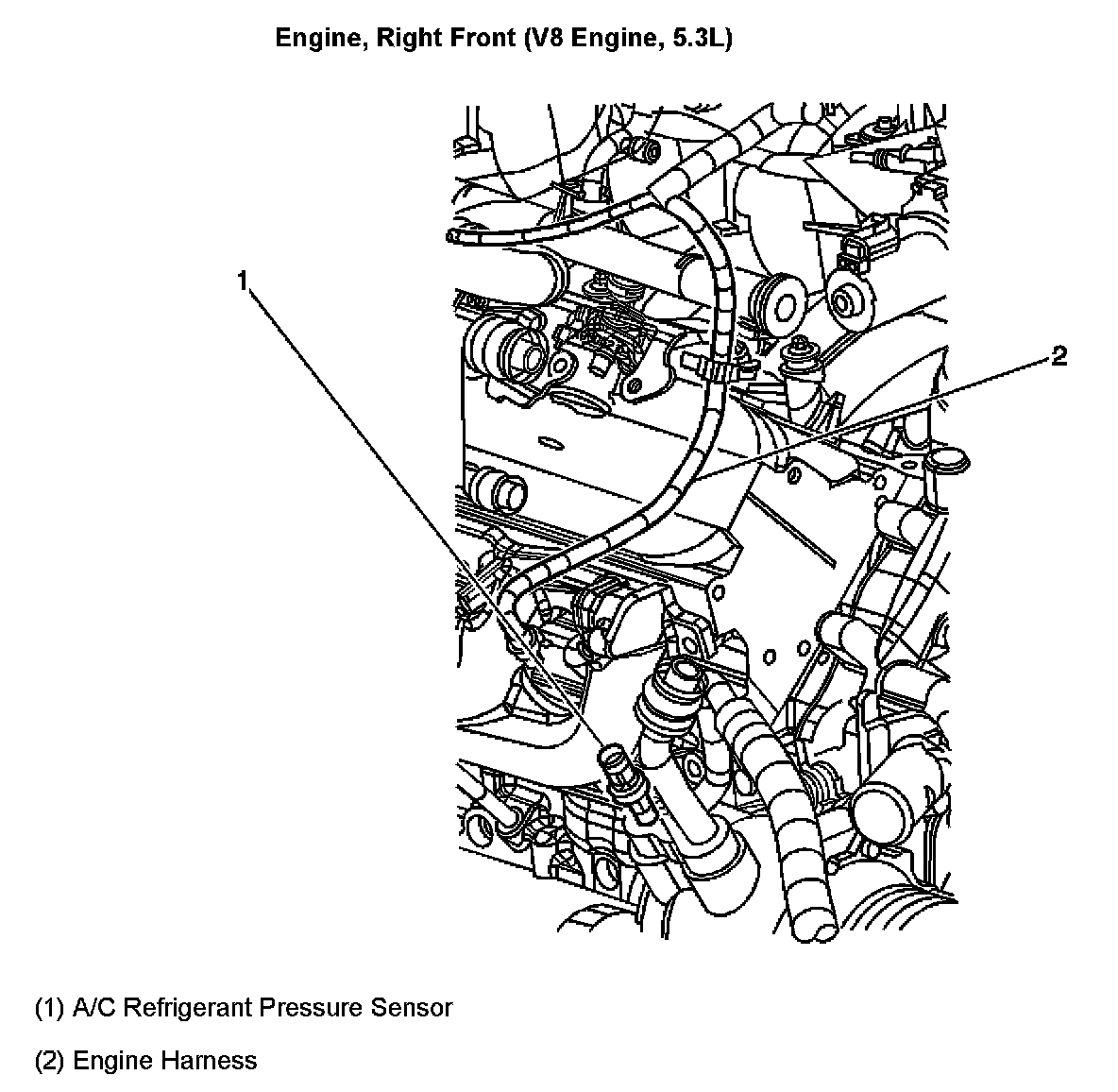

Engine, Right Front:

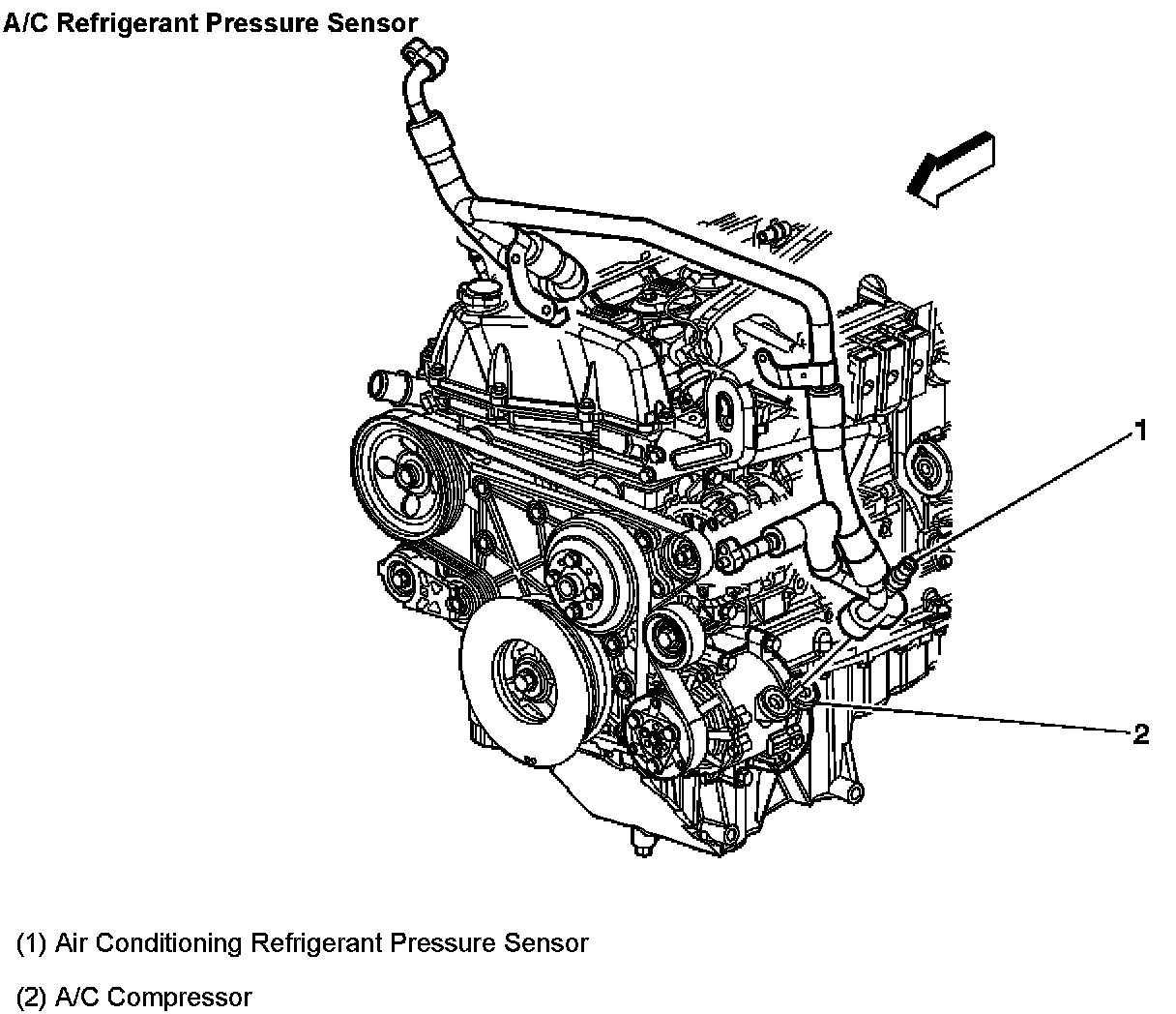

A/C Refrigerant Pressure Sensor (w/Manual - HVAC System):

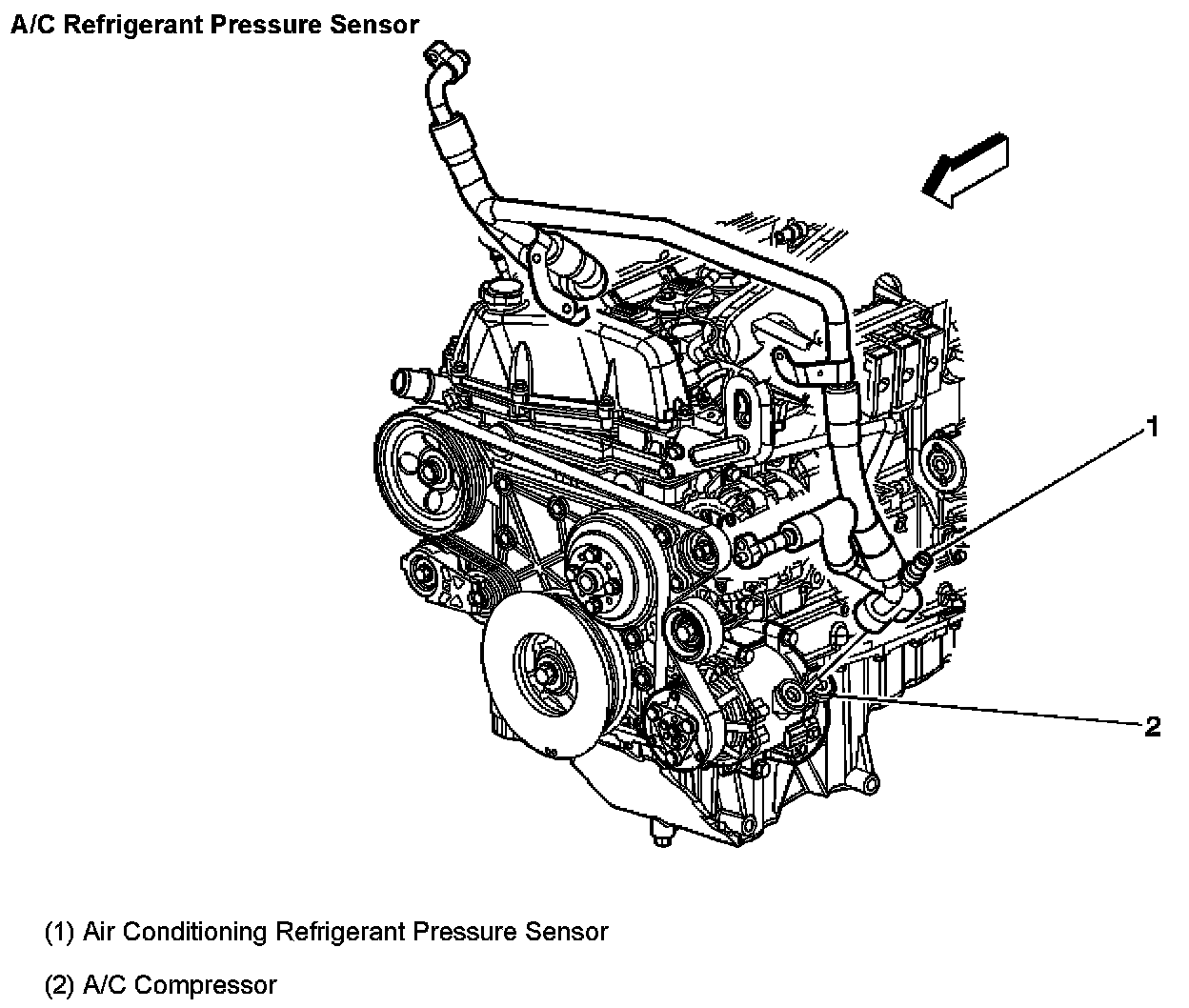

A/C Refrigerant Pressure Sensor (w/Automatic HVAC System):
